Appendix C: Software Installation
C-17
Managing Arrays
Select this option to view array properties, and delete arrays. The following sections
describe the operations Of "Managing Arrays".
To select this option, use the arrow keys and the key to select "Managing
Arrays" from the main menu.
Viewing Array Properties
To view the properties of an existing array:
1. At the BIOS prompt, press Ctrl+A.

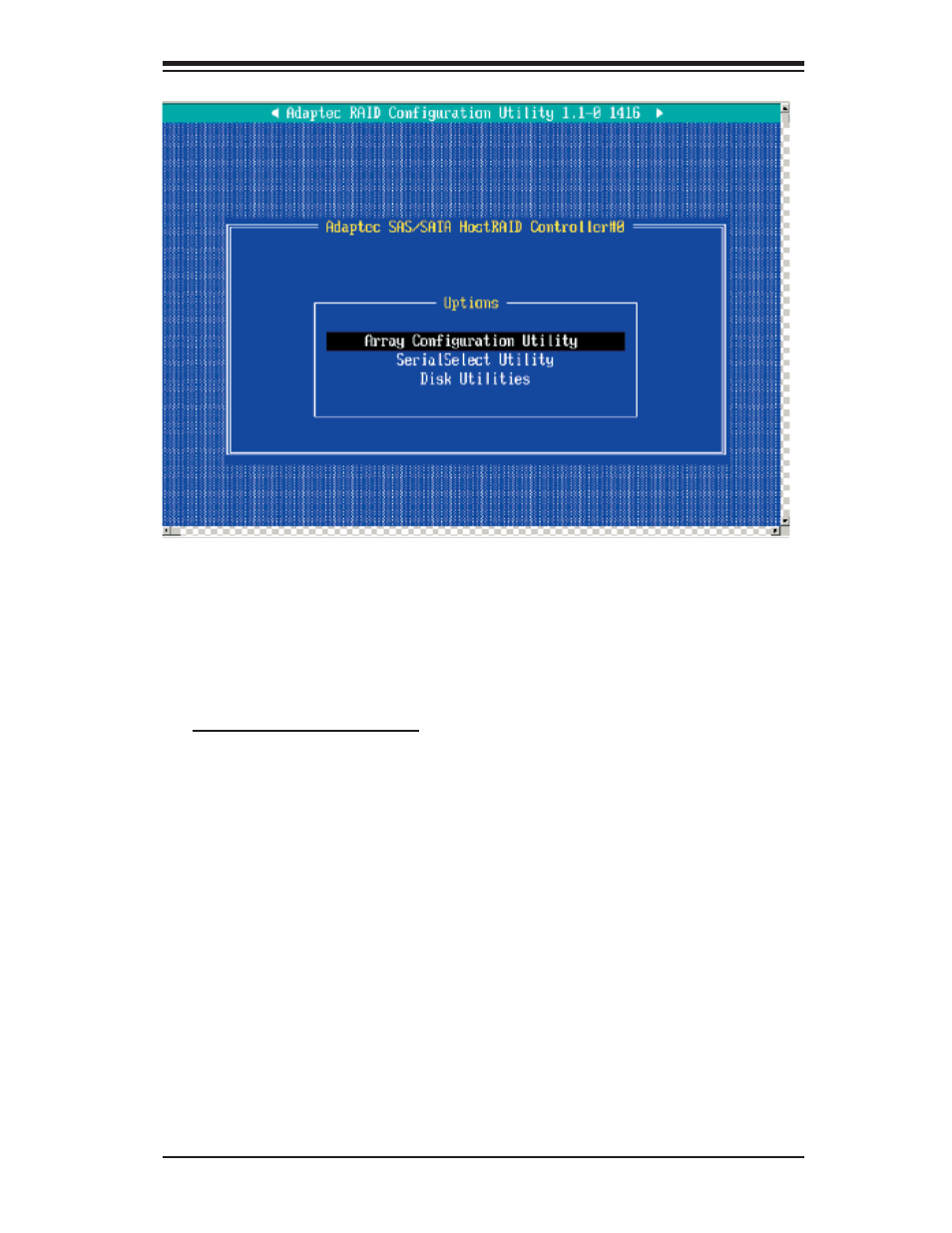

2. From the ARC menu, select Array Confi guration Utility (ACU).
3. From the ACU menu, select Manage Arrays (as shown on the previous screen.)
4. From the List of Arrays dialog box, select the array you want to view and press
Enter.
The Array Properties dialog box appears, showing detailed information on the array.
The physical disks associated with the array are displayed here.
5. Press Esc to return to the previous menu.
