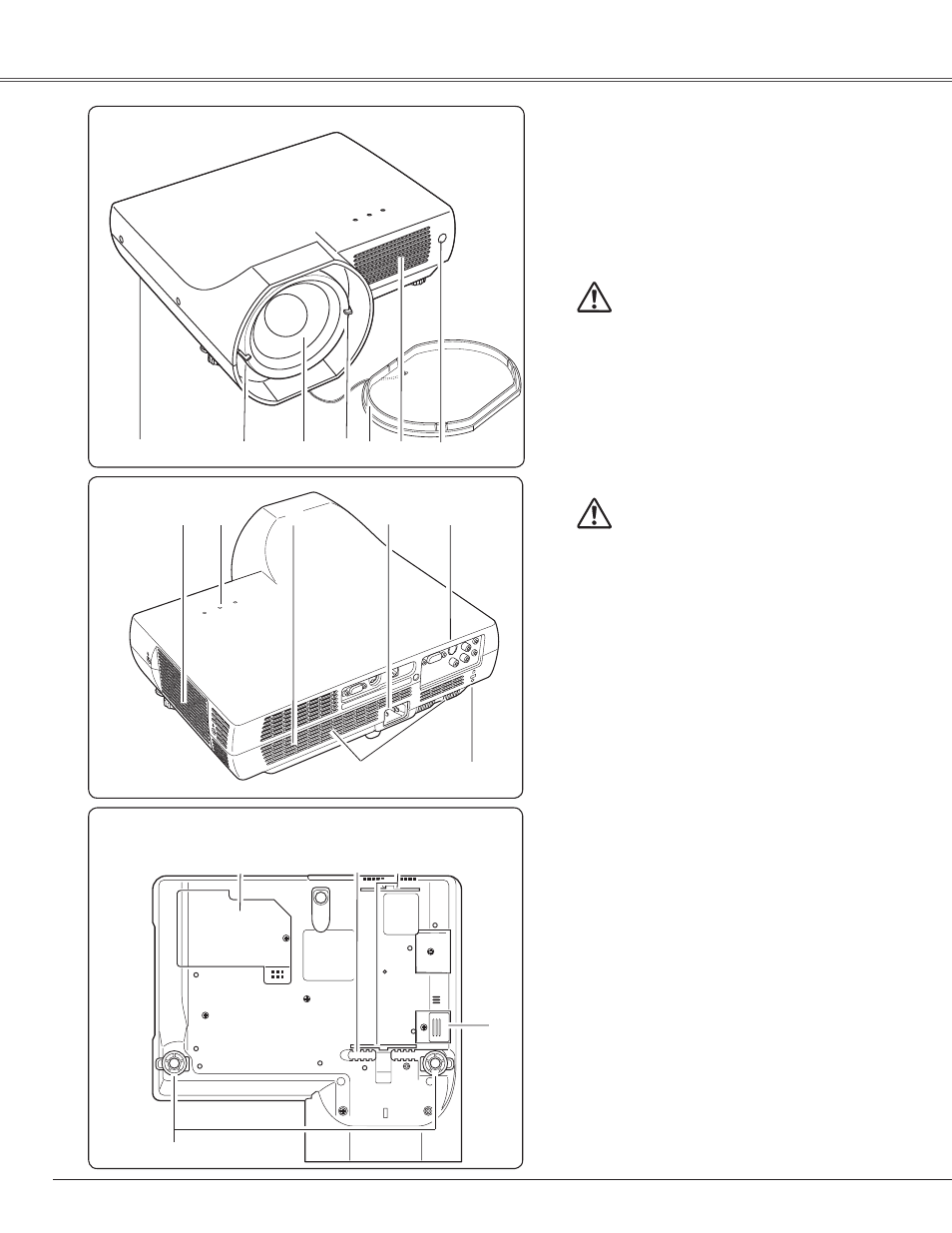

① Antitheft alarm settin� buttons
② Focus Lever
③ Projection Lens
④ Lens Cover
(See p. 5 for attachin�)
⑤ ⑦
⑮
⑫ ⑬
⑩ ⑪ CAUTION
Hot air is exhausted from the exhaust
vent. Do not put heat-sensitive objects
near this side.
③ ⑥ ④ ⑤
Front
⑨
⑧
⑭
CAUTION
Do not turn on the projector with putting
the lens cover on. The light beam may
damage lens cover and result in fire
hazard.
Attach the lens cover while the projector
is not in use to avoid scratching the lens
surface.
⑥ Infrared Remote Receiver
⑦ Indicators
⑧ Speaker
⑨ Air Intake Vent
⑩ Power Cord Connector
⑪ Terminals and Connectors
⑫ Lamp Cover
⑬
Air Filters
⑭ Battery Compartment
(For Antitheft alarm function)
⑮ Adjustable Feet
② ①
⑤ Exhaust Vents

 Kensin�ton Security Slot
This slot is for a Kensington lock used to
deter theft of the projector.
* Kensington is a registered trademark of ACCO
Brands Corporation.
