6.1 Connecting the Cables to the Server

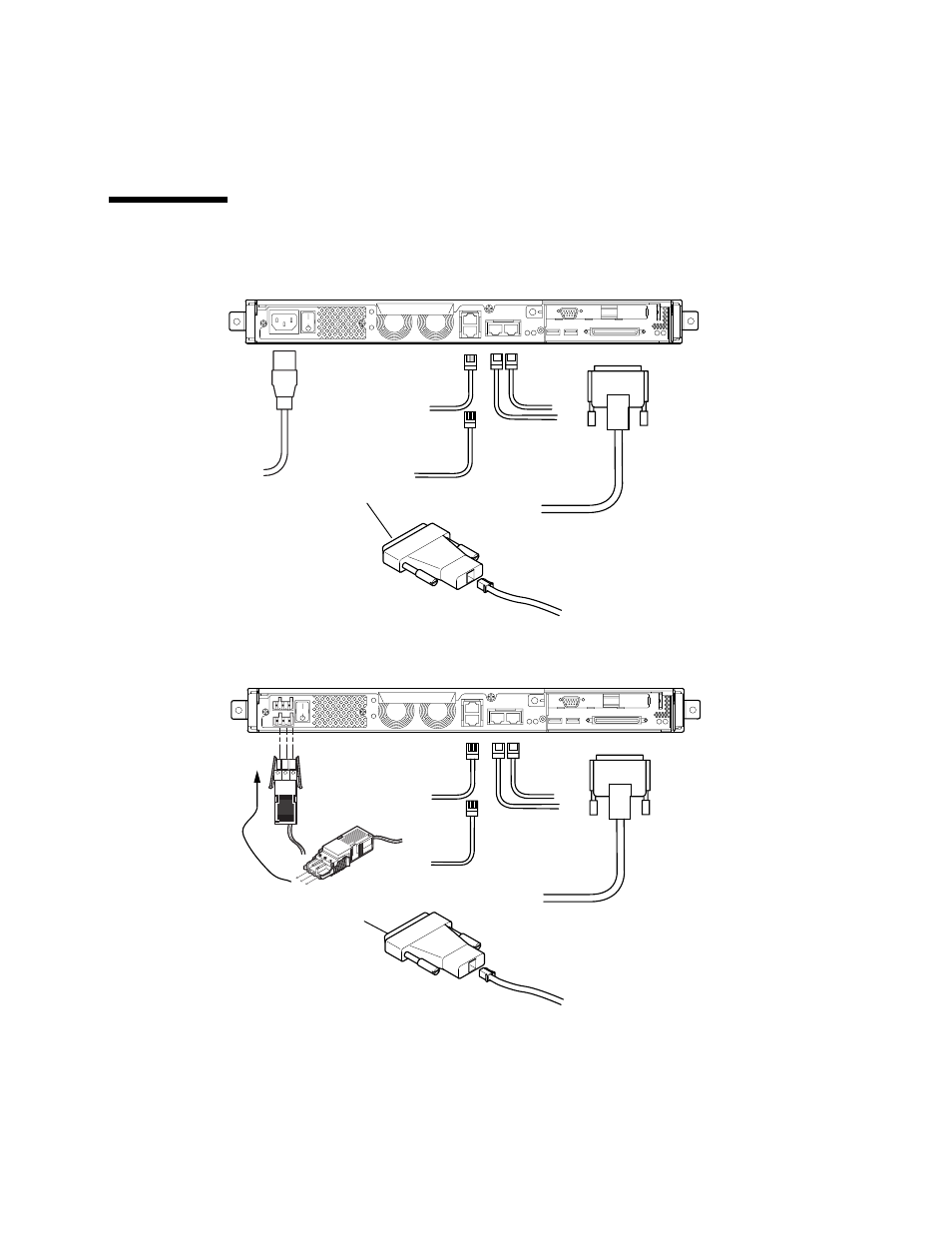

FIGURE 6-1 Connecting the Cables to the Sun Fire V120 Server
FIGURE 6-2 Connecting the Cables to the Netra 120 Server
AC power
cable
Ethernet
links
Serial
links
DB-25 adapter DB-25 adapter
SCSI adapter
DB-25 adapter
DC power
cable
Ethernet
links
Serial
links
SCSI adapter
