Chapter 11
Replacing a Server or Replacing Individual Components
11-13
8. Unplug the power cable for Fan 3 (see
) and undo the two screws that
fasten the ducting assembly to the chassis.

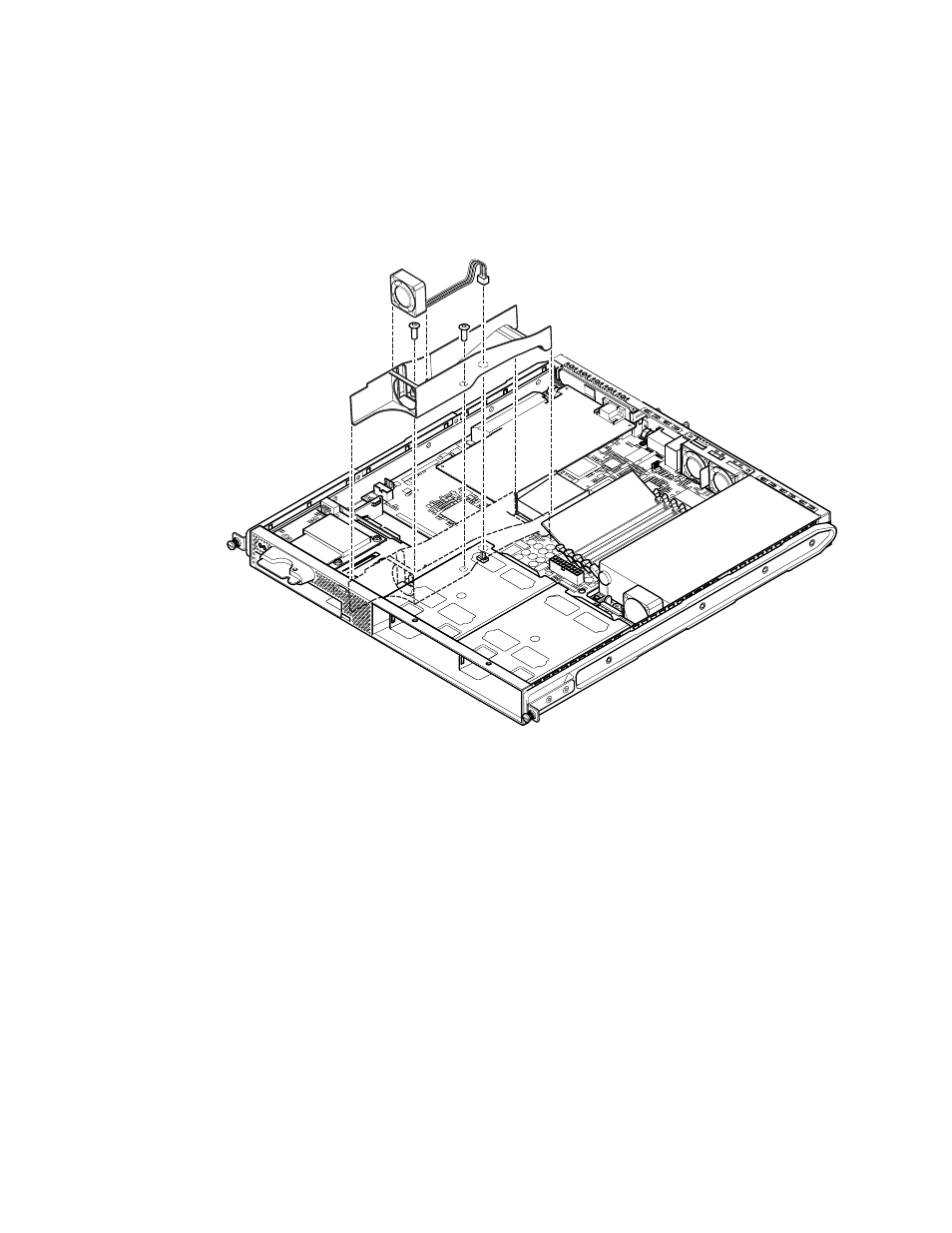

FIGURE 11-6
Unplugging and Removing the Fan 3 Assembly
9. Pull the fan and ducting assembly away from the chassis (see
).
10. Unscrew the system board protection/support block (between the PSU and Hard
Disk Drive bay 1) and slide it back as far as the PSU (see
).
11. Unscrew and remove the PCI card slide retainer (see
).
12. Unscrew all system board fixing screws (see
).
13. Unscrew the SCSI pillars on the back panel (see
14. Slide the system board towards the front of the chassis so that the SCSI, Ethernet
and Serial connectors come free from the chassis.
15. Carefully lift out the system board.
