4-6 Sun Fire V120 and Netra 120 Server User’s Guide • December 2001
4.3 Identifying Server Components

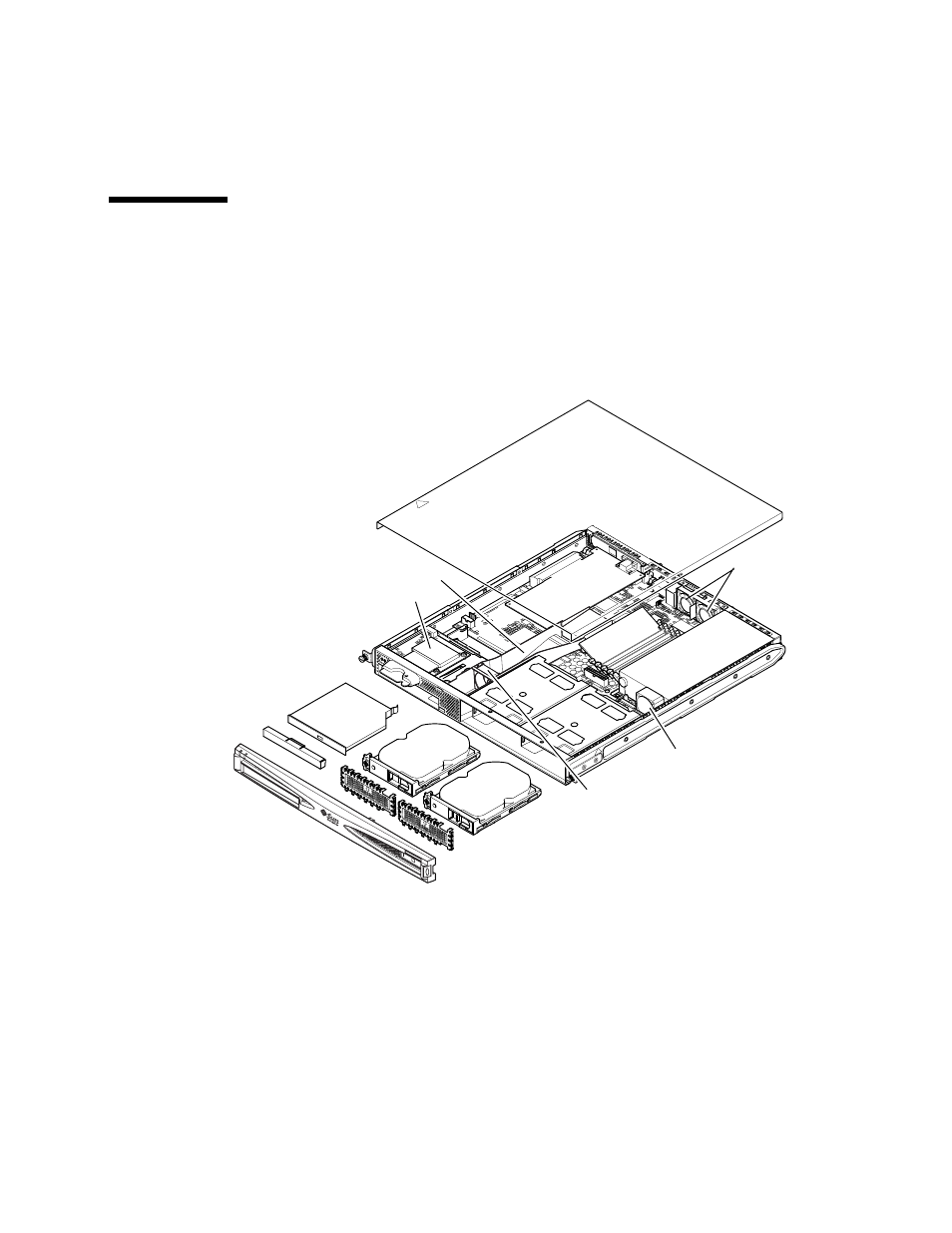

FIGURE 4-4 Components of the Sun Fire V120 and Netra 120 Servers
The major components of the Sun Fire V120 and Netra 120 servers, and the location
of each component, are shown below, in
FIGURE 4-4 :
1. PCI card (optional)
2. System configuration card reader
3. Top cover
4. Hard Disk Drive
5. Optional DVD or CD-ROM drive
6. Filler panel
7. Front bezel
8. Grills
9. Fan 3 ducting
10. DIMM
11. Power Supply Unit
12. Fans 1 and 2
13. Fan 3 (CPU)
14. Fan 4
1
2
3
4
5
6
8
9
10
11
12
14
13
7
