Page 31

Chapter 1
Introduction
1-7
1.5
Back Panel

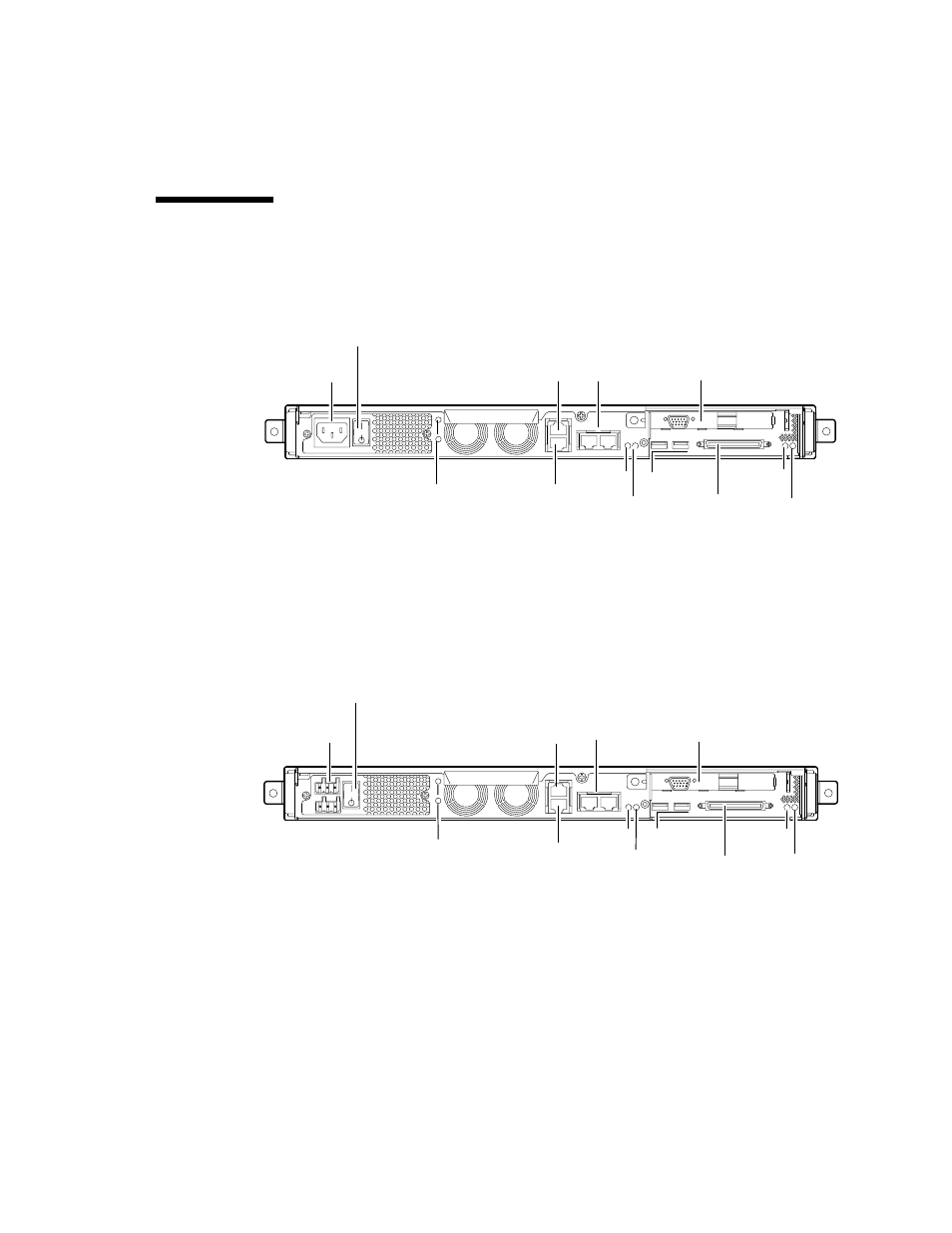

shows the components on the Sun Fire V120 server’s back panel.
FIGURE 1-4
The Back Panel of the Sun Fire V120 Server
shows the components on the Netra 120 server’s back panel. Except for
the power inlets, they are identical to the components on the back panel of the Sun
Fire V120.
FIGURE 1-5
The Back Panel of the Netra 120 Server
Power (On/Standby) switch
Optional PCI card
USB ports
SCSI port
Link 0
Link 1
Fault
Power
Grounding studs
Serial B port
Serial A/LOM port
Ethernet ports
Power (On/Standby) switch
Optional PCI card
USB ports
Link 0
Link 1
Fault
Power
Grounding studs
Serial B port
Serial A/LOM port
Ethernet ports
SCSI Port
DC power inlet
AC power inlet
