Step 3.
Installing the Transfer Belt and Toner
Cartridges
1

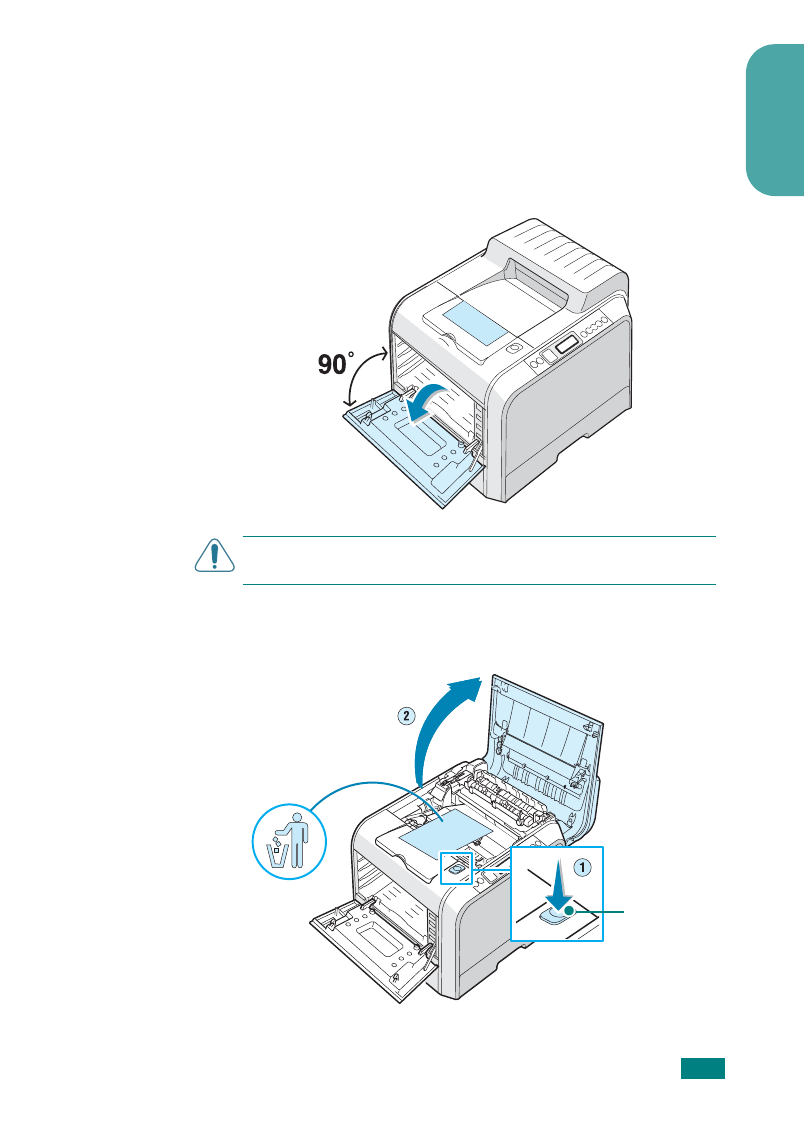

Using the handle, completely open the left cover until it is at
right angles to the main frame.
C
AUTION
: If the left cover is not completely open, the top cover
release button will remain locked.
2
Press the top cover release button to unlatch the top cover and
open it all the way. Remove the label on the transfer belt.
Top cover
release
button
