CHAPTER 7
Maintaining the ERX System

7-10

ERX-1400 Series

Figure 7-5

and

Figure 7-6

show the location of the fan tray in the

ERX-1400 series.

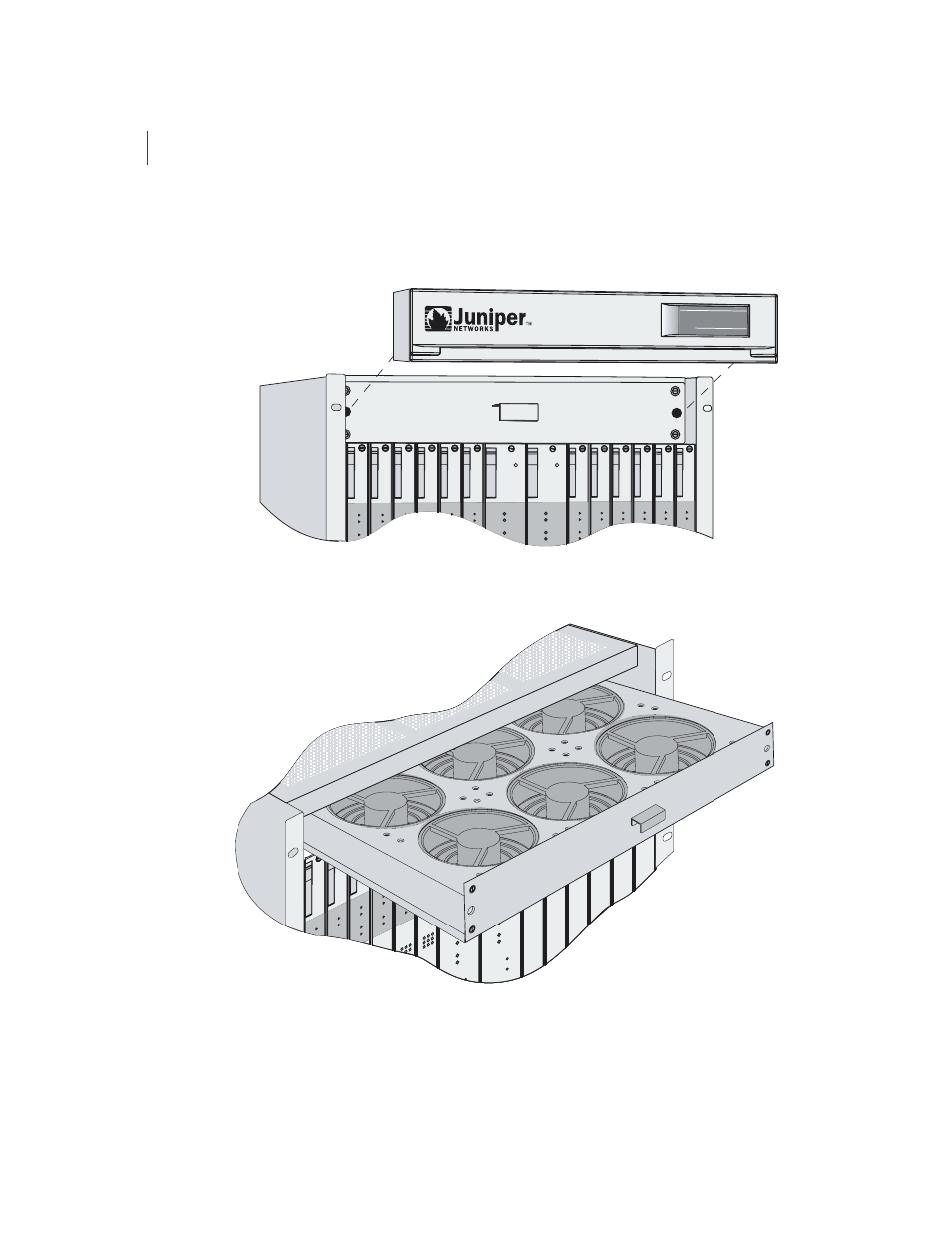

Figure 7-5 Location of fan tray in ERX-1400 series

Figure 7-6 Fan tray in ERX-1400 series
