APPENDIX D
Preparing Your Site D-6

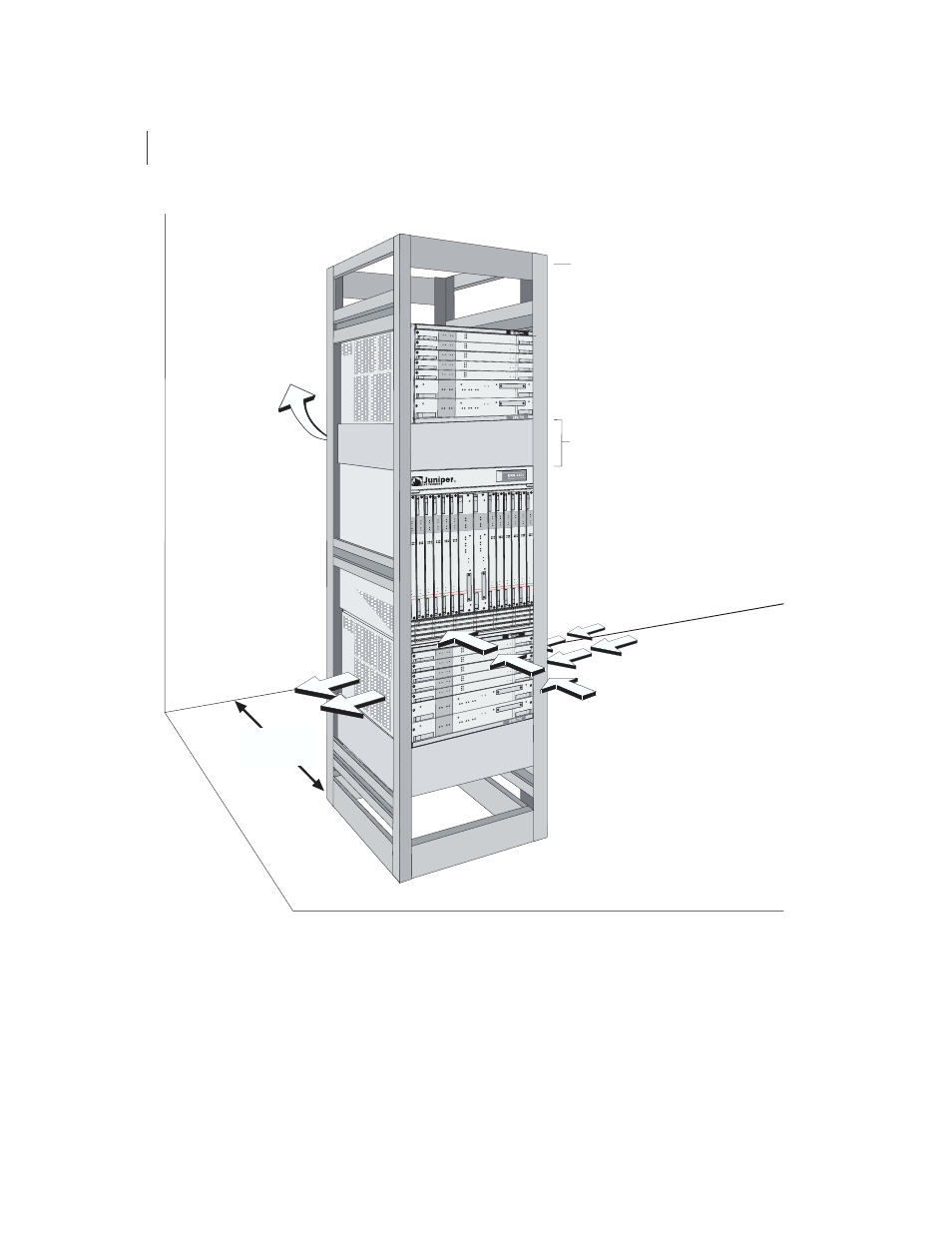

Figure D-2 ERX-700 series and ERX-1400 series systems installed in 84-inch rack
OC3
SRPSRP
CT3
SRPSRP
CT3
CT3
CT3
O C 3
S R P S R P
C T3
S R P S R P
C T3
C T3
C T3
OC3
CT3 SRP SRP CT3 CT3 CT3 CT3 CT3 SRP SRP CT3 CT3 CT3 CT3 OC3
7-ft. (2.1 m) rack
Plenum for
ERX-1400
series
Air output
ERX-1400
series
Air intake
ERX-700
series
Air output
ERX-700
series
3- to 4-ft.
(0.9 to1.2 m)
access space
Air intake
ERX-1400
series
