Replacing SFPs on GE I/O Modules
ERX Edge Routers
7-7
Installing SFPs
To install SFPs:
1
Put the antistatic wrist strap on your wrist, and connect the strap to
the ESD grounding jack on your system.
2
Identify the following items on the SFP (see Figure 7-3 ):
• The connection circuitry on the base
• The cable connectors on the front
The cable connectors will be protected by a dust cover.

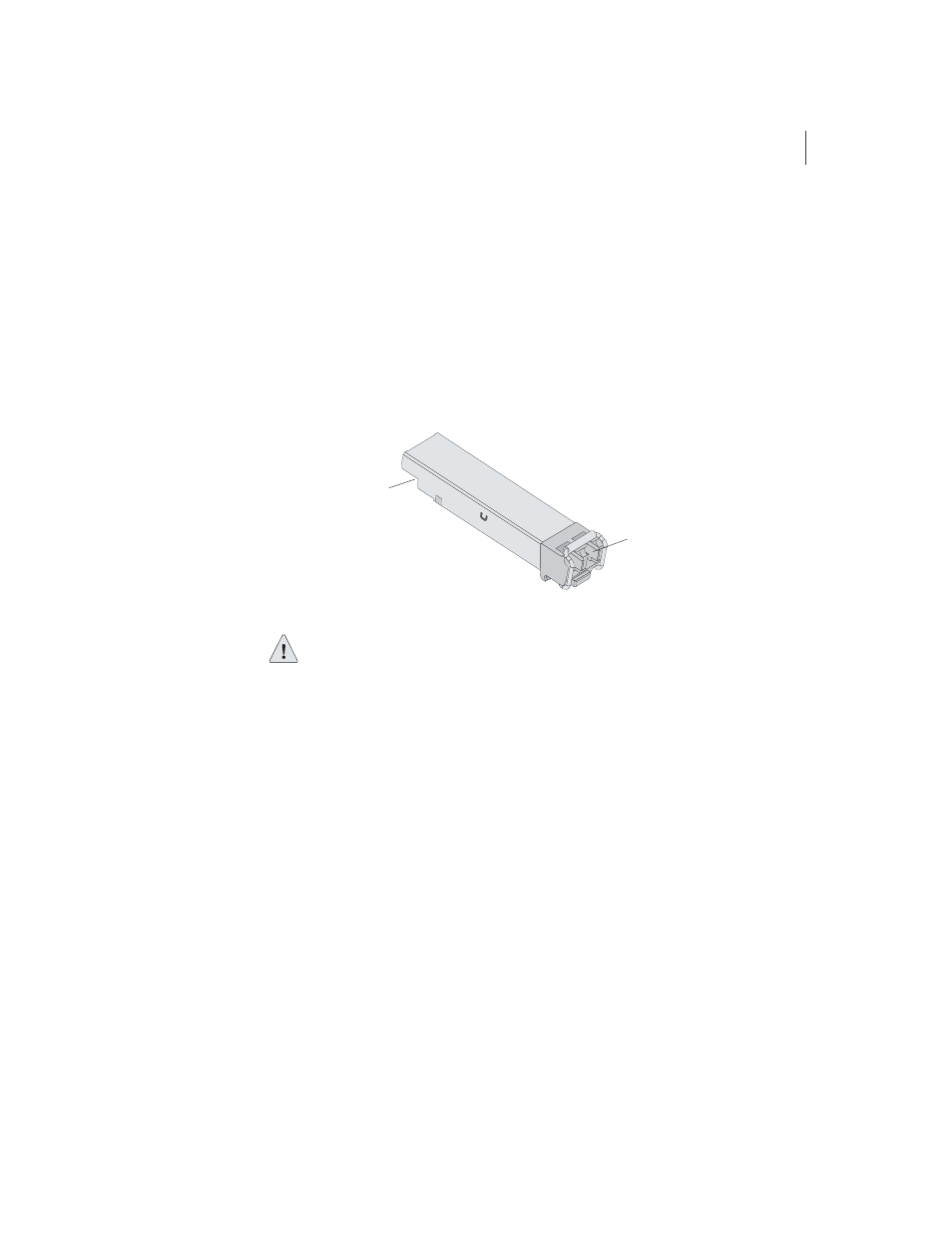

Figure 7-3 Example of SFP
Caution: Be sure to position the SFP correctly before you install it.
3
Hold the SFP so that:
• The connection circuitry is adjacent to the TX and RX markings
on the module’s faceplate.
• The front will be visible when you install the SFP.
For a picture of the correct orientation, see Figure 7-4 .
Cable connectors
on front
Connection
circuitry on
base
