SRP I/O Module
ERX Edge Routers
C-3

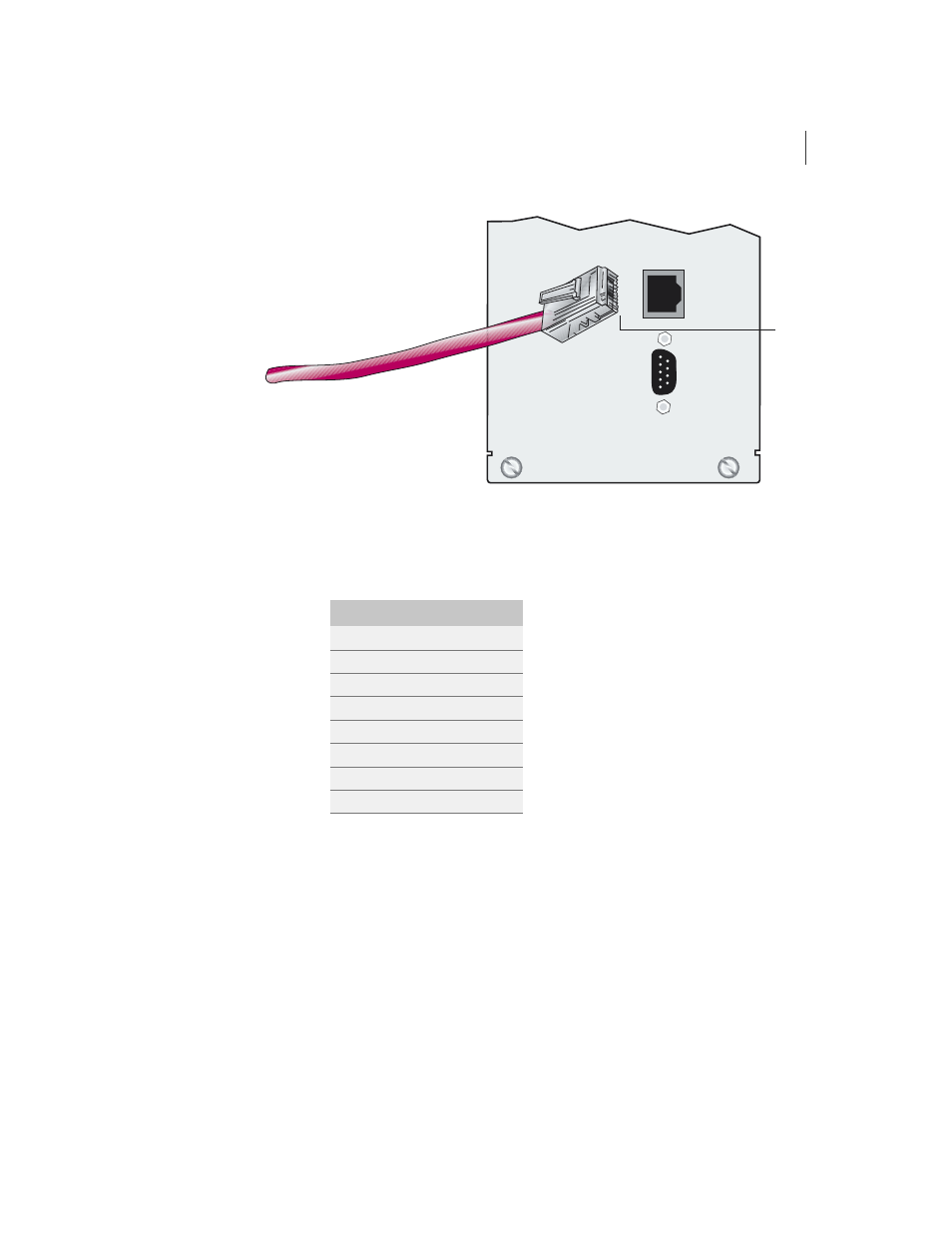

Figure C-2 SRP I/O module Ethernet port
Table C-2 lists the pinout for the Ethernet cable’s RJ-45 connector.
To facilitate connecting the system to a terminal, the system is shipped
with one of each of the following cable adapters:
• DB-9 female to RJ-45 female crossover null modem adapter
• DB-9 female to RJ-45 female straight-through adapter
CONSOLE
10/100
BASE T
RS-232
PIN 8
:
:
:
PIN 1
RJ-45
Table C-2 SRP I/O module – RJ-45 connector pinout
Pin Signal
1 TX +
2 TX –
3 RX +
4 n/c
5 n/c
6 RX –
7 n/c
8 n/c
