CHAPTER 3
Installing ERX Modules 3-2

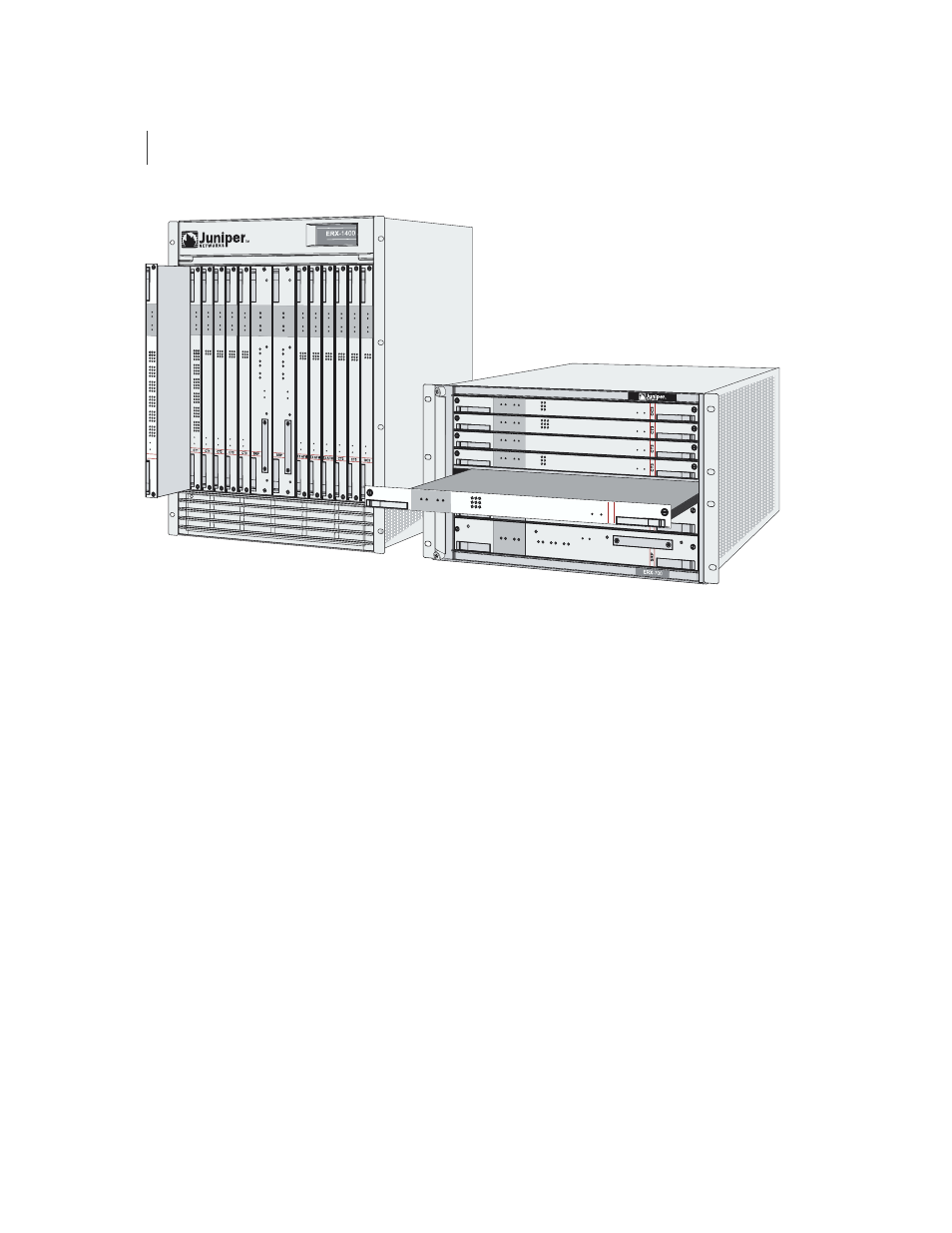

Figure 3-1 Orientation of line modules in the ERX-700 series and ERX-1400 series
For details about available line modules, see Appendix B, Module
Specifications .
Slot Groups
The slots in the ERX-700 series ’ and the ERX-1410 system’s chassis are
divided into groups. The number of groups and number of slots per
group depend on the system. There are no slot groups in the ERX-1440
system.
Slot Groups for the ERX-1410 System
A slot group in the ERX-1410 system comprises three adjacent chassis
slots. The groups for the ERX-1410 system consist of the following slots
(
Figure 3-2 ):
• Slot group 1 – slots 0 through 2
• Slot group 2 – slots 3 through 5
• Slot group 3 – slots 8 through 10
• Slot group 4 – slots 11 through 13
ERX-700 series ERX-1400 series
