CHAPTER 3
Installing ERX Modules 3-12

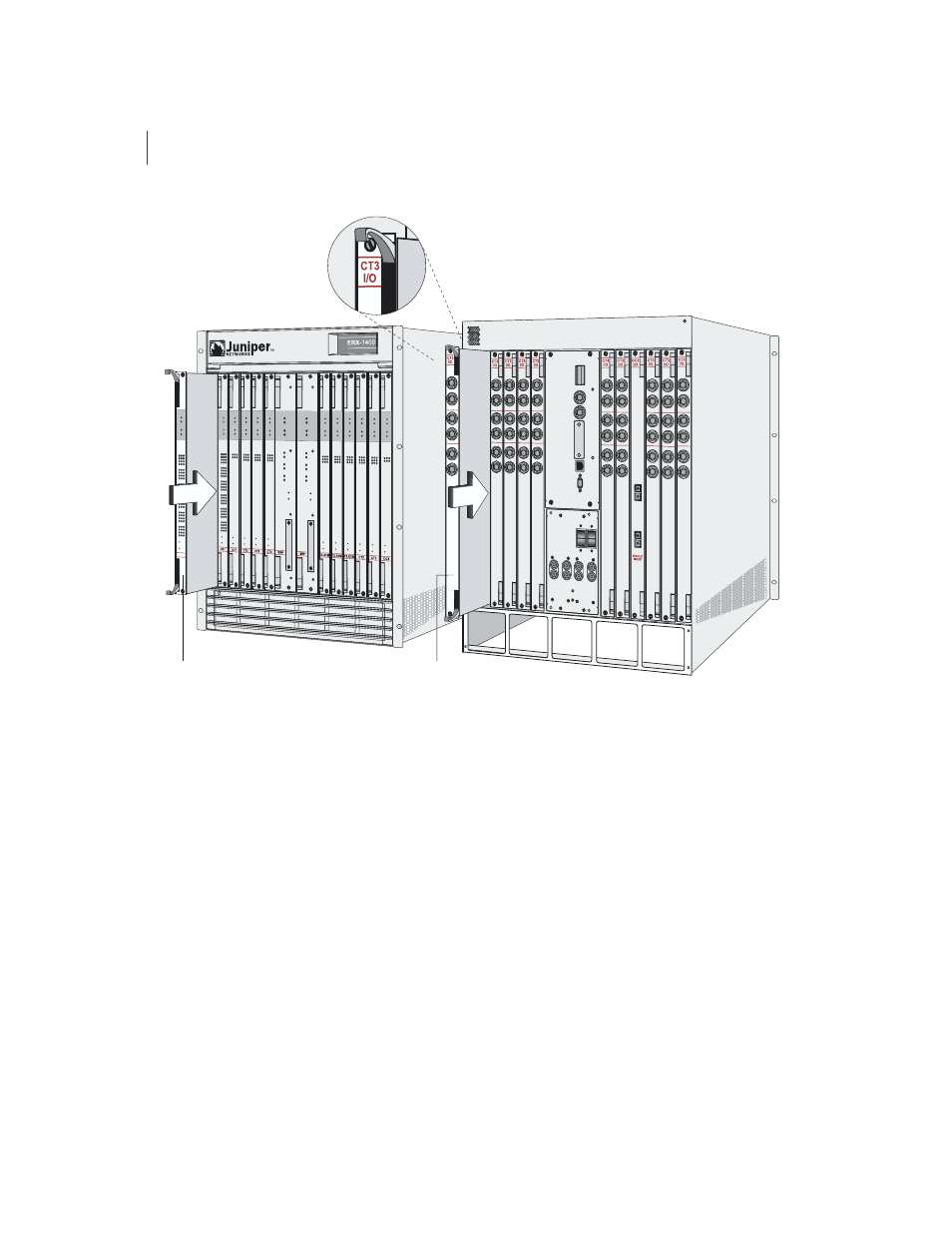

Figure 3-9 Installing a module in the ERX-1400 series
9 Insert the module into the midplane by simultaneously depressing
both ejectors (as shown in
Figure 3-7 ) and exerting forward pressure
on the module.
10
Tighten the module’s captive screws using a Phillips screwdriver.
Turn both screws several times before tightening them completely to
allow the module to sit correctly.
Line Module I/O Module
Ejector in open position
