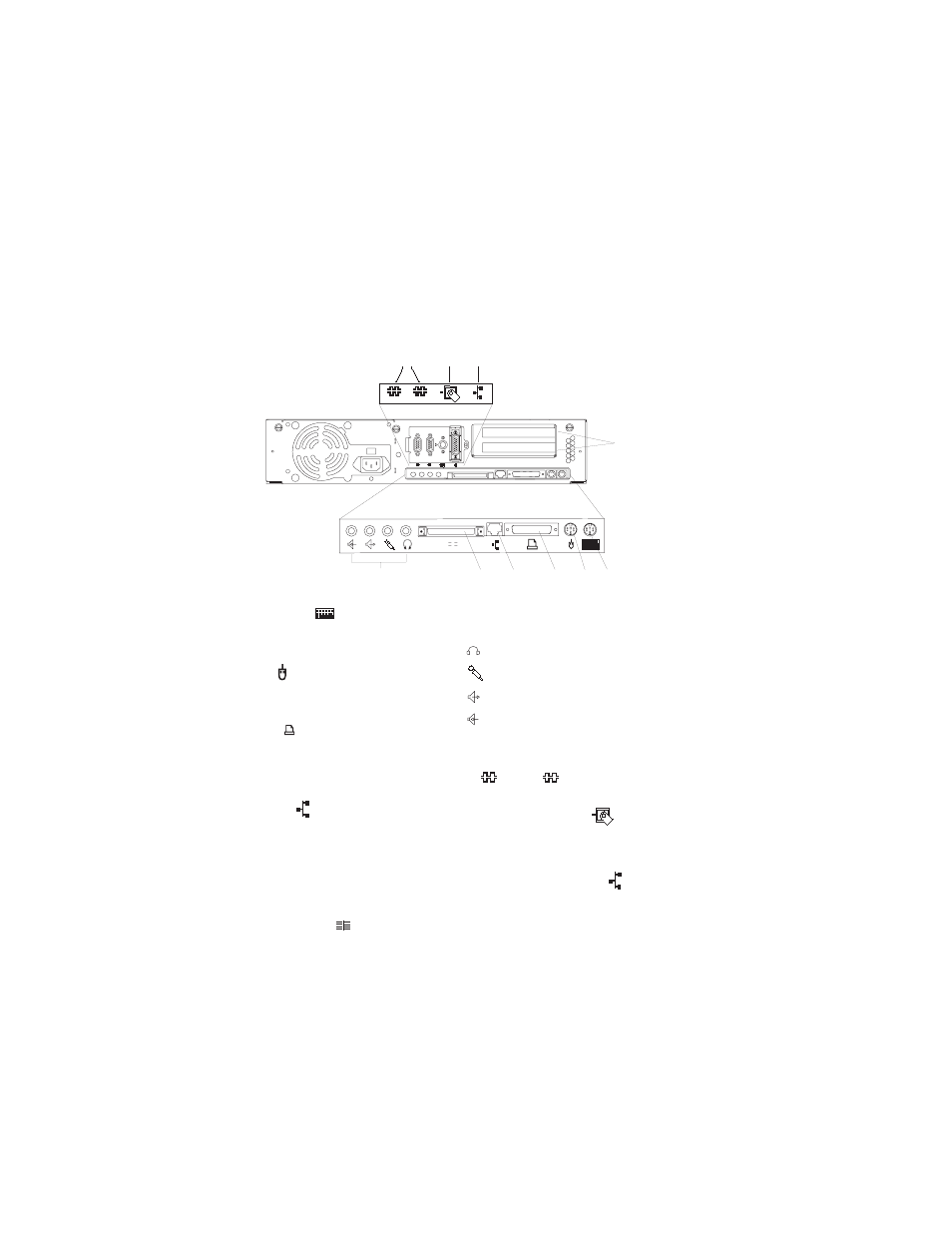

Rear View
7 8 9
10
1 3 4 5 2
6
2
1
1 2
1 2
1 Keyboard Port: ( ): For
keyboard connection.
2 Mouse Port ( ): For mouse
connection.
3 Parallel Port ( ): For connecting
a parallel printer or other parallel
devices.
4 Ethernet Port ( ): For
attaching your server to an
Ethernet/Twisted pair connection
through a 10 Base T or 100/10 Base T
connector.
5 External SCSI Port ( ):
For connecting external SCSI devices.
6 Audio Ports:
7 9-Pin Serial Ports
( 1 and 2 ): For a TTY terminal,
Modem, or other serial devices.
8 Tablet Port ( ): For attaching a
digitizing tablet to your server.
9 Ethernet Port ( ): For attaching
your server to an Ethernet thick
connection (or Ethernet thin connection,
using an optional transceiver) through a
100/10 Base 5 connector.
10 Expansion Slots: For adding PCI
adapters.
Headphone
Microphone
Audio line-out
Audio line-in
