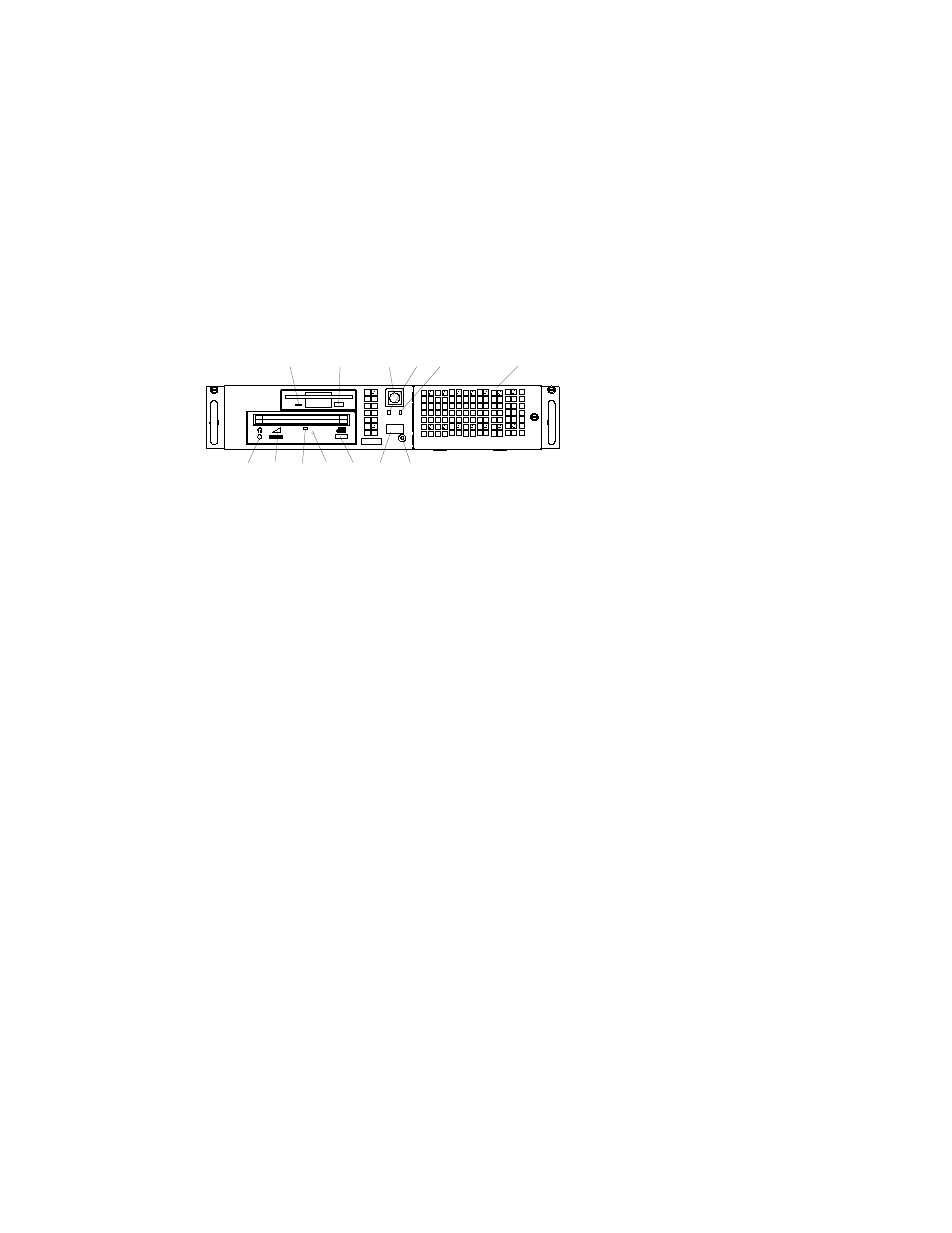

Front View
10 9 8 6 11
12 13 1 2 3 4
7 5
1 Power Switch: Turns server power
on and off.
2 Hard Disk Drive Status Light:
Glows when the server is reading from
or writing to the hard disk.
3 Power-On Light: Glows when the
server is on.
4 Disk Drive Bay Cover: Media bay
for diskette drive.
5 Reset Button: Function depends
upon the operating system installed.
6 Operator Panel Display: Function
depends upon the operating system
installed; may display current status of
server startup, or diagnostic information
in the event of a hardware problem.
7 CD-ROM Eject Button: Releases
the CD-ROM from the CD-ROM drive.
8 CD-ROM Emergency Eject: Ejects
CD-ROM from the CD-ROM drive if
power is not available.
9 CD-ROM Status Light: Indicates
when the CD-ROM drive is active.
10 CD-ROM Volume Control:
Controls the volume for the CD-ROM
headphone jack.
11 CD-ROM Headphone Jack:
CD-ROM headphone connector.
12 Diskette-Drive Status Light:
Glows when the server is reading from
or writing to a diskette.
13 Diskette Eject Button: Releases
diskette from 3.5-inch diskette drive.
1-6 7046 Model B50 User's Guide
