5. Using the instructions that came with the drive, check that any switches or

jumpers on the drive are set correctly.

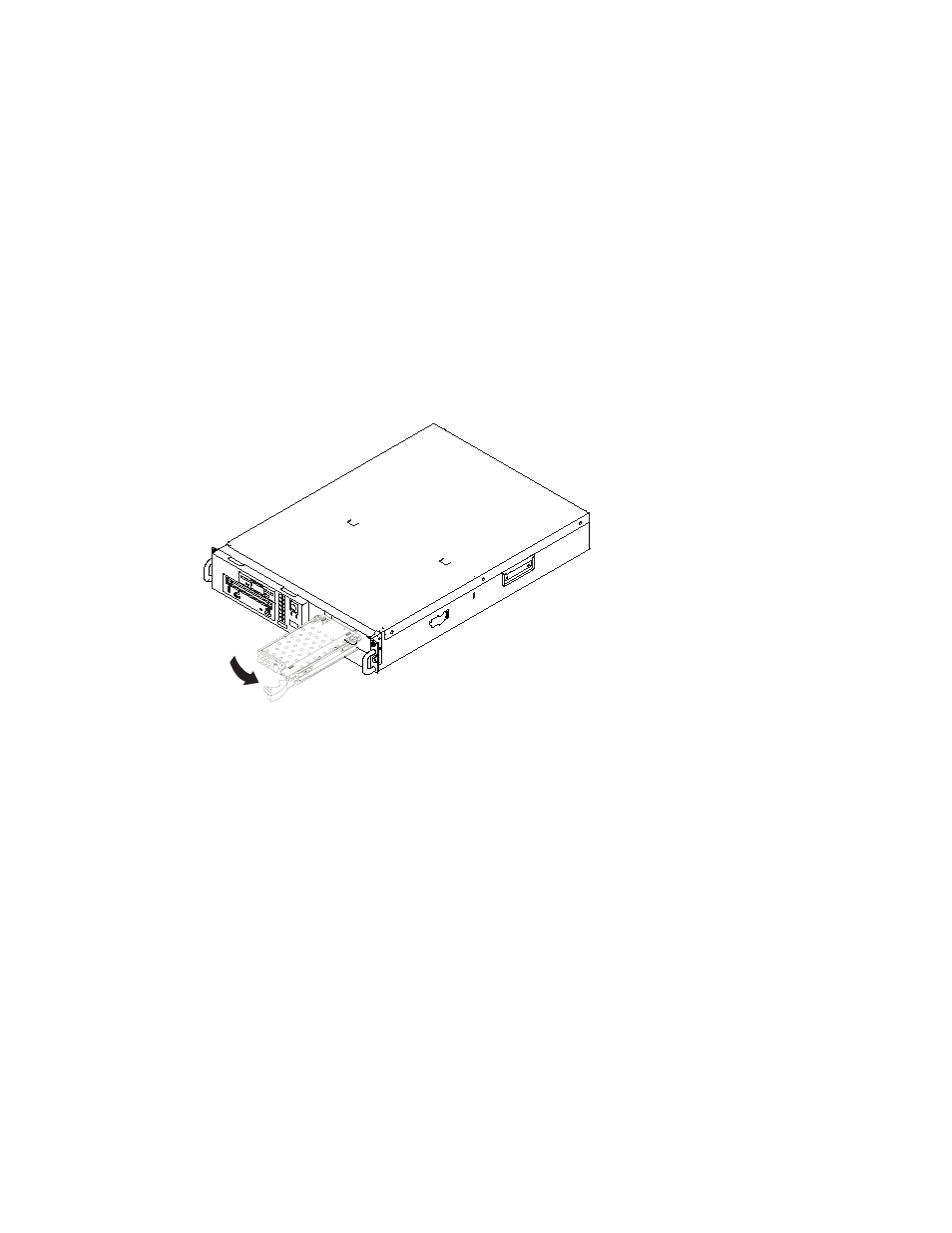

6. With the drive handle pivoted to the open position, insert the drive carrier

completely into the selected drive bay.

Note: It is important to ensure that the drive carrier is inserted firmly into the
connector located in the rear of the bay.

7. Pivot the drive handle completely to the left until the drive handle locks and the

drive is firmly seated.

8. If you have another drive to install, do so now. If not, continue with step 9.

9. Replace the drive bay cover. Align the two notches on the left side of the drive

bay cover with the cover of the server. Pivot the cover to the right until it is
reinstalled, and tighten the thumbscrew.
