IBM B50 User Manual
Page 109

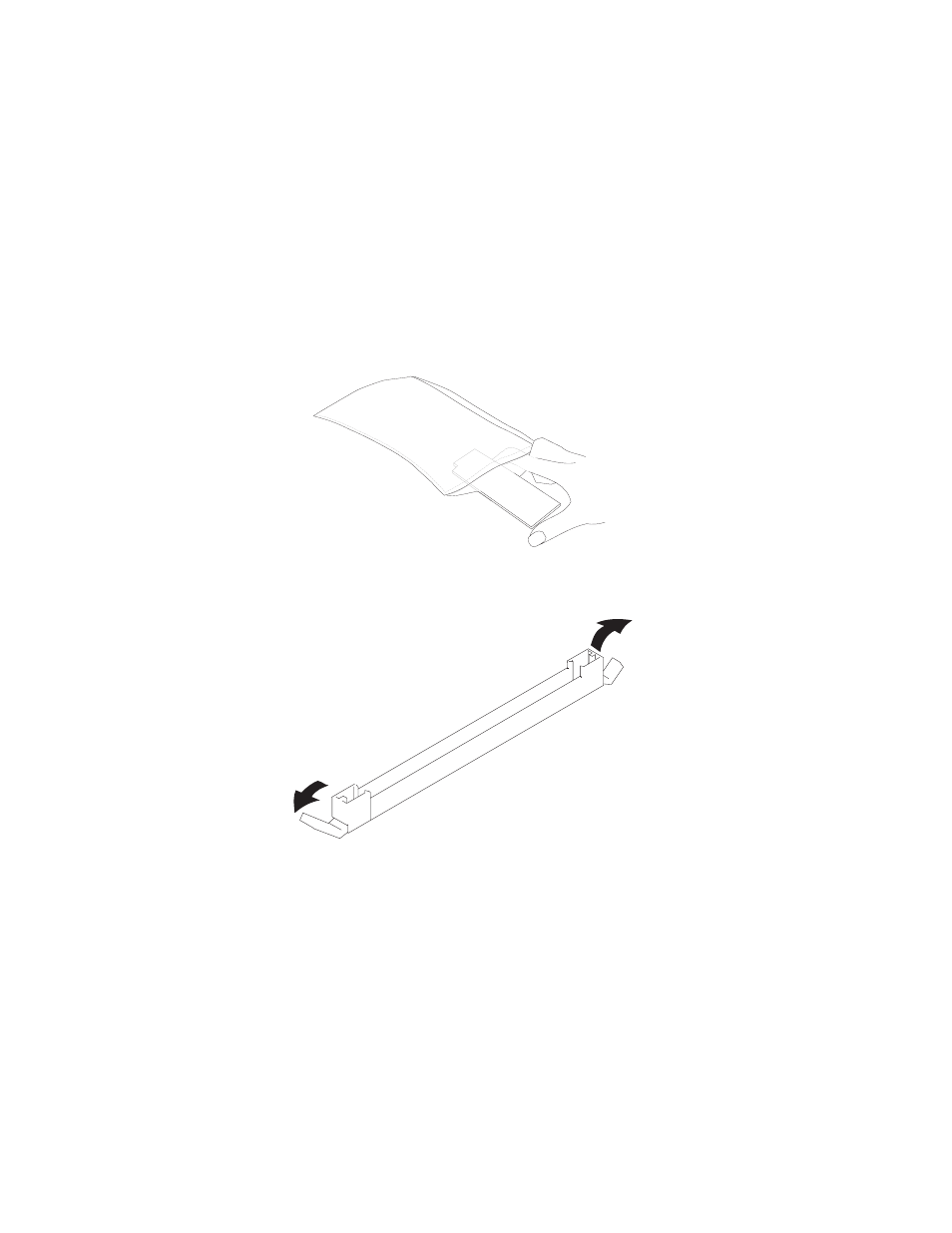

3. Touch the static-protective package containing the option to any unpainted metal
surface on the server, then remove the option from the package.
4. Install the first memory DIMM in slot 4, the second in slot 3, and so forth.
Ensure that the locking tabs are opened prior to installing the memory DIMM.
5. The memory modules are keyed so that they can only be inserted one way.
Align the memory module notches with the keys in the memory connector.
Chapter 4. Installing and Removing Options
4-17
