Page 166
November 11, 2004
6881094C12-A
11-8
Troubleshooting Waveforms: Transmit Baseband Interface Port (TX BBP)
11.8 Transmit Baseband Interface Port (TX BBP)

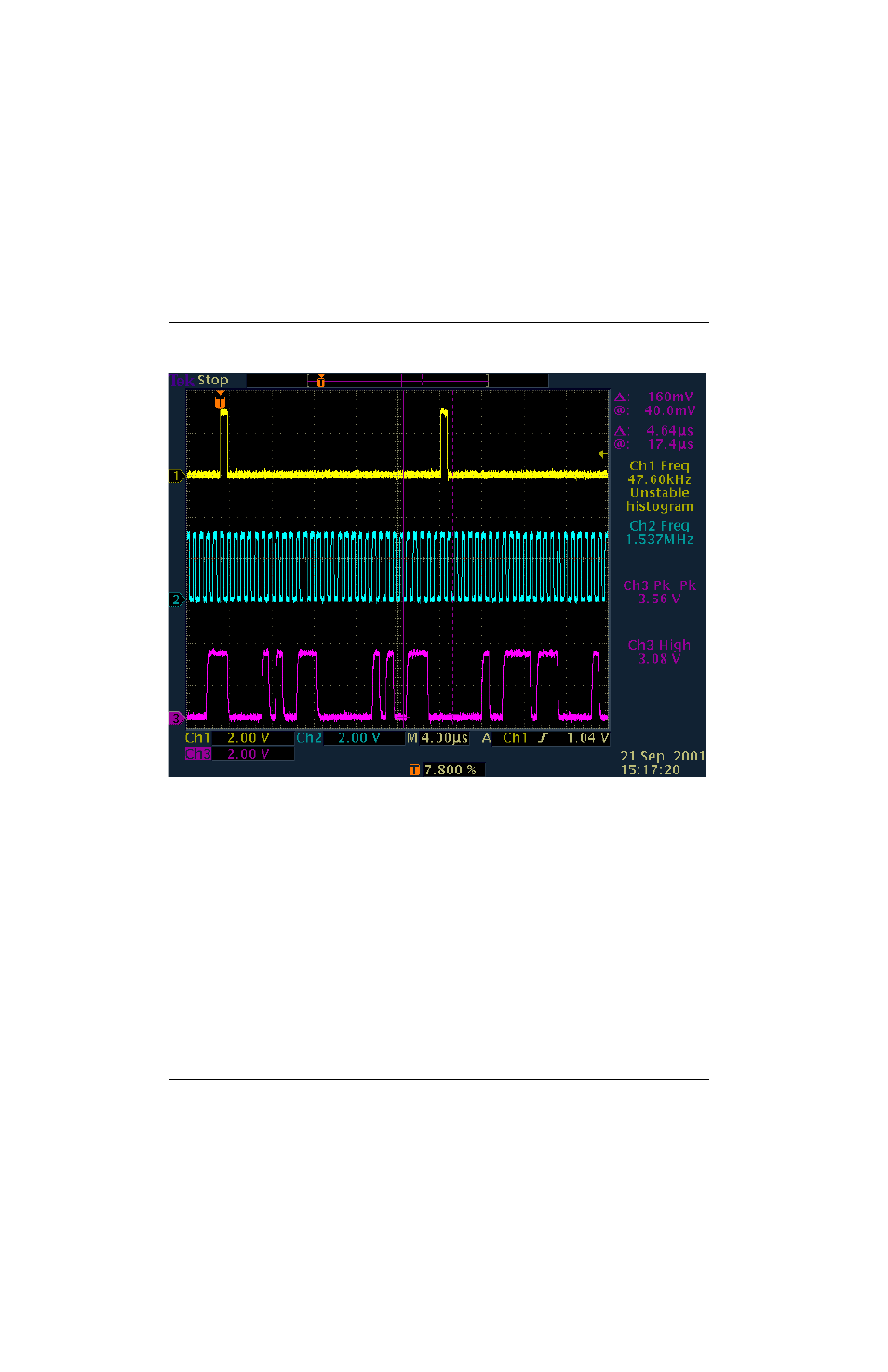

Trace 1: BBP TX frame sync signal at R711.
Trace 2: BBP TX clock signal at R715.
Trace 3: BBP TX data signal at R717.
Figure 11-7. Transmit Baseband Interface Port (TX BBP) Waveforms
