Troubleshooting Waveforms: 16.8 MHz Buffer Input and Output
11-3
11.3 16.8 MHz Buffer Input and Output
Trace 1: Buffer input at R452.
Trace 2: Buffer output at C452.
Note: These components are under a shield on the VOCON board.

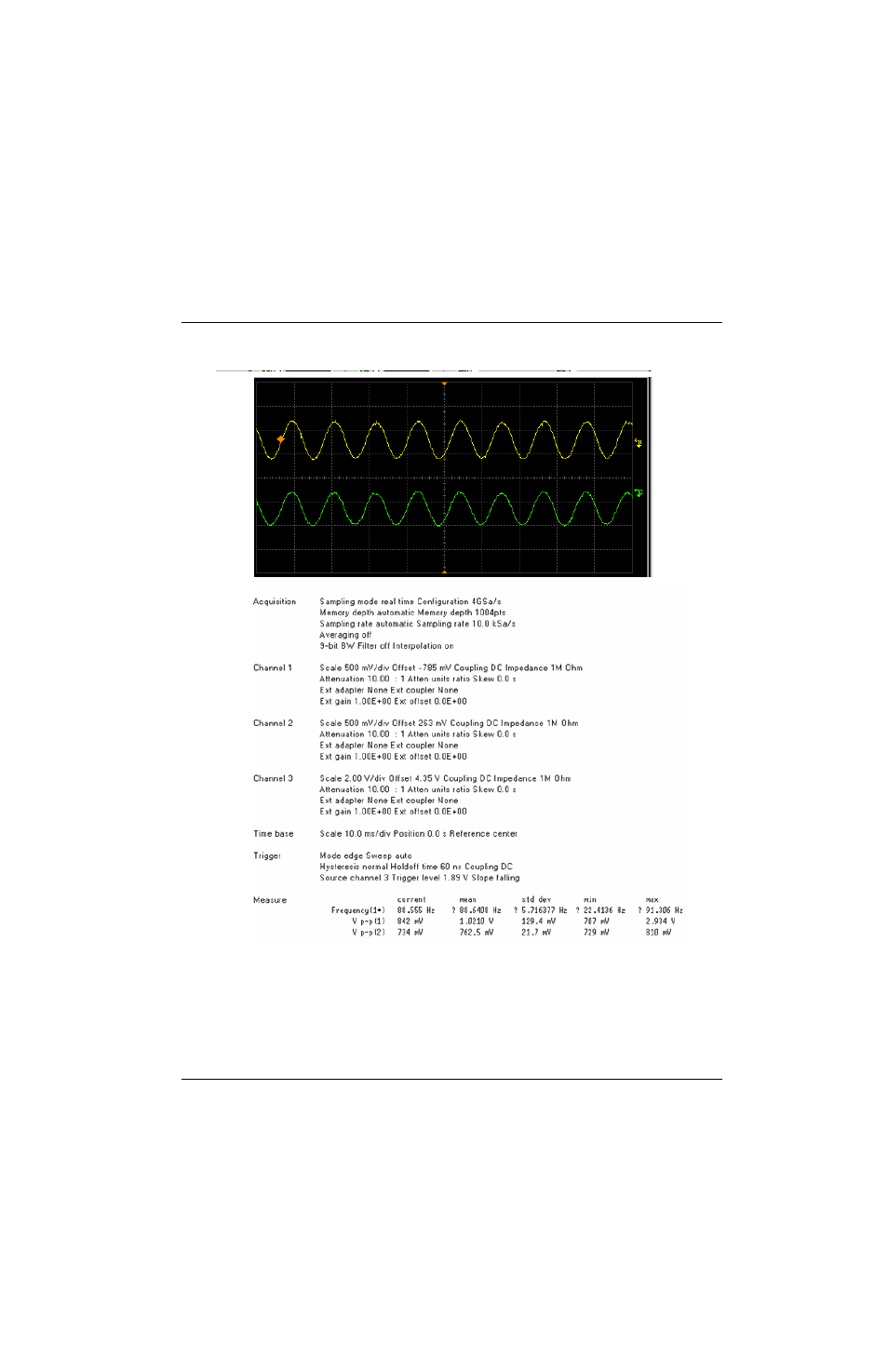

Figure 11-2. 16.8 MHz Buffer Input and Output Waveforms
