USER GUIDE
34

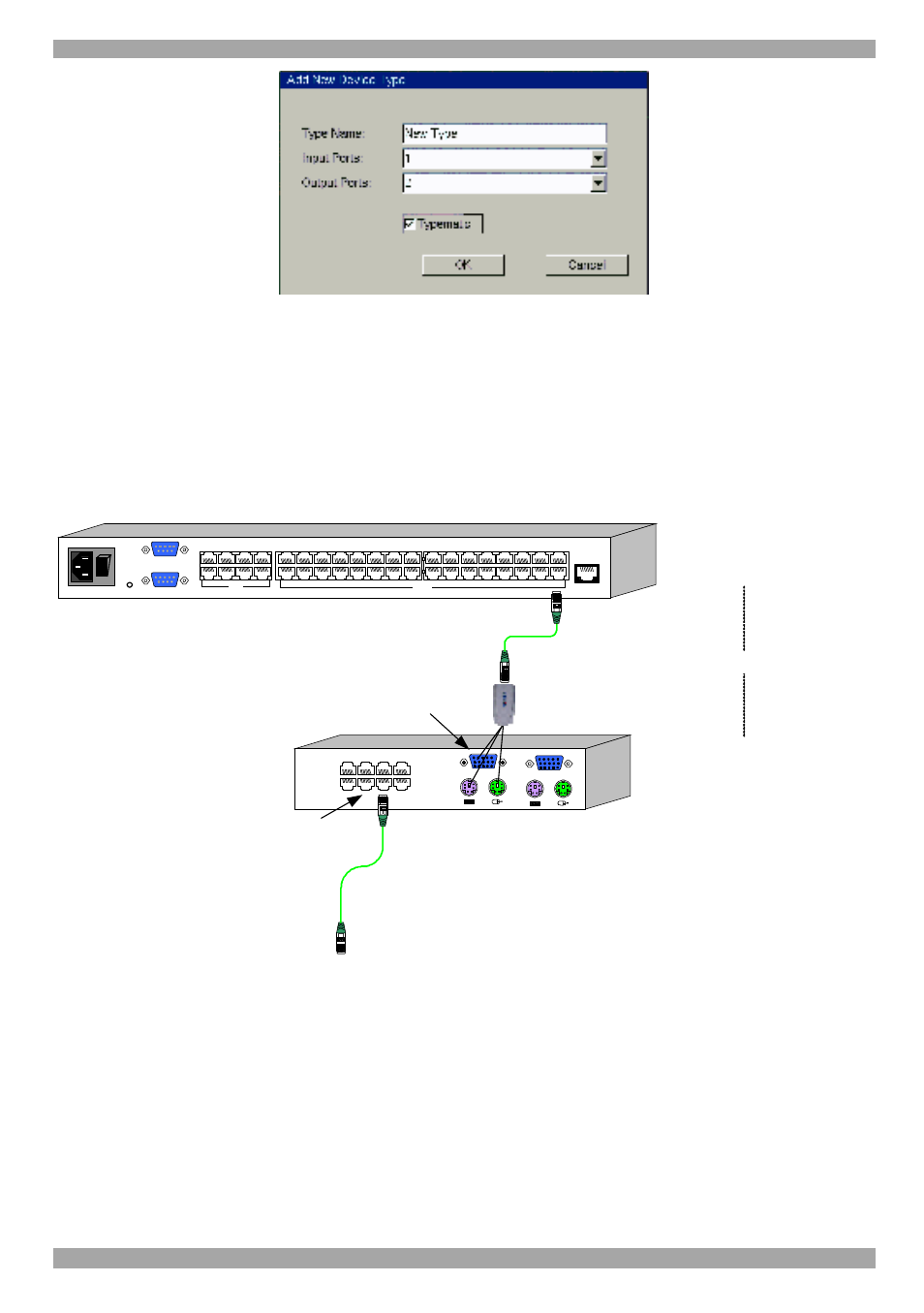

Figure 36 Add New Device Type box
2. Type a name for the Legacy switch type (This is not the same as the Name field
in Figure 35. This is name of the switch type that will appear in the Type drop-
down menu in Figure 35).
3. Select the number of input and output ports in the Legacy switch. Figure 37
below illustrates input and output ports. The input ports connect to a RICC or
XRICC and the output ports connect to the servers.
POWER
100-250 VAC 50/60 Hz
w
w
w
.m
in
ic
om
.c
o
m
ETHERNET
SERIAL
SERVICE
I
0
1
2
3
4
18
19
20
17
SERVE R
5
6
7
8
22
23
24
21
1
2
3
4
6
7
8
5
USER
9
10
11
12
26
27
28
25
13
14
15
16
30
31
32
29
DX Central - Primary level
New KVM switch -
Secondary level
Input port
Output port
Connects to
server - 1 level
down
Cascade
RICC /
XRICC
To Server
Figure 37 Input and output ports
4. Typematic – This is used to help define the Legacy switch’s access hotkey.
Where the access hotkey requires you to press and release a key before pressing
a further key, the Typematic box should be unchecked. Where the access hotkey
requires you to press and hold down a key and then press a further key, tick the
Typematic box.
5. Click OK. The new type is added to the Type Drop-down menu.
6. Select the new device type.
