DX SYSTEM
33
11.4.1 Adding a Legacy switch
To add a new Legacy switch:
Click . The Add New KVM Device box appears. See Figure 35.

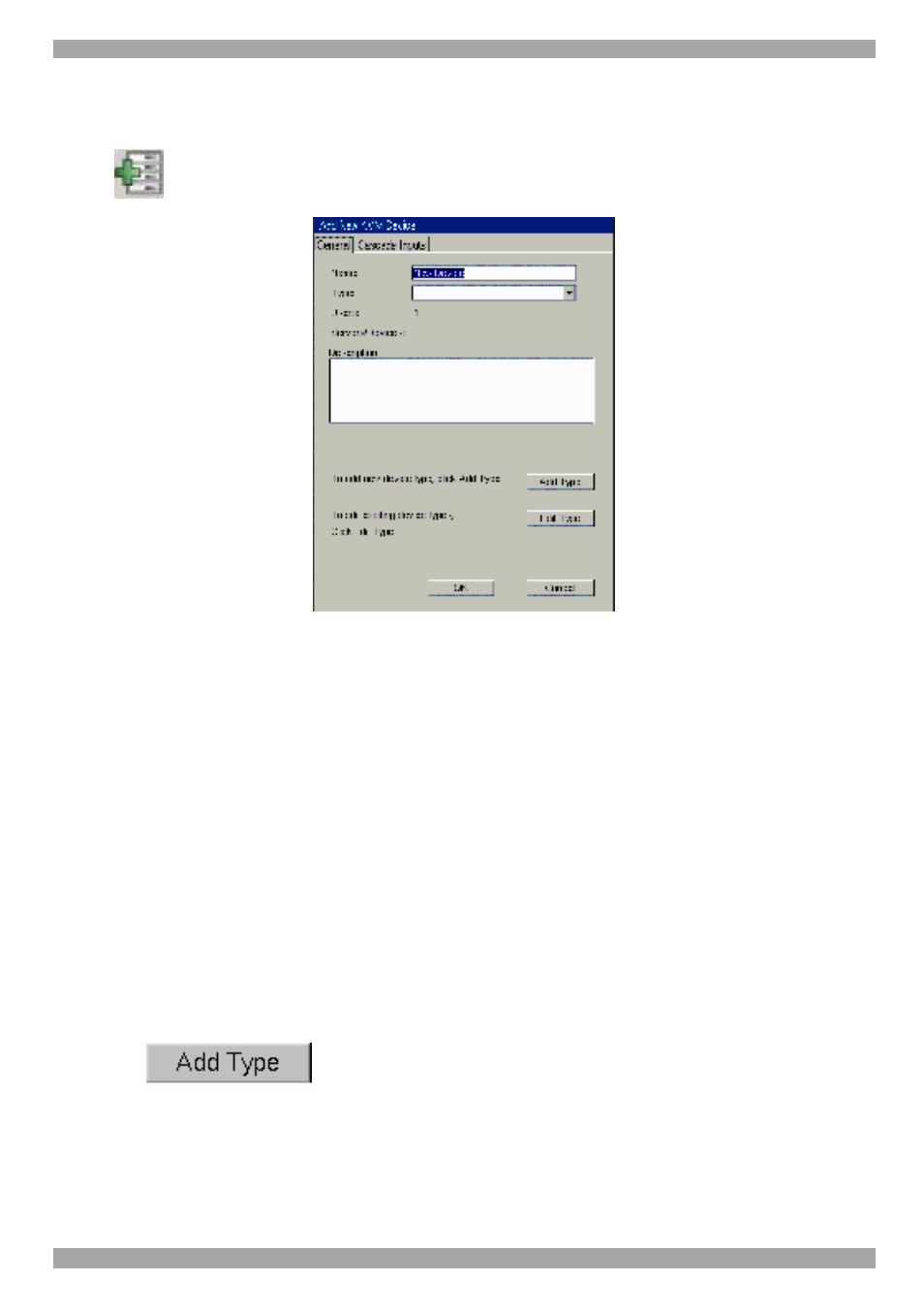

Figure 35 Add New KVM Device box
The General tab elements
Name – Type an identifying name for the new Legacy switch.
Type – From the Drop-down list select the new device type. If it doesn’t appear in
the list, it can be added (explained below - Adding a Legacy switch type).
Users / Servers – Displays the maximum number of users and servers for the
device selected.
Description – type a description of the device. This will appear in the Description
box in the DX System Configuration window when the switch is selected. See
Figure 25.
Adding a Legacy switch type
To add a type of device that does not appear in the Type Drop-down menu:
1. Click . The Add New Device Type box appears. See Figure 36.
