USER GUIDE
24
10. Logging in
Once the system is connected and powered on, the Login screen appears on the
monitor of each DX User. See Figure 23.

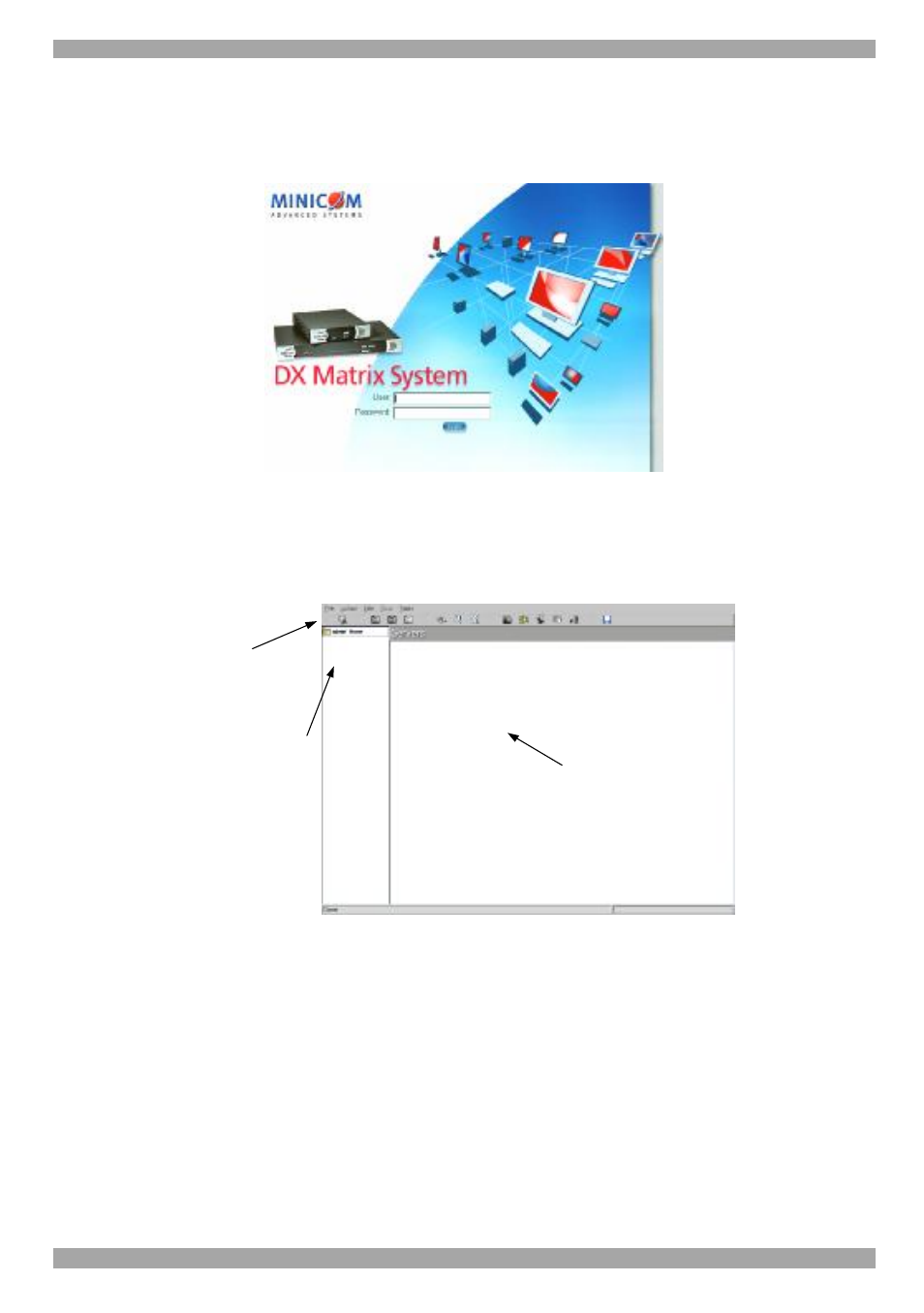

Figure 23 Login screen
Type the default username ‘admin’ and password ‘admin’ (case sensitive). The
Servers window appears. See Figure 24. The screen initially shows no devices. To
display the devices the system must be configured, as explained below.
Servers / devices
appear here
Toolbar icons
Created folders
appear here
Figure 24 Servers window
11. Configuring the DX system
You must configure the system by inputting details of each server / device
connected to each DX Central. This is done in the DX System Configuration
window.
From the View menu choose DX System Configuration. The DX System
Configuration window appears. See Figure 25.
Note! Any change made to the DX system topology will automatically log out all
other users from the system.
