USER GUIDE
12
SD
P110
KB
Mo use
1
0
0
T
V
id
e
o
S
e
ria
l A
P
ar
al
le
l
S
e
ria
l B
Up to 100M / 330ft
CAT5 cable
3 in 1 CPU cable
DX Central
DX User
Optional local
computer
POWER
100-250 VAC 50/60 Hz
w
w
w
.m
in
ic
o
m
.c
o
m
ETHERNET
SERIAL
SERVICE
I
0
1
2
3
4
18
19
20
17
SERVER
5
6
7
8
22
23
24
21
1
2
3
4
6
7
8
5
9
10
11
12
26
27
28
25
13
14
15
16
30
31
32
29
USER
SYSTEM
POWER
100-250 VAC 50/60 Hz
w
w
w
.m
in
ic
o
m
.c
o
m
I
0
USB
LOCAL COMPUTER
TERMINAL
CONSOLE
COMPUTER

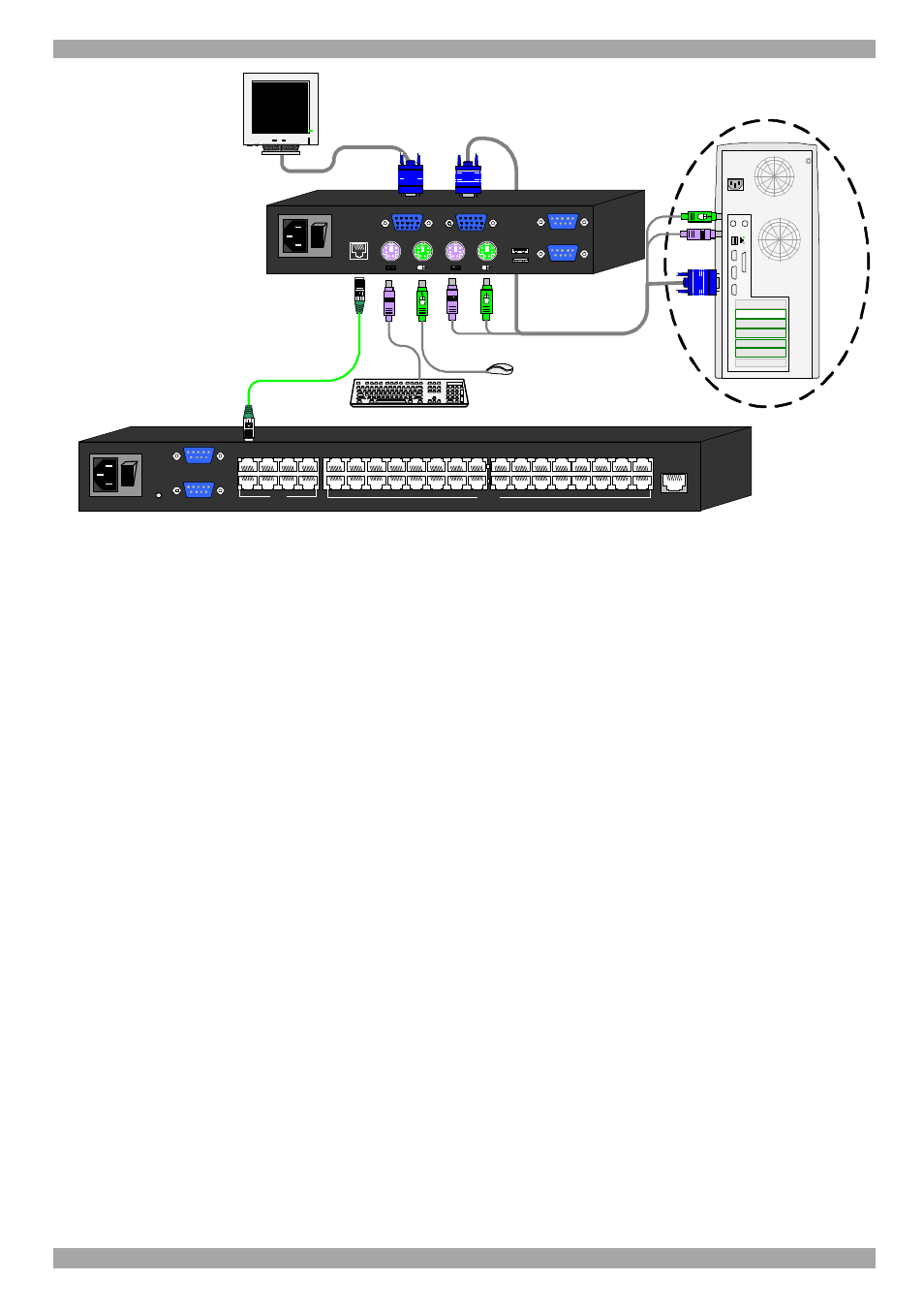

Figure 9 Connecting a DX User to the DX Central
4.1 Connecting an optional local computer to a DX User
A user can work on the DX system just with a KVM console. There is the option to
connect a computer to the DX User unit. A user can then work locally on this
computer.
To connect a local computer:
Connect a computer to the DX User using the 3 in 1 CPU cable, see Figure 9.
1. Connect the connectors of one end of the 3 in 1 CPU cable to the KVM
Computer ports of the DX User.
2. Connect the connectors of other end of the 3 in 1 CPU cable to the KVM ports
of the computer.
4.2 Connecting servers to the DX Central
You use RICCs PS/2 or XRICCs and CAT5 cables to connect servers/devices to the
DX Central. There are 4 types of XRICC:
PS/2, USB, SUN and RS232.
4.3 XRICC power supply
The XRICCs PS/2 and SUN draw their power from the computer’s keyboard port.
The XRICC USB draws its power from the USB port. The XRICC RS232 gets its
power either from a Power adapter or the USB port.
