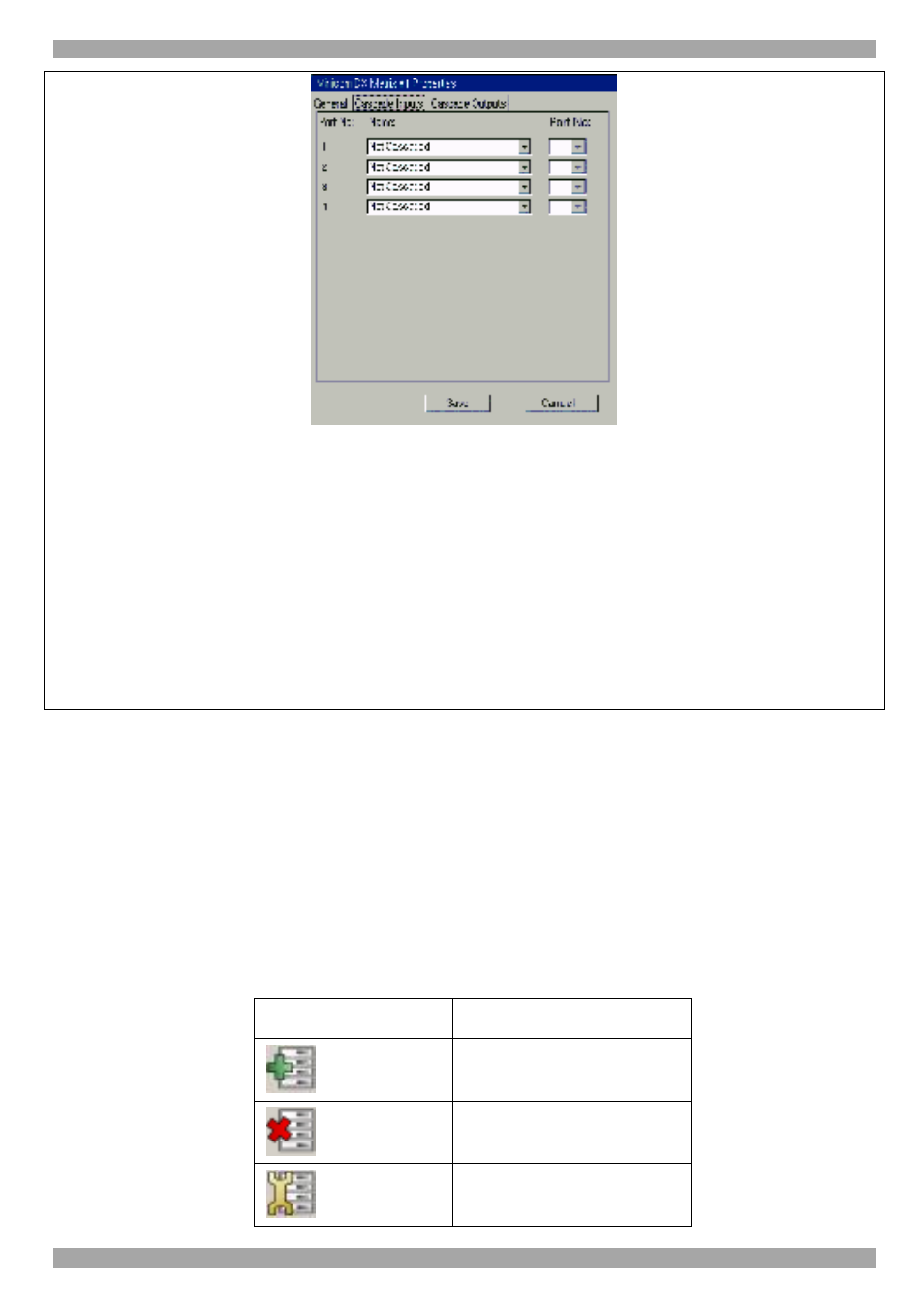

Figure 34 Cascade Inputs
(Left) Port No: - This refers to the User port numbers.
Name – From the drop-down menu select the higher level DX Central this User
port cascades to.
(Right) Port No: - From the drop-down menu select the higher level Server port
the lower level User port is connected to.
Do the above for each cascaded User port.
Click Save.
Do the above for each cascaded port.
Click OK.
11.4 Cascaded Legacy switches
Where you have cascaded Legacy switches in the DX system, you must configure
them in the DX System Configuration window.
The table below explains the Toolbar buttons used for adding editing and deleting
Legacy switches.
Button Function
Add KVM device
Delete KVM device
Edit KVM device
