DX SYSTEM
27

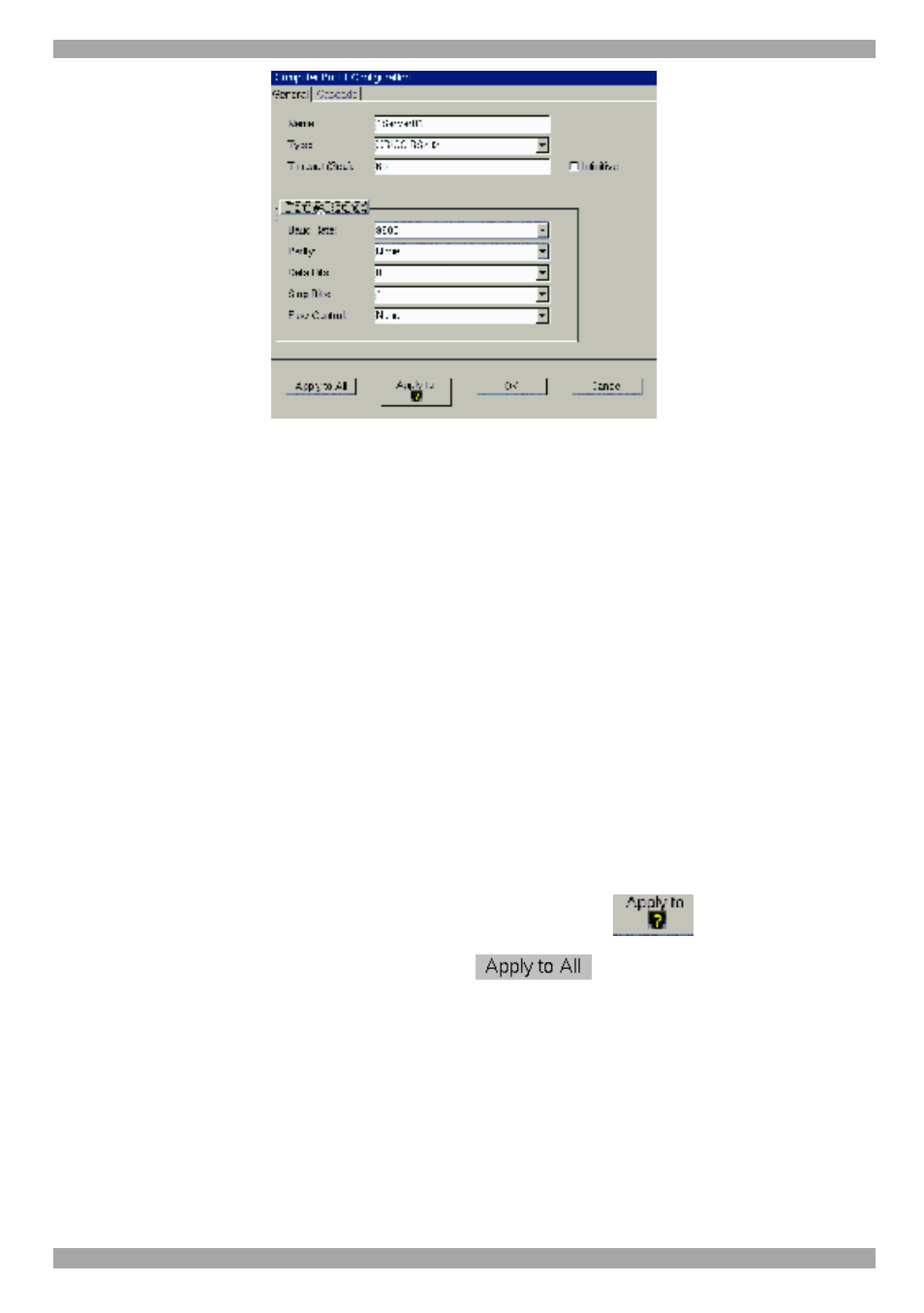

Figure 27 RS232 Terminal settings
Timeout – Type a timeout period or check the Infinitive box to disable the timeout
feature.
KB Mode – Select the appropriate keyboard mode. By default the keyboard mode
is set to PS/2 for Intel based computers.
For the other systems set the KB mode as follows:
· U1 for HP UX
· U2 for Alpha UNIX, SGI, Open VMS
· U3 for IBM AIX
11.2 Applying changes
In general, to apply changes you may have the following 3 options.
(A) To apply the changes to the selected port click OK.
(B) To apply the changes to all un-configured ports click
(C) To apply the changes to all ports, click .
Note! A name given to a connected device will only be given to the device of the
port being configured and will not be applied to all.
