X.200

Digital X Bus

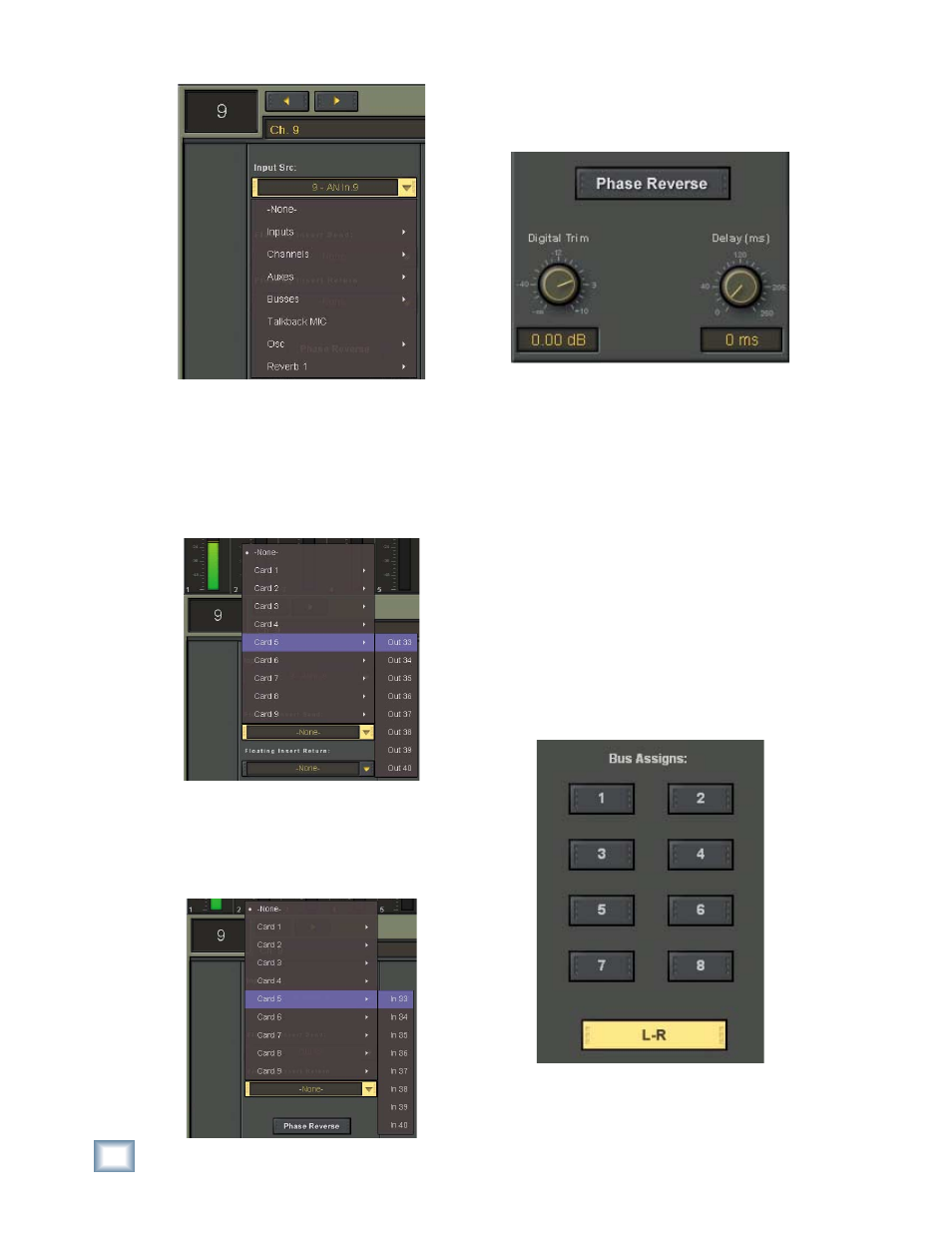

Floating Insert Send

Click the Floating Insert Send drop-down box
to select where to send the channel’s fl oating
insert send. You can use any I/O card’s output.
Typically, you would use this to send the signal
to an external processor, and return the signal
to the channel using the Floating Insert Return.

Floating Insert Return

Click the Floating Insert Return drop-down
box to select where to return the fl oating insert
signal. You can use any I/O card’s input.

Phase Reverse

Click the Phase Reverse button to invert the
polarity of the signal by 180º.

Digital Trim

The Digital Trim allows you to adjust the input
level just after the A/D converter and before the
channel DSP.

Provides a method to trim the input signal when
using Digital I/O cards.

Delay

Adds delay to the selected channel. Ranges
from 0 ms to 500 ms. This can be manually ad-
justed with the V-Pot, or automatically adjusted
when using the “Adjust Channel Delay” feature
(Channel > Adjust Channel Delay).

Bus Assigns

Click the Bus Assigns buttons to assign the
output of the channel strip to Bus 1-8 and the
L-R bus.
