Show All Meters
• Select this option to display all 94 meters (in-
cluding the L/R mix).
• Touch the meter bridge in the display to toggle
between showing the 24 meters in the currently
selected bank and all meters.
Peak Hold
• When Peak Hold is selected, a thin bar appears
in the meter bridge display to indicate the level
of recent transient peaks in the signal. The
Peak Hold bar has a slower decay rate than the
normal response of the signal meter.
• Peak Hold does not affect the meters when in
VU mode.
Footswitches
These drop-down boxes allow you to select the
function assigned to each of the two footswitch
jacks available on the rear panel. The functions
available include:
• Talkback
• Play/Stop
• Next Marker
• Previous Marker
• New Marker
• Fader Swap

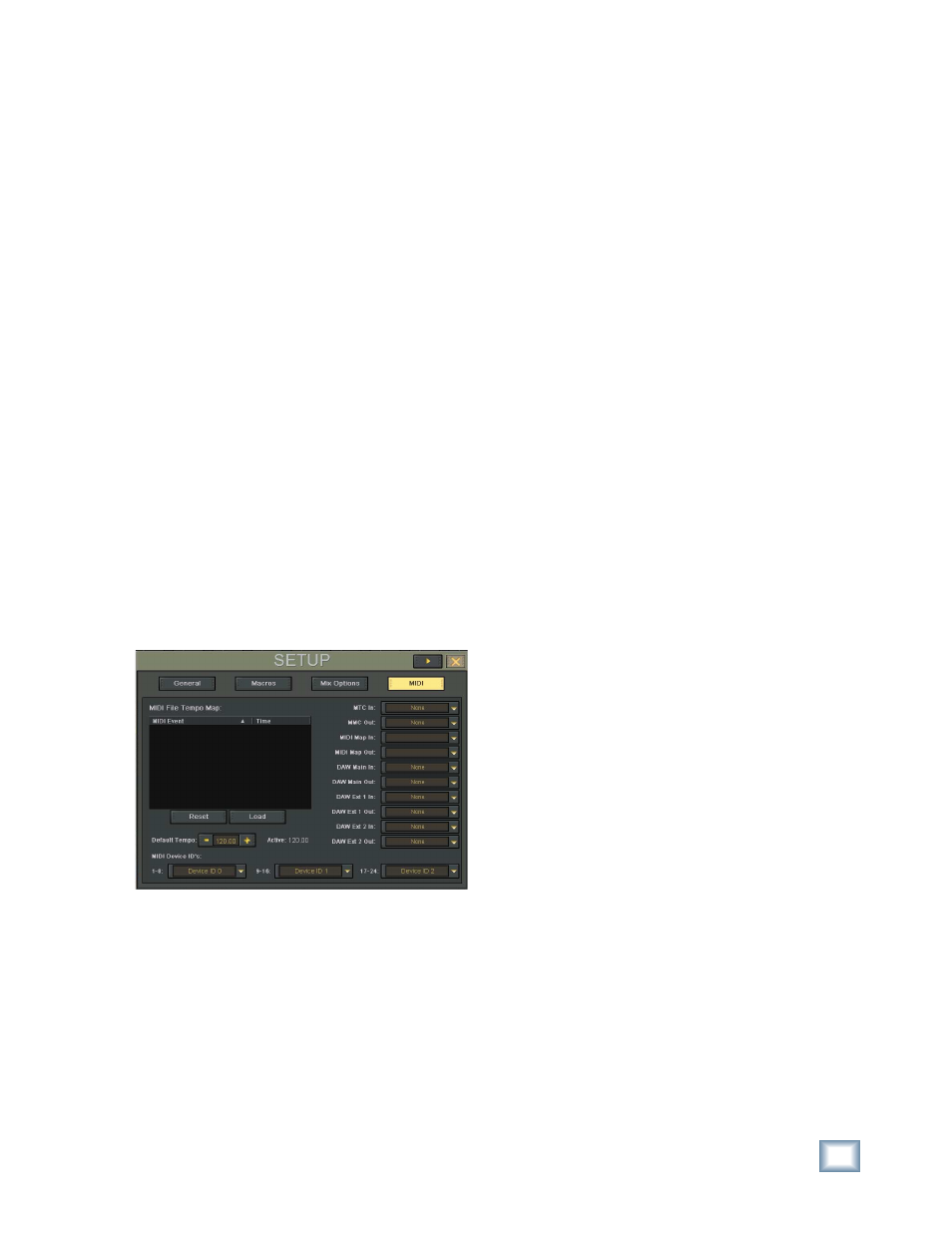

MIDI
MIDI File Tempo Map
• Import a MIDI Tempo Map from a standard
MIDI fi le to synchronize the Digital X Bus Bars/
Beats/Ticks display with your MIDI sequencer
MTC reference.
Default Tempo
• Sets the MIDI tempo reference for position
alignments during an automation pass or loca-
tor activities.
Active Tempo
• Displays the actual tempo currently in use.
MIDI Device ID’s
• Sets the Device ID reference for connected
record devices such as the HDR24/96, ADATs,
DA Series, or other multitrack recorders.
• A unique ID is required for using MMC (MIDI
Machine Control) with multiple recording devices.
The following boxes select the MIDI port(s) used
to send and receive MTC, MMC, and MIDI commands
between the Digital X Bus and external multitrack
recorders and DAW applications. The MIDI port(s)
must be connected to the Digital X Bus in order to be
detected and appear in the lists. MPU-401 is the built-
in MIDI IN and OUT connectors on the rear panel.
MTC In Port
• Selects the MIDI interface used to receive MIDI
Time Code in the Digital X Bus.
MMC Out Port
• Selects the MIDI interface used to transmit
MIDI Machine Control from the Digital X Bus.
MIDI Map In
• Selects the MIDI interface used to receive MIDI
commands as defi ned in the MIDI Map.
MIDI Map Out
• Selects the MIDI interface used to send MIDI
commands as defi ned in the MIDI Map.
DAW Main In
• Selects the MIDI interface used to receive MIDI
commands for the fi rst eight channels when the
MIDI fader bank is selected
DAW Main Out
• Selects the MIDI interface used to send MIDI
commands for the fi rst eight channels when the
MIDI fader bank is selected.
DAW Ext 1 In
• Selects the MIDI interface used to receive MIDI
commands for the second eight channels (9-16)
when the MIDI fader bank is selected
DAW Ext 1 Out
• Selects the MIDI interface used to send MIDI
commands for the second eight channels (9-16)
when the MIDI fader bank is selected.
