58. SET

To move the timeline cursor to a new position
in the Mix Editor, with LOCATE [57] lit, press
SET, then enter the time you want to move the
cursor to using the number buttons, then press
ENTER [49].

Transport Controls

These buttons control external devices that

respond to MIDI Machine Control (MMC). MMC is
transmitted from the MIDI OUT port on the rear pan-
el of the Digital X Bus to MMC-compatible devices.

Transport controls can be programmed to export

specifi c MIDI messages other than standard MMC
protocol. See MIDI Mapping for more details.

Note: MMC is not bidirectional. The Digital X
Bus sends out MMC commands to your tape
recorder(s), but if you arm tracks or operate trans-
port controls from the tape recorders, the activ-
ity is not transmitted back to the Digital X Bus
via MMC. You can, however, press Play on your
recorder and, as soon as time code is received, the
Digital X Bus reverts to PLAY mode.

59. REWIND

Engages external machine and the time code
display to fast rewind.

60. FAST FWD

Engages external machine and the time code
display to fast forward.

61. STOP

Stops external machines and the time code
display at the current position.

62. PLAY

Engages external machine and time code dis-
play to play at normal speed from the current
location.

63. RECORD

Engages Master record function on external
machines.

Must be pressed with PLAY to engage record
mode unless One Button Record is active. One
Button Record allows punching into record
mode without hitting PLAY (see Windows >
Setup > Mix Options).

64. SCRUB

Engages the jog wheel to advance external ma-
chines forward or backward with single-frame
accuracy when using MMC.

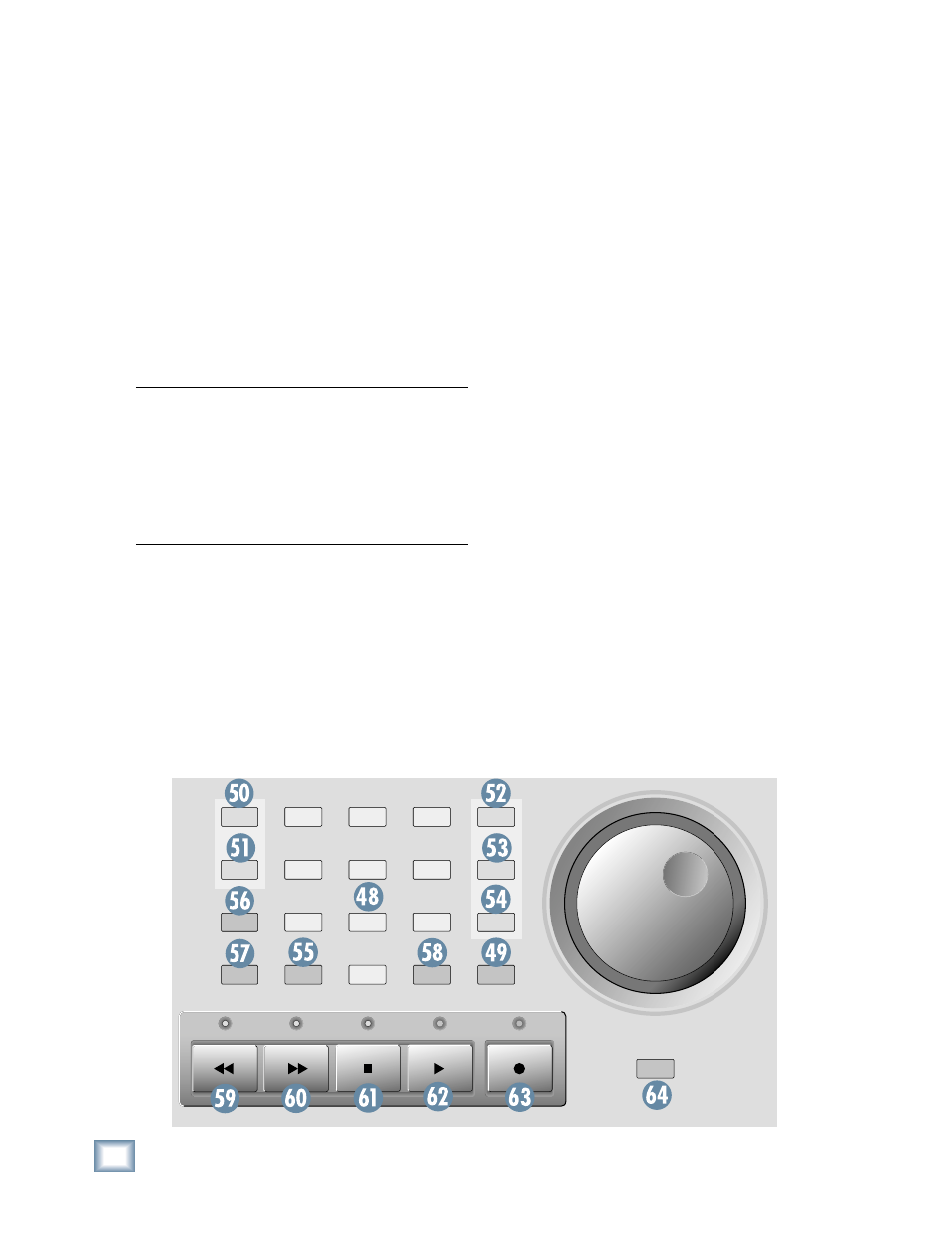

REWIND
