6

27D8520

Height of Restriction (X)

Minimum Depth of Fireplace/Firebox

No restriction

13" Manual Control 13

1

/

2

" Milli-Volt Control

0 to 1.5"

15"

Greater than 1

1

/

2

" to 3"

15"

Greater than 3"

ANY BARRIER GREATER THAN THREE INCHES (3")
PLACED IN FRONT OF THE GAS LOG SET IS NOT
RECOMMENDED BY THE MANUFACTURER.

PLACEMENT IN A FIREPLACE WITH A RESTRICTIVE BARRIER

IMPORTANT INFORMATION FOR THE INSTALLATION OF THIS GAS LOG SET

The following are guidelines for placing a VWF log set in a fireplace that has a restrictive barrier along the bottom front
opening of the fireplace. Some examples of barriers are glass/screen door frames and sunken/recessed fireplaces.

Glass door frames

with adjustable

louvers should have

the lovers fully open

while the unit is in

operation.

Height of restrictive barrier

caused by glass door frames,
recessed fi replaces, etc. from

the base or bottom surface of the

unit. (Refer to Table).

The log set should be
placed against or as near
as possible to the rear wall
of the fi replace/fi rebox.

Depth of fi replace/fi rebox.

(Refer toTable).

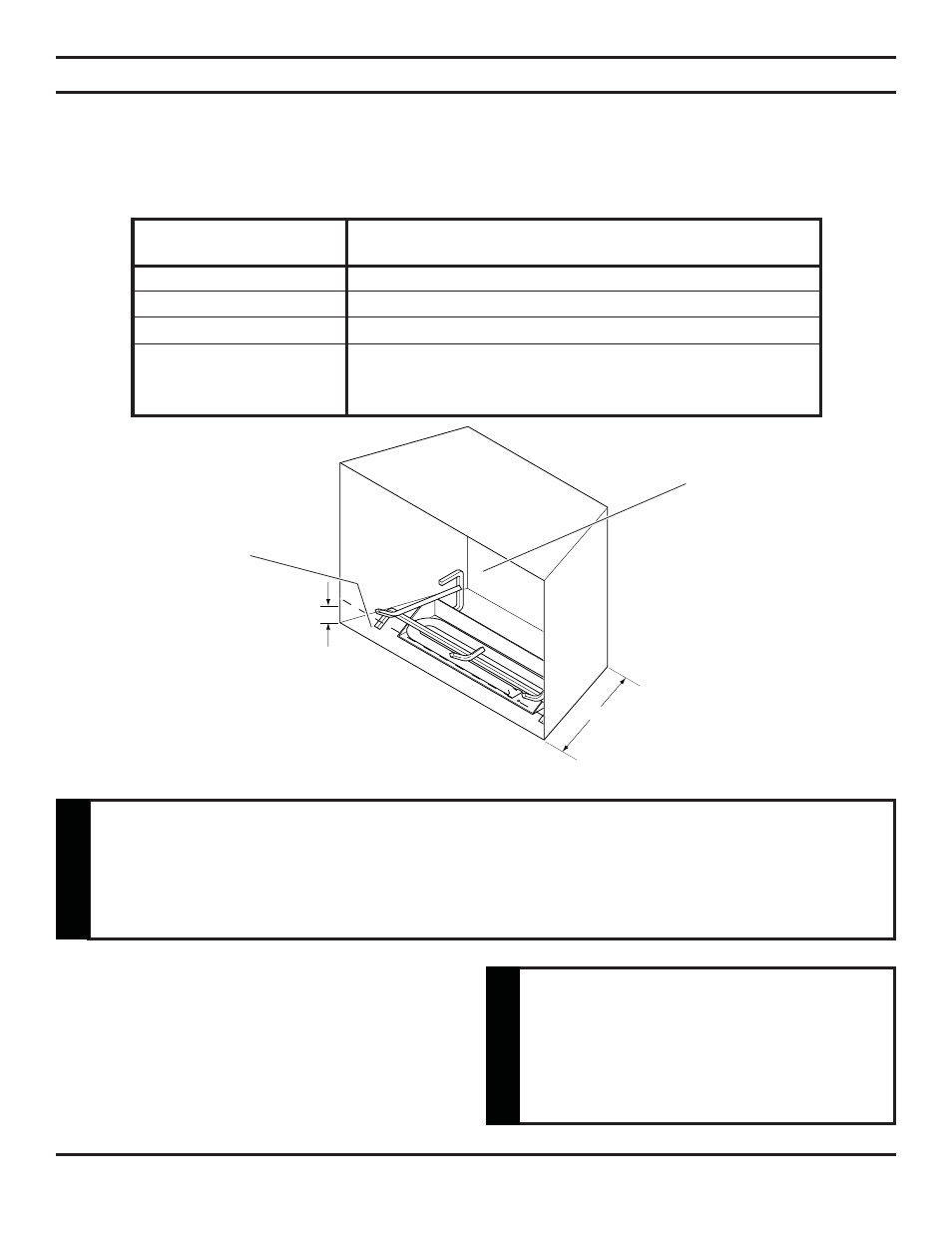

Figure 2

NOTE: Non combustible material such as
refractory brick may be used to line the
fl oor of the fi replace in order to raise the
height of the gas log set in relation to a
restrictive barrier.

X

Barriers such as the bottom of a glass door frame placed in front of a gas log set can
change the air fl ow characteristics of the fi replace which in turn can cause the unit to
overheat and malfunction. Any deviation from the installation guidelines on this sheet
will potentially void the warranty.

W

ARNING

If the fi replace has a restrictive barrier
and is equipped with a remote receiver,
it must be placed outside or the
combustion chamber. See “Installing
Receiver” on page 9.

CAUTION
