40

27D8520

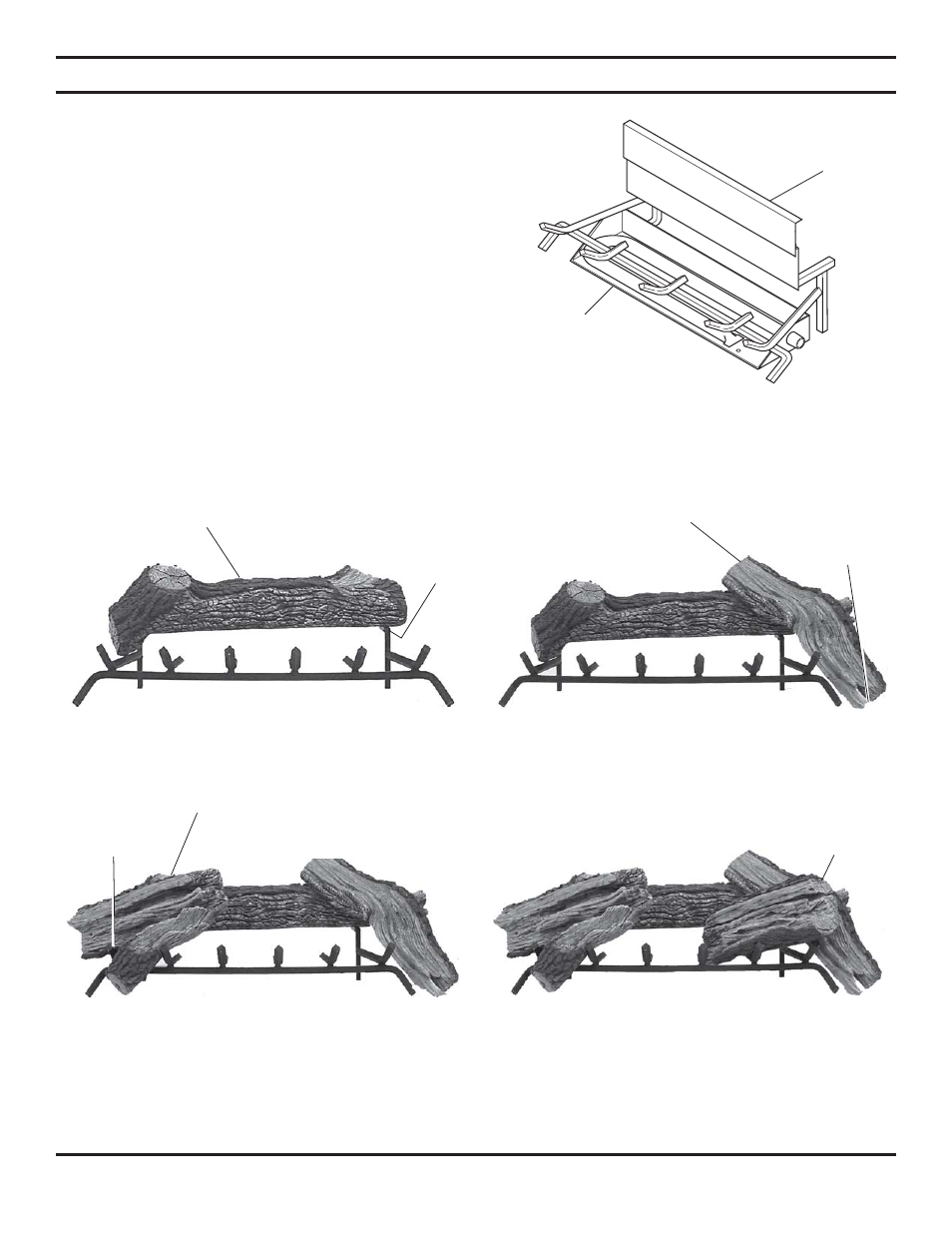

LOG PLACEMENT

Figure 137 - Sliding Shield Plate Down Back of

Burner Pan

Burner

Pan

Shield

Plate

MODEL VWF36/30WP WEATHERED PINE LOG

1. Slide shield plate down back of burner pan. See Figure

137.

2. Place Rear Log #1 on back of grate. Left side should fit

on grate in front of rear stand. Right side goes on the
rear stand of grate. See Figure 138.

3. Place Bottom Right Log #2 along outside of grate. Rest

end on Rear Log #1. Control knob will stick through
bottom notch of log. See Figure 139.

4. Place Bottom Left Log #3 on grate. The “V” of the log

should straddle the end grate bar. See Figure 140.

5. Place Top Right Log #4 on Bottom Right Log #2 resting

on grate. See Figure 141.

Figure 138 - Placing Rear Log #1 on Back Grate

Rear Log

Rear

Stand

of

Grate

Bottom Right Log (#2)

Top Right

Log (#4)

Figure 139 - Placing Bottom Right Log (#2)

Figure 141 - Placing Top Right Log (#4)

Bottom Left Log (#3)

“V” Straddling

Grate Bar

Figure 140 - Straddling “V” of Bottom Left Log

(#3) on Grate Bar

Control

Knob Will

Go Here
