27D8520

15

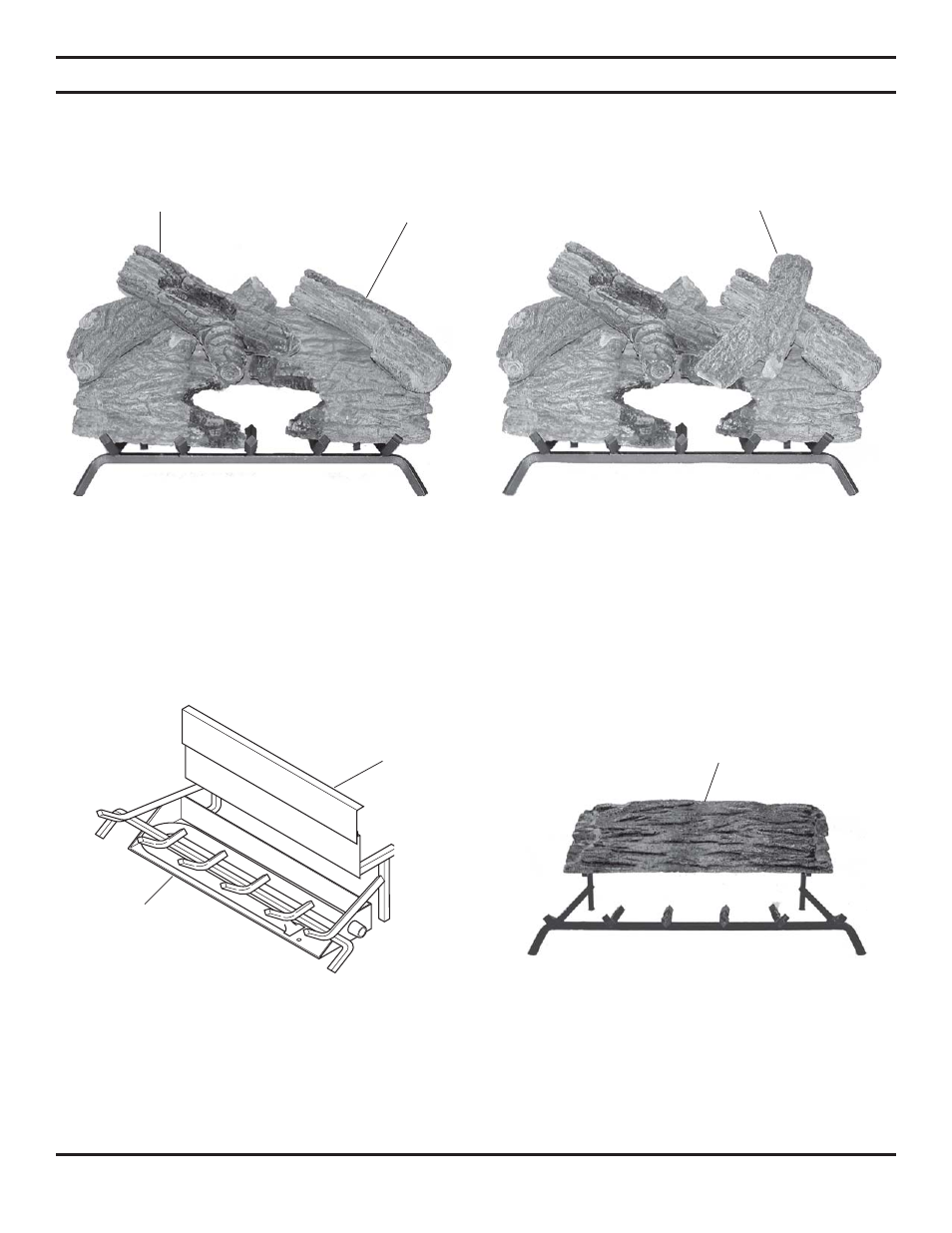

Figure 23 - Installing Right Side Middle Log (#5)

and Left Top Log (#7)

Figure 24 - Installing Right Top Log (#6)

Right Side Middle Log (#5)

Left Top Log (#7)

Right Top Log (#6)

7. Install left top log #7 as shown. See Figure 23.
8. Install right top log #6 as shown. See Figure 24.

LOG PLACEMENT

Continued

VWF30 MASSIVE OAK LOGS

1. Slide shield plate down back of burner pan. See Figure 25.
2. Center rear log #1 on grate bars and flush with rear of the grate. See Figure 26.

Figure 25 - Sliding Shield Plate Down Back of

Burner Pan

Figure 26 - Centering Rear Log (#1) on Grate Bars

Burner

Pan

Shield

Plate

Rear Log (#1)
