24

27D8520

LOG PLACEMENT

Shield

Plate

MODELS VWF24/18 SPLIT RIVER OAK

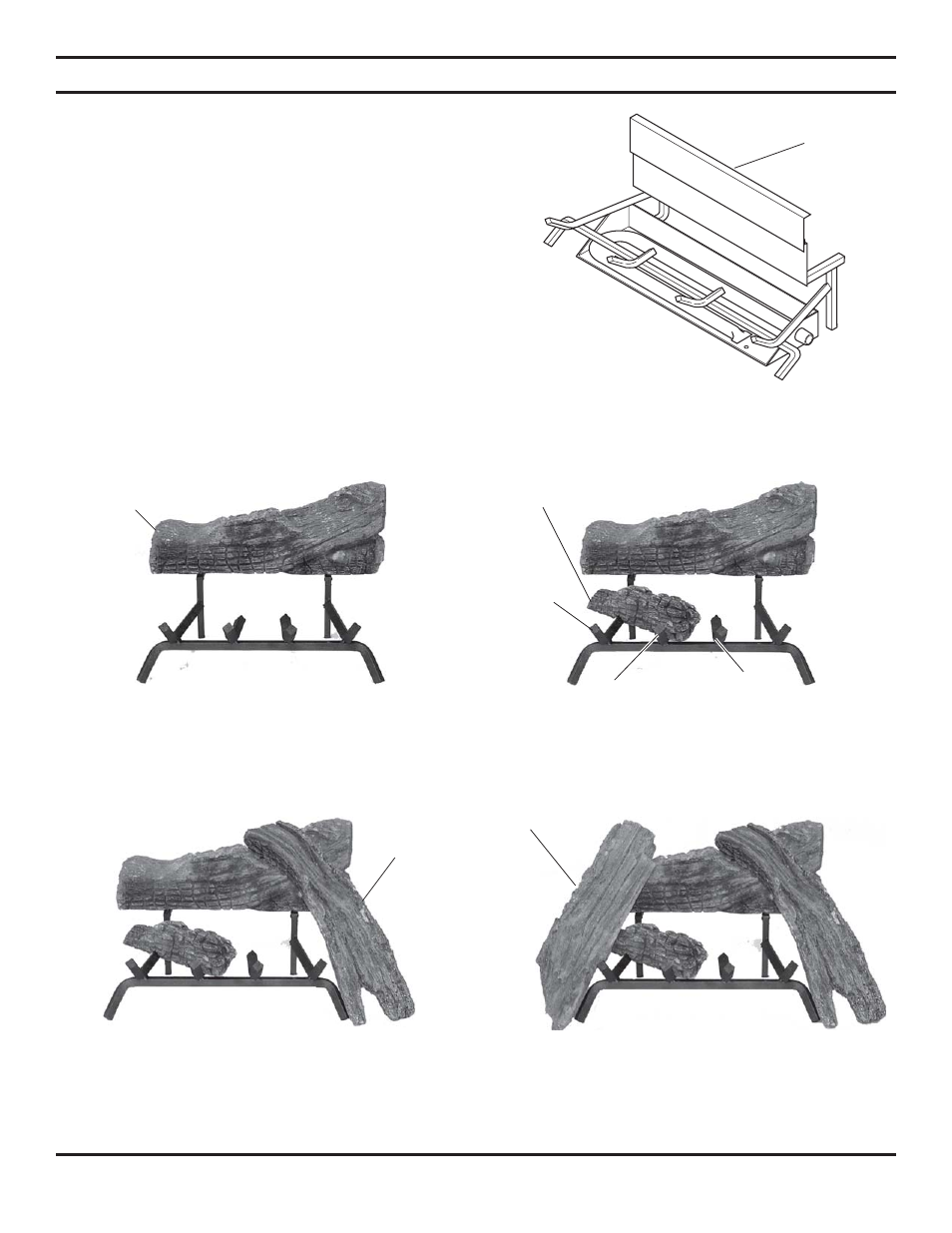

1. Slide shield plate down back of burner pan. See

Figure 67.

2. Place Back Log #1 on back of grate. See Figure 68.
3. Place Front Left Log #2 in front of back log on left arm

of grate. Rest end of bottom left log between second
and third prong of grate. See Figure 69.

4. Place end of Bottom Right Log #3 on cutout of back log

#1. Rest other end of right bottom log to the outside
of right grate prong. See Figure 70.

6. Rest Bottom Left Log #5 on back log #1 and to the

outside of the left grate prong. See Figure 71.

Figure 67 - Sliding Shield Plate Down Back of

Burner Pan

Figure 68 - Placing Rear Log (#1) on Back of Grate

Rear Log (#1)

Figure 69 - Placing Front Left Log (#2) on

Left Arm of Grate

Front Left Log (#2)

Left Arm

of Grate

Second Prong

Third Prong

Figure 70 - Placing Bottom Right (#3) Log

on Grate

Bottom Right

Log (#3)

Figure 71 - Installing Bottom Front Left Log (#5)

Bottom Front Left Log (#5)

Continued
