LOG PLACEMENT
MODELS VWF30 SPLIT PINE (continued)
6. Rest front end of Right Log #4 on right top of Log #1B. The back end of Log #4 rests to right hump on Log #3. See
Figure 116.
7. Rest front of Left Log #6 just left of the middle of Log #1A and back end of Log #6 just left of middle of Log #3. See
Figure 117.
8. Place front of Right Middle Log #7 on top right of Log #1B. Rest back end of Log #5 on top right of Log #4. See Figure
118.
9. Lay Top Center Log #5 across log #7 with front end resting on Log #1B. See Figure 119.
10. Place front end of Top Left Log #8 on Log #6. Let back end of Log #8 rest on Log #3. See Figure 120.
11. Rest front of Top Top Log #9 on Log #8 and back of Log #9 on left end of Log #3. See Figure 121.

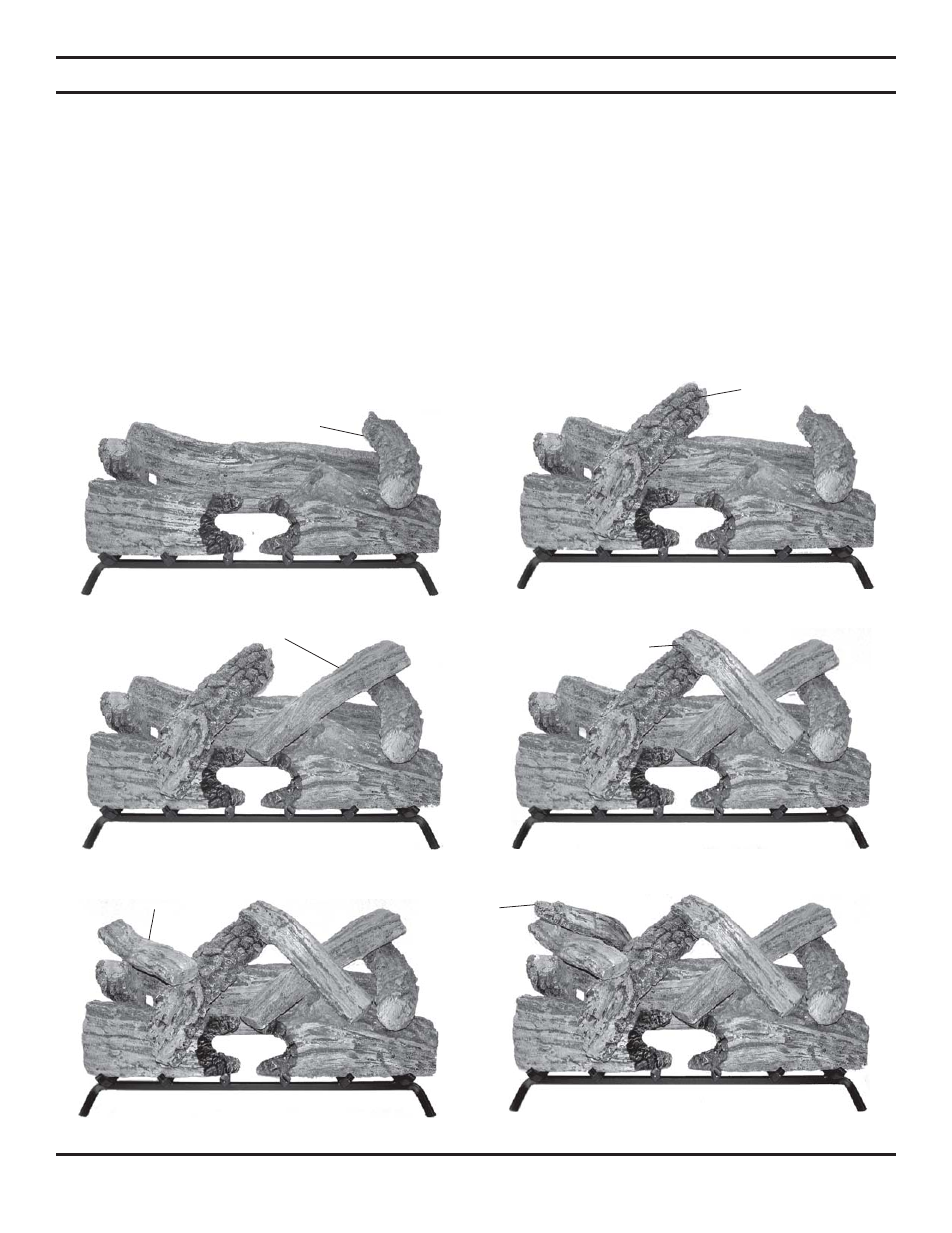

Right Log (#4)
Figure 116 - Installing Right Log (#4)
Left Log (#6)
Figure 117 - Installing Left Log (#6)
Figure 118 - Installing Right Middle Log (#7)
Right Middle Log (#7)
Top Left Log (#8)
Figure 120 - Installing Top Left Log (#8) Figure 121 - Installing Top Top Left Log (#9)
Top Center Log (#5)
Figure 119- Installing Top Center Log (#5)
Top Top Left
Log #9
