LOG PLACEMENT

MODELS VWF30/24 SPLIT RIVER OAK (continued)

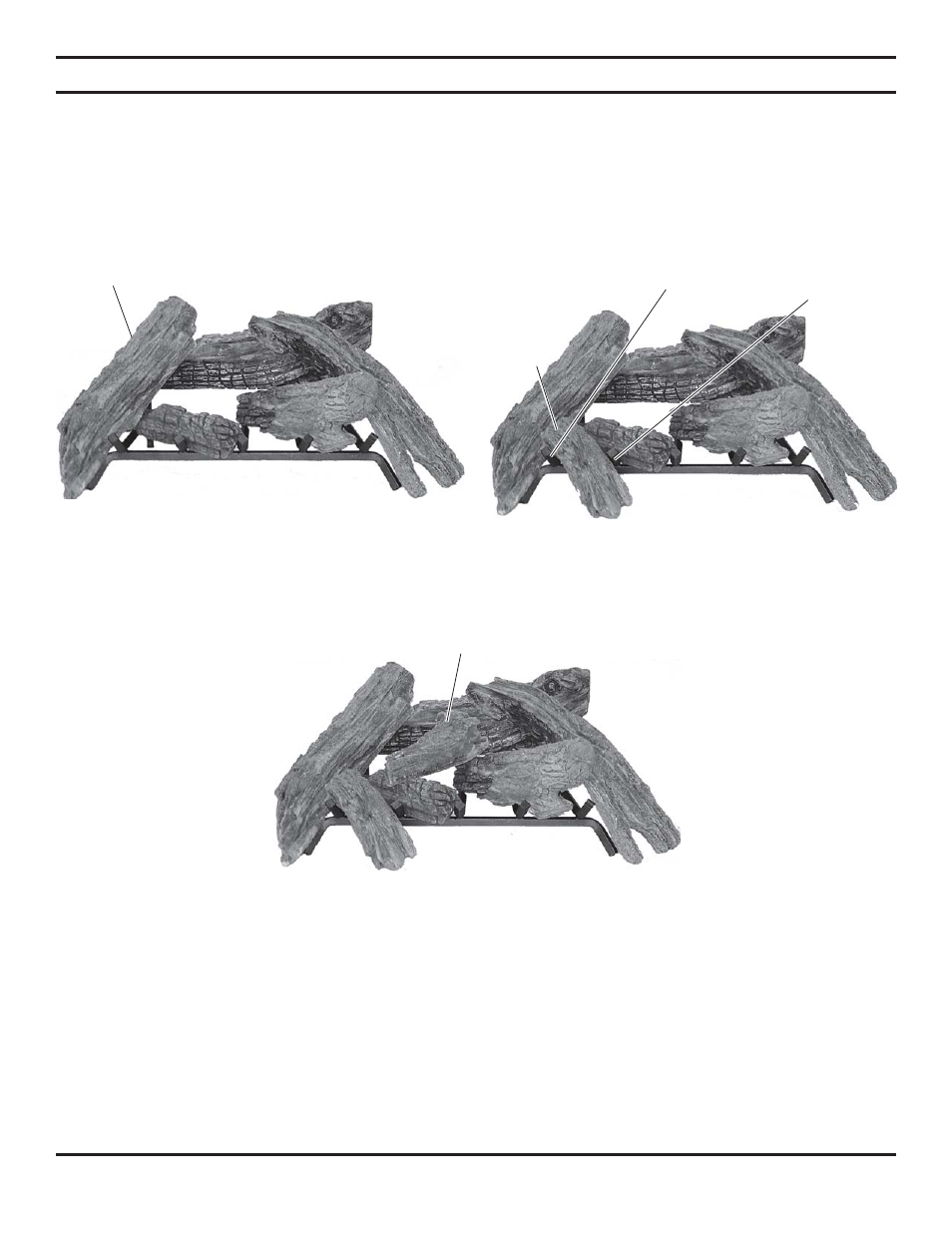

6. Rest Bottom Left Log #5 on back log #1 and to the outside of the left grate prong. See Figure 80.
7. Place end of Top Left Log #6 on bottom left log. Rest the other end between the first and second grate prongs. See

Figure 81.

8. Rest Top Center Log #7 on bottom left log #2 and back log #1. See Figure 82.

Figure 80 - Installing Bottom Front Left Log (#5)

Bottom Front Left Log (#5)

Second Grate

Prong

First

Grate Prong

Figure 81 - Resting Top Left Log (#6) on Bottom

Left Log and Back Log

Top Left

Log (#6)

Top Center Log (#7)

Figure 82 - Resting Center Top Log (#7) Bottom left

Log and Back Log
