27D8520

21

LOG PLACEMENT

VWF30 AMERICAN OAK LOGS

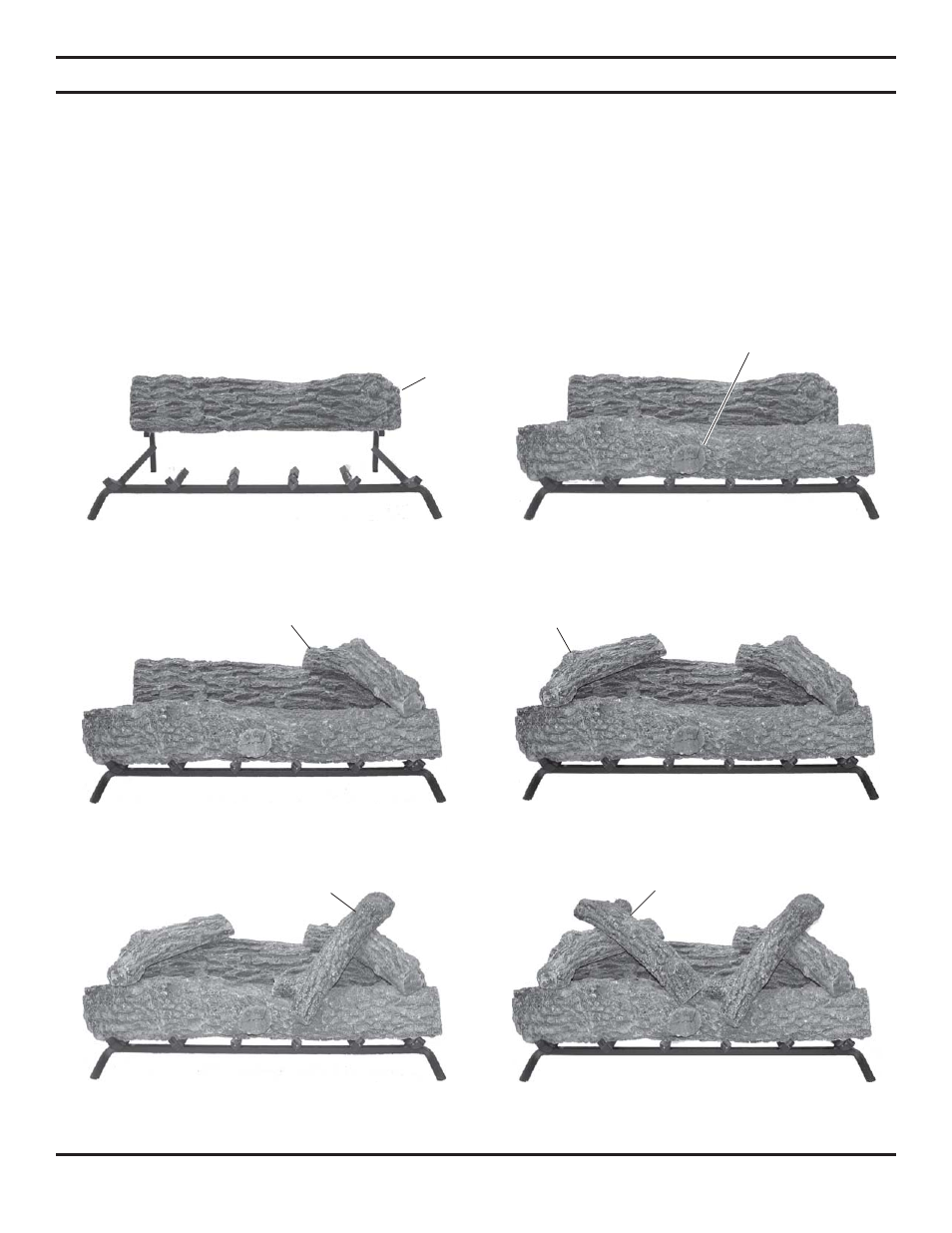

1. Place Back Log #2 on grate bars on back of grate. See Figure 58.
2. Place Front Log #1 on front of grate. See Figure 59.
3. Position Right/Left Middle Log #4 on top right of Log #1 and Log #2. See Figure 60.
4. Place Right/Left Middle Log #4 on top left of Log #1 and Log #2. See Figure 61.
5. Rest Top Right/Left Log #5 on Log # 4 and Log #1. See Figure 62.
6. Rest Top Right/Left Log #5 on Log 4 and Log #1. See Figure 63.

Figure 58 - Placing Back Log (#2) on Grate Bars

on Back of Grate.

Figure 59 - Placing Front Log (#2) on Front Grate

Back Log

(#2)

Front Log (#1)

Figure 60 - Positioning Right/Left Middle Log (#4)

Figure 61 - Positioning Left Middle Log (#4)

Right/Left Middle

Log (#4)

Left Middle Log (#4)

Figure 62 - Positioning Top Right/Left Log (#5)

Figure 63 - Positioning Top Right/Left Log (#5)

Top Right Log (#5)

Top Left Log (#5)

NOTE: Each log has an identifying
number embossed on bottom surface.

Continued
