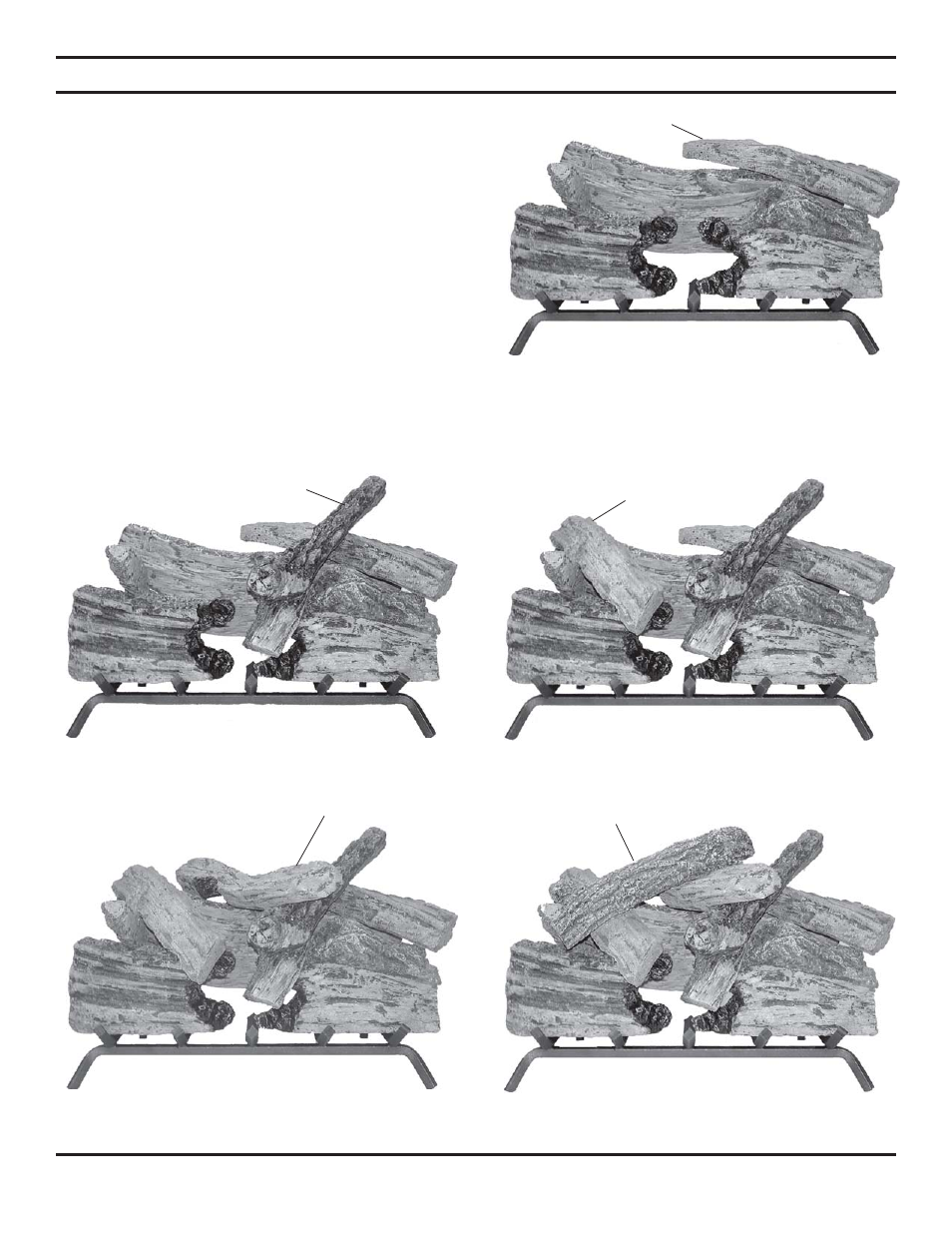

LOG PLACEMENT
MODELS VWF24 SPLIT PINE (continued)
6. Rest front end of Right Log #4 on right top of Log #1B.
The back end of Log #4 rests to right hump on Log #3.
See Figure 106.
7. Place front of Right Middle Log #5 on top right of Log
#1B. Rest back end of Log #5 on top right of Log #4.
See Figure 107.
8. Rest front of Left Log #6 just left of the middle of Log
#1A and back end of Log #6 just left of middle of Log
#3. See Figure 108.
9. Lay Top Center Log #7 across log #3 with front end
resting on Log #5. See Figure 109.
10. Place front end of Top Left Log #8 on Log #7. Let back
end of Log #8 rest on Log #6. See Figure 110.
Right Log (#4)
Figure 106 - Installing Right Log (#4)
Left Log (#6)
Figure 108 - Installing Left Log (#6) Figure 107 - Installing Right Middle Log (#5)
Right Middle Log (#5)
Top Left Log (#8)
Figure 110 - Installing Top Left Log (#8)
Top Center Log (#7)
Figure 109 - Installing Top Center Log (#7)
