The manifold pressure for propane is 10" WC.
The manifold pressure for natural is 4"WC.
The minimum inlet gas supply pressure is 4" WC for natural and 10" WC for LP.
The maximum inlet gas supply pressure for this log set is 10" WC for natural and 13" WC for LP.

Nominal Rates (BTU/Hr)

VWF18N/P 60,000

VWF24N 70,000

VWF30N

80,000

VWF36N 80,000

VWF24P 60,000

VWF30P 60,000

VWF36P 60,000

Note: Actual performance, fl ame height, BTU/Hr will vary with specifi c installation, gas pressure,
shutoff valve position (fully open), valve type, and fi rebox draft conditions.

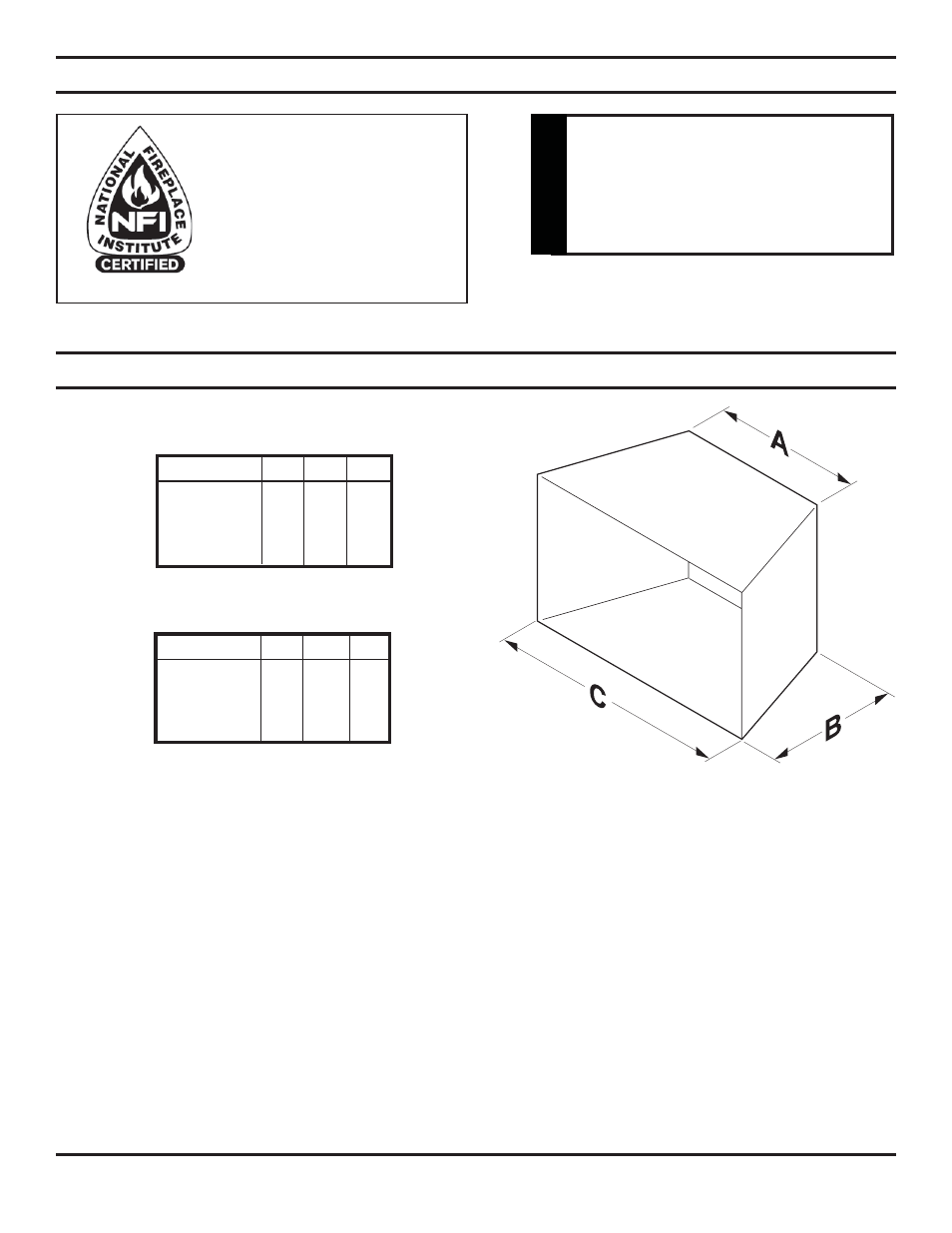

Figure 1 - Minimum Hearth Dimensions

MINIMUM HEARTH DIMENSIONS

PRODUCT SPECIFICATIONS

www.nfi certifi ed.org

We suggest that our gas hearth
products be installed and
serviced by professionals who
are certifi ed in the U.S. by the
National Fireplace Institute

®

(NFI) as Gas Specialists.

SAFETY INFORMATION

Never connect unit to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.

W

ARNING

MANUAL CONTROL

Model

A

B

C

VWF18 21"

13

1

/

2

" 24"

VWF24 27"

13

1

/

2

" 30"

VWF30 33"

13

1

/

2

" 36"

VWF36 39"

13

1

/

2

" 42"

MILLI-VOLT CONTROL*

Model

A

B

C

VWF18 25"

13

1

/

2

" 28"

VWF24 31"

13

1

/

2

" 34"

VWF30 37"

13

1

/

2

" 40"

VWF36 43"

13

1

/

2

" 46"

*NOTE: Use the above chart
for SRO and WP Manual
Control Logs.
