27D8520 19
LOG PLACEMENT
VWF18 AMERICAN OAK LOGS
1. Place Back Log #2 on grate bars on back of grate. See Figure 46.
2. Place Front Log #1 on front of grate. See Figure 47.
3. Position Right/Left Middle Log #4 on top right of Log #1 and Log #2. See Figure 48.
4. Place Right/Left Middle Log #4 on top left of Log #1 and Log #2. See Figure 49.
5. Rest Top Right/Left Log #7 on Log # 4 and Log #1. See Figure 50.
6. Rest Top Right/Left Log #7 on Log #4 and Log #1. See Figure 51.

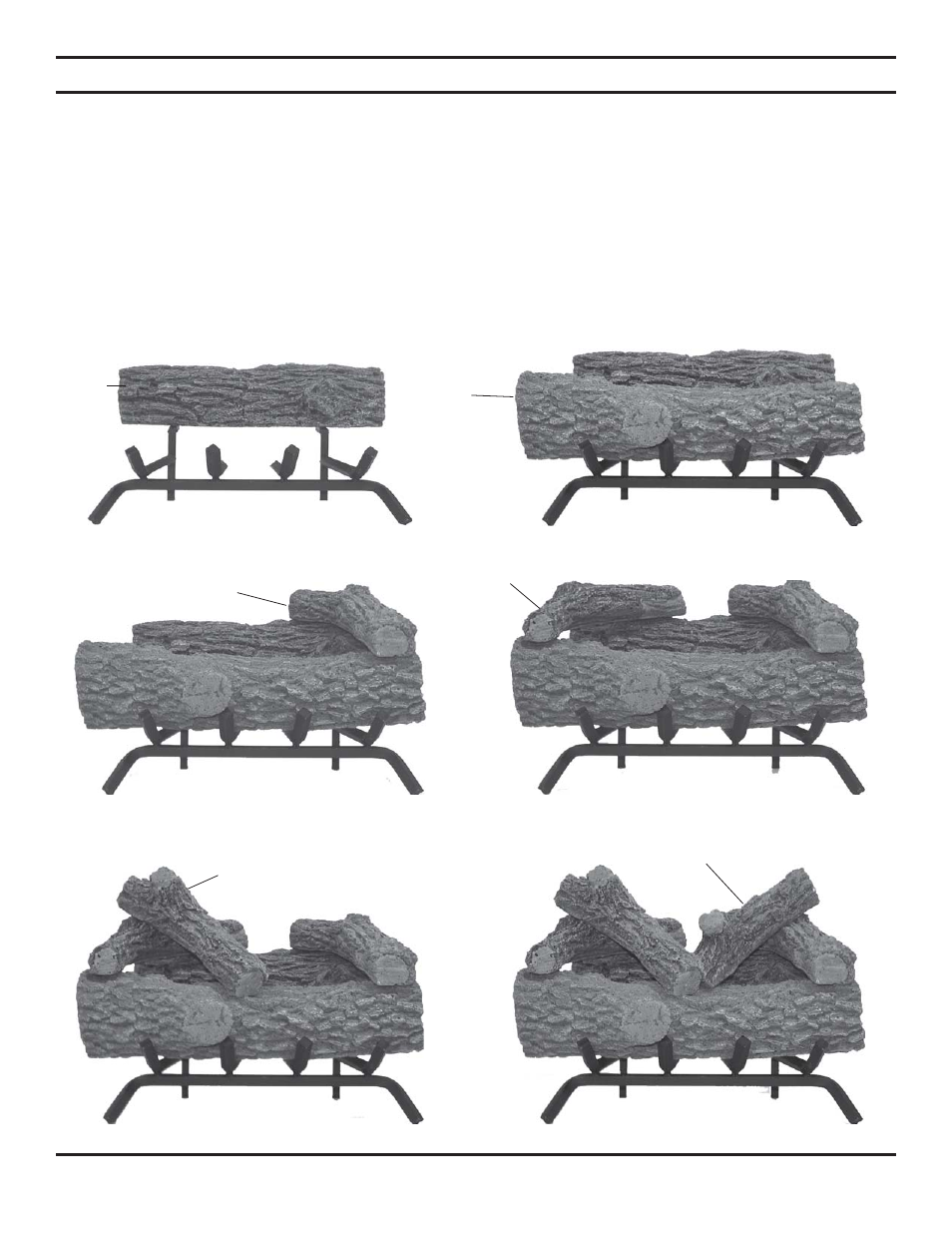

Figure 46 - Placing Back Log (#2) on Grate
Bars in Back of Grate
Back
Log
(#2)
Figure 47 - Placing Front Log (#1) on Front of Grate
Front Log
(#1)
Figure 48 - Positioning Right/Left Middle Log
(#4)
Figure 49 - Positioning Right/Left Middle Log (#4)
Figure 51 - Positioning Top Right/Left Log (#7) Figure 50 - Positioning Top Right/Left Log (#7)
Right Middle Log (#4)
Right/Left
Middle
Log (#4)
Top Right/Left Log (#7)
Top Right/Left Log (#7)
NOTE: Each log has an identifying
number embossed on bottom surface.
