LOG PLACEMENT
VWF24 AMERICAN OAK LOGS
1. Place Back Log #2 on grate bars on back of grate. See Figure 52.
2. Place Front Log #1 on front of grate. See Figure 53.
3. Position Right Log #3 on top right of Log #1 and Log #2. See Figure 54.
4. Place Right/Left Log #4 on top left of Log #1 and Log #2. See Figure 55.
5. Rest Right/Left Log #4 on Log # 3 and Log #1. See Figure 56.
6. Rest Top Left Log #6 on Log #4 and Log #1. See Figure 57.

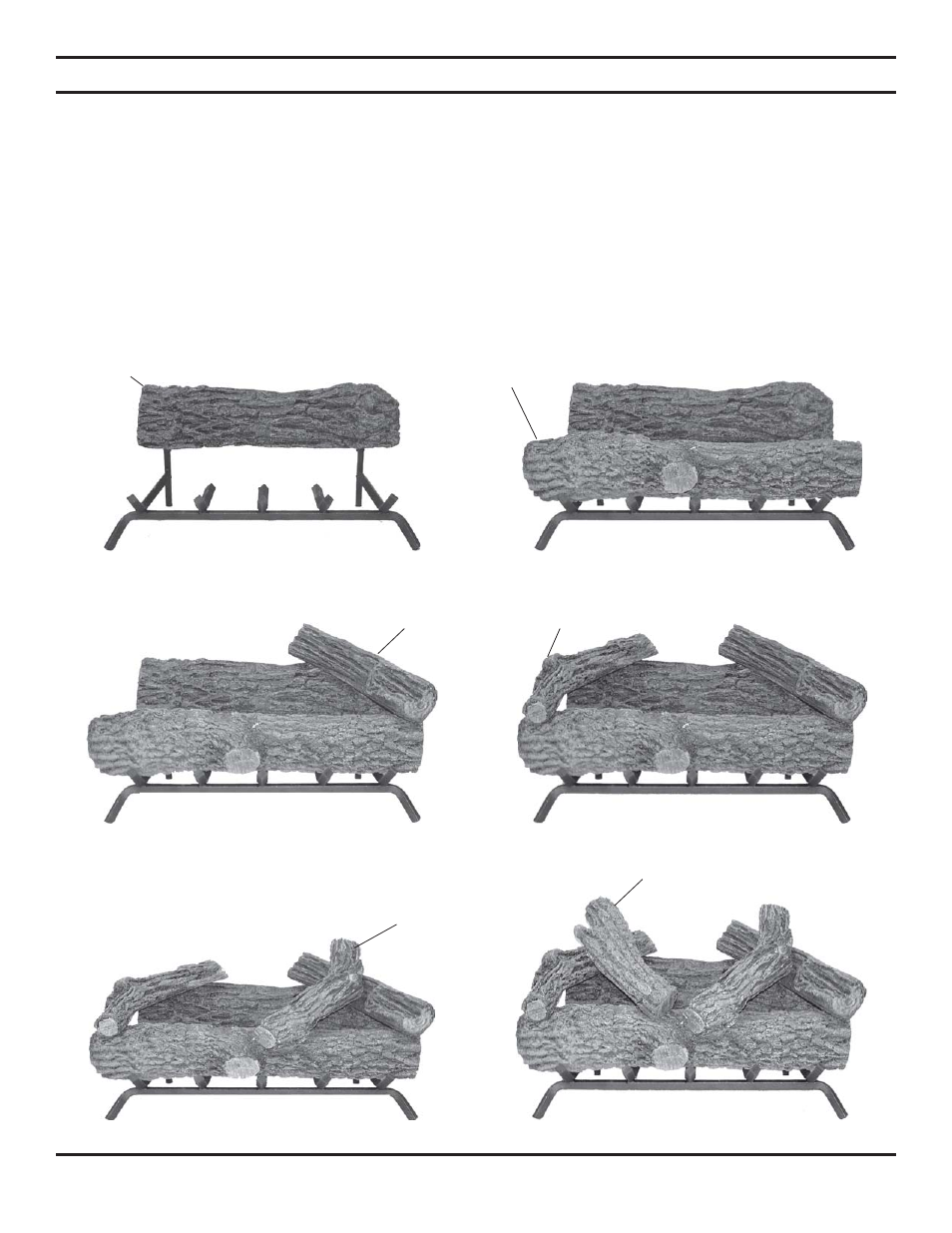

Figure 52 - Placing Back Log (#2) on Grate Bars in
Back of Grate
Back Log (#2)
Figure 53 - Placing Front Log (#1) on Front of
Grate
Front Log (#1)
Figure 54 - Positioning Right Log (#3) Figure 55 - Positioning Right/Left Log (#4)
Figure 56 - Positioning Right/Left Log (#4) Figure 57 - Positioning Top Left Log (#6)
Right Log (#3) Right/Left Log (#4)
Right/Left
Log (#4)
Top Left Log
(#6)
NOTE: Each log has an identifying
number embossed on bottom surface.
