27D8520

13

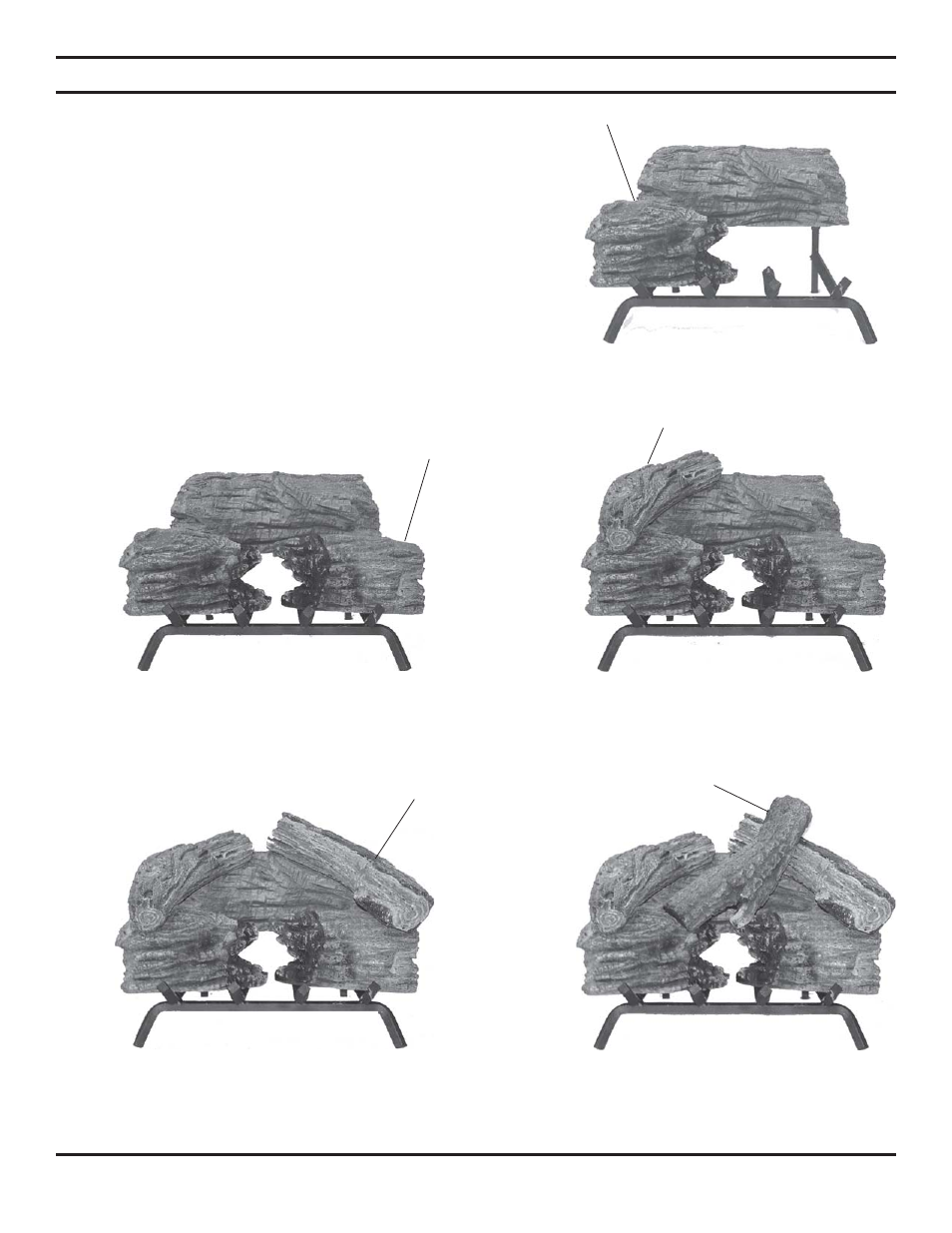

3. Place front left log #2 on the front of the grate and to the

left. See Figure 13.

4. Place front right log #3 on the front of the grate and to the

right. See Figure 14.

NOTE: Allow 2" between the back log and the two
front logs.

5. Install left side middle log #4 as shown. See Figure 15.
6. Install right side middle log (#5). See Figure 16.
7. Install right top log #5 as shown. See Figure 17.

Front Left Log (#2)

Figure 13 - Placing Front Left Log (#2) on Grate

Figure 14 - Placing Front Right Log (#3)

Figure 15 - Placing Left Middle Log (#4)

Figure 16 - Installing Right Side Middle Log (#5)

and Left Top Log (#7)

Front Right Log (#3)

Left Side Middle Log (#4)

Right Side Middle Log (#5)

Right Top Log (#6)

Figure 17 - Installing Right Top Log (#6)

LOG PLACEMENT
