LOG PLACEMENT
VWF30 MASSIVE OAK LOGS (continued)
3. Place front left log #2 on the front of the grate and to the left.
See Figure 27.
4. Place front right log #3 on the front of the grate and to the
right. See Figure 28.
NOTE: Allow 2" between the back log and the two
front logs.
5. Install left middle log #4 as shown. See Figure 29.
6. Install right middle log #5 as shown. See Figure 30.
7. Install right top log #6 as shown. See Figure 31.
8. Install left top log #7 as shown. See Figure 32.
9. Install top crossover log #8 as shown. See Figure 33.
Front Left Log (#2)

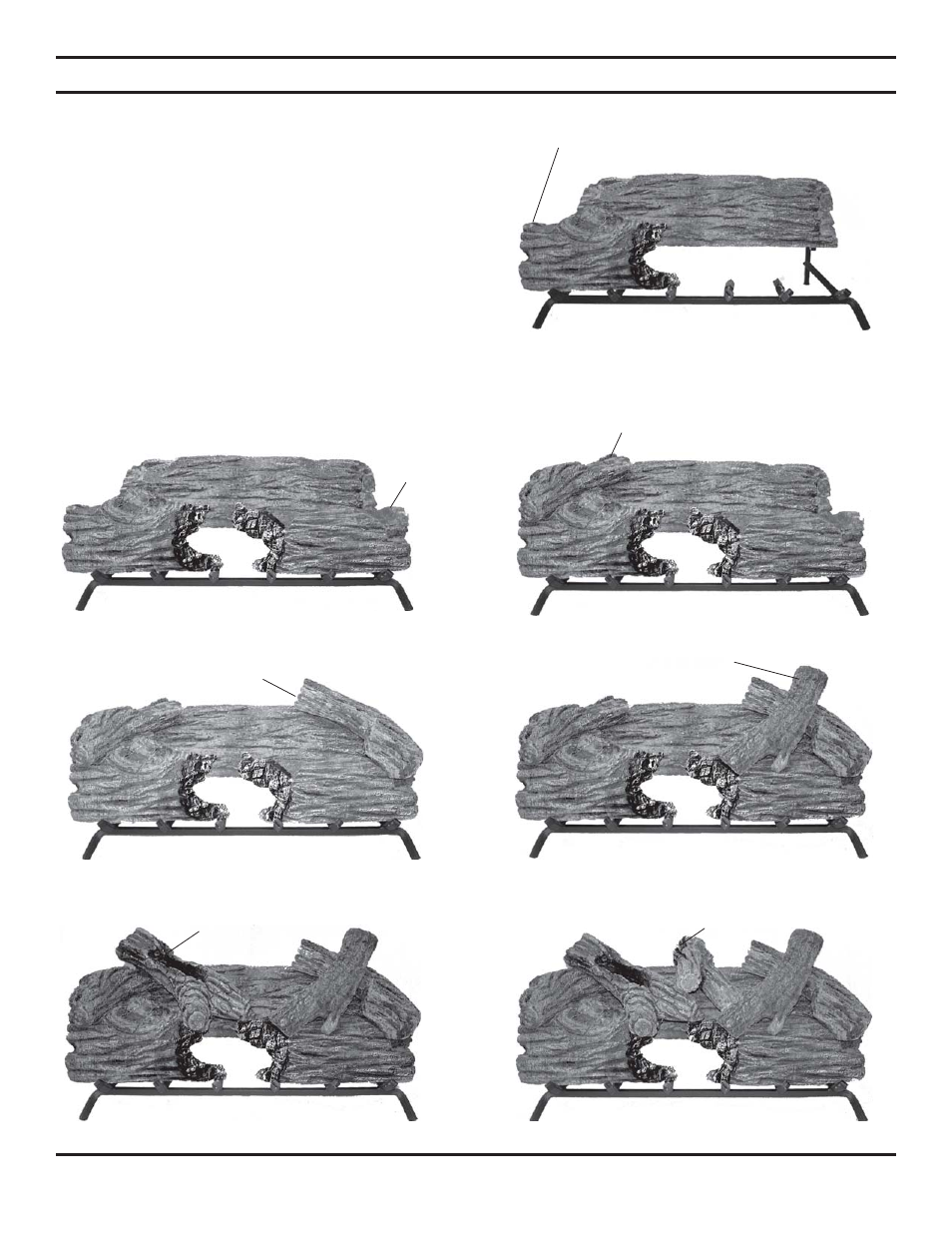

Figure 27 - Placing Front Left Log (#2) on Grate
Figure 28 - Placing Front Right Log (#3) Figure 29 - Placing Left Middle Log (#4)
Figure 30 - Installing Right Middle Log (#5) Figure 31 - Installing Right Top Log (#6)
Figure 32 - Installing Left Top Log (#7) Figure 33 - Installing Top Crossover Log (#8)
Front Right
Log (#3)
Left Middle Log (#4)
Right Middle Log (#5)
Right Top Log (#6)
Left Top Log (#7) Top Crossover Log (#8)
