27D8520

39

LOG PLACEMENT

MODEL VWF30/24WP WEATHERED PINE LOG (continued)

6. Place Top Left Log #5 behind Rear Log #1 on the notch on rear left of grate stand. See Figure 134.
7. Place Mid Front Log #6 on grate between center and middle left grate bars. Fit notch on back of log on the cross

grate bar. See Figure 135.

8. Place wide end of Top Center Log #7 on Rear Log #1. Rest narrow end of Top Center Log #7 to the left of center grate

bar barely touching the Mid Log #6. See Figure 136.

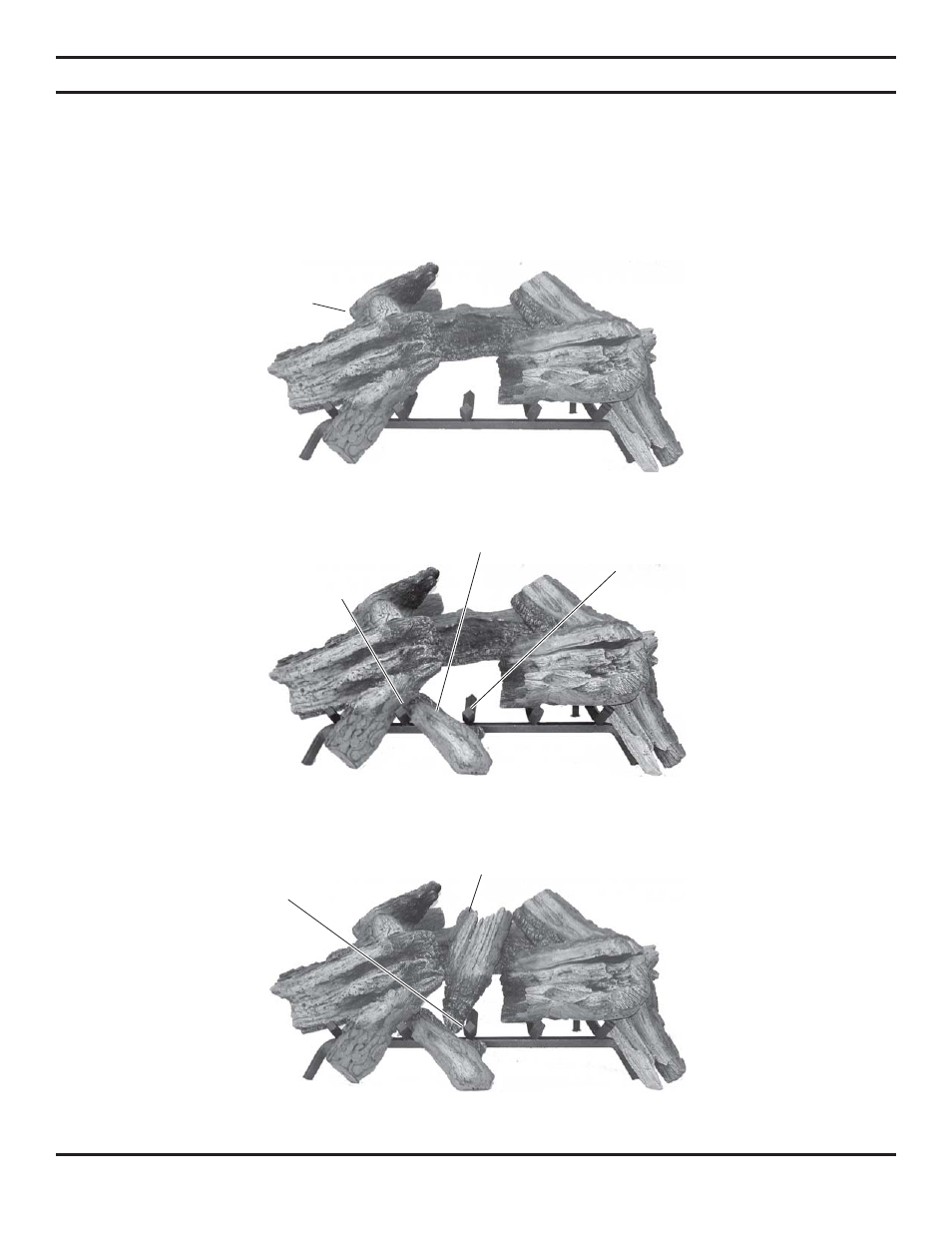

Figure 134 - Placing Top Left Log (#5) behind Rear Log

Top Left Log (#5)

Mid Front Log (#6)

Figure 135 - Placing Mid Front Log (#6) on Grate Between Center and Middle Left Grate Bars.

Figure 136 - Placing Top Center Log (#7) on Rear Log

Center Grate Bar

Middle Left

Grate Bar

Top Center Log (#7)

Center Grate Bar
