28 27D8520

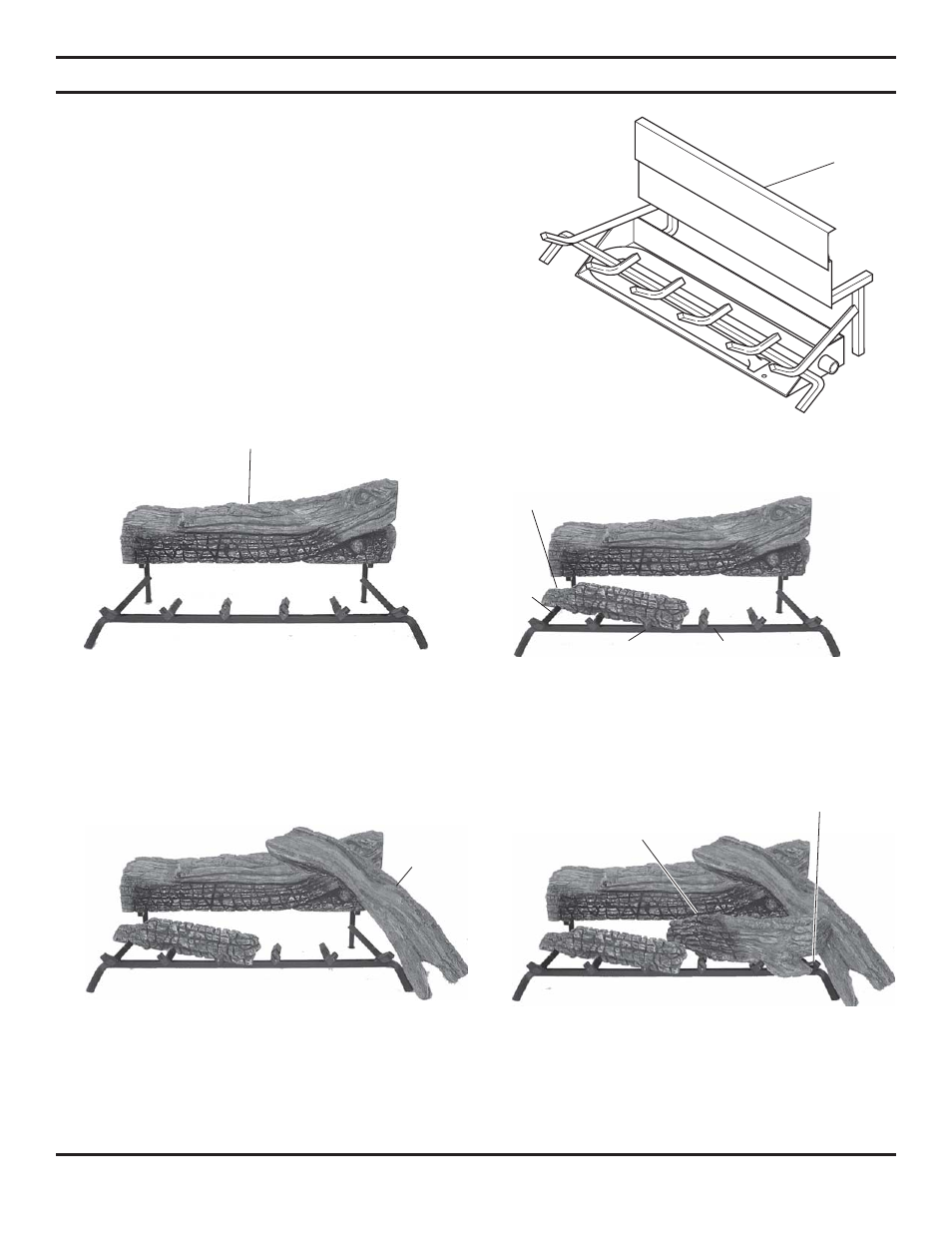

LOG PLACEMENT
MODELS VWF36/30 SPLIT RIVER OAK
1. Slide shield plate down back of burner pan. See
Figure 83.
2. Place Back Log #1 on back of grate. See Figure 84.
3. Place Front Left Log #2 in front of back log on left arm
of grate. Rest end of bottom left log between third and
fourth prong of grate. See Figure 85.
4. Place end of Bottom Right Log #3 on cutout of back log
#1. Rest other end of right bottom log to the outside
of right grate prong. See Figure 86.
5. Rest right end of Top Right Log #4 on bottom right log.
See Figure 87.
Continued
Shield
Plate
Figure 83 - Sliding Shield Plate Down
Back of Burner Pan
Figure 84 - Placing Rear Log (#1) on Back of Grate
Rear Log (#1)
Figure 85 - Placing Front Left Log (#2) on
Left Arm of Grate
Front Left Log (#2)
Left
Arm of
Grate
Third Prong
Fourth Prong
Figure 86 - Placing Bottom Right (#3) Log on
Grate
Bottom
Right Log
(#3)
Figure 87 - Resting Top Right Log (#4) on
Bottom Left Log
Top Right Log (#4) Left Grate Prong
