38 27D8520
LOG PLACEMENT

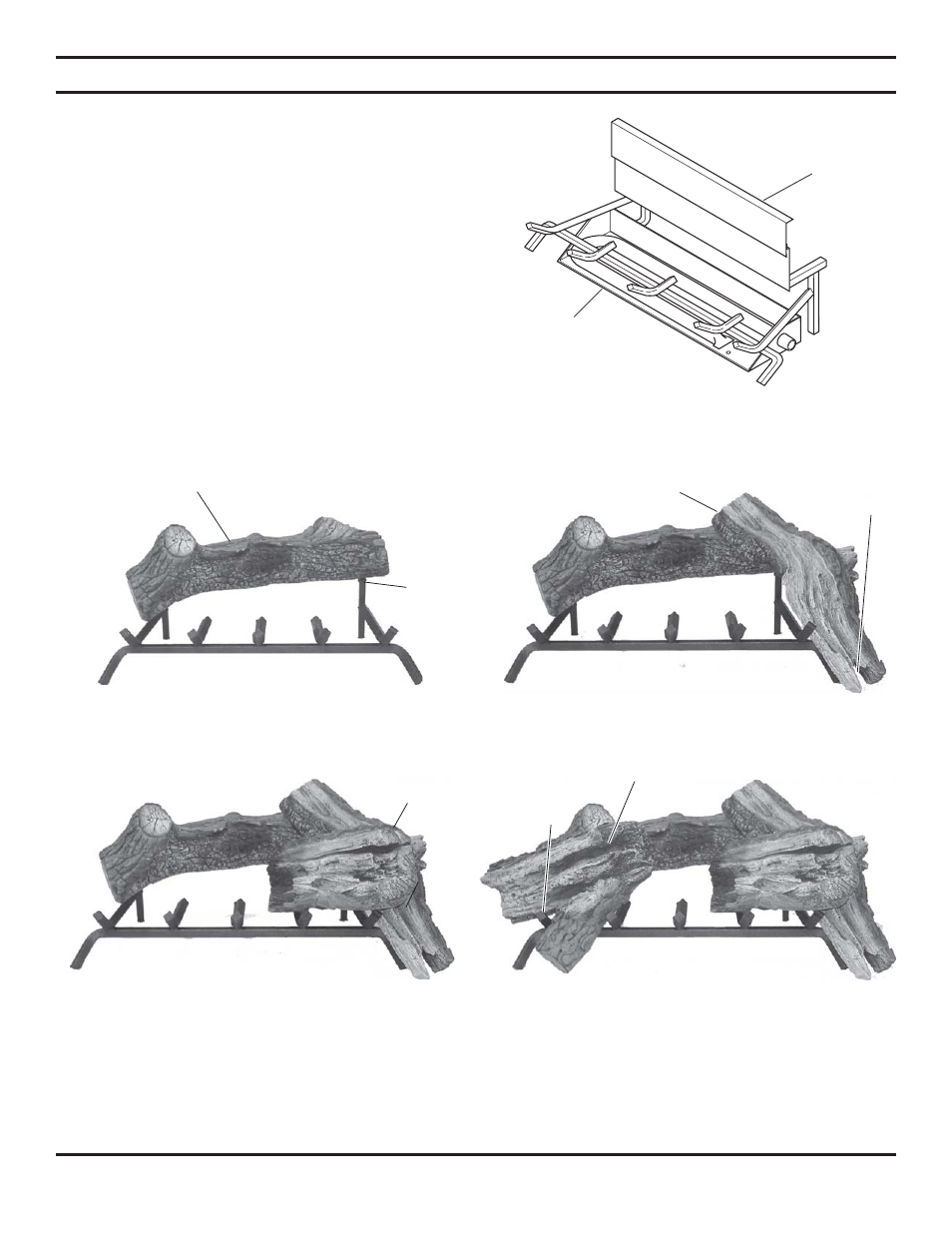

Figure 129 - Sliding Shield Plate Down Back of
Burner Pan
Burner
Pan
Shield
Plate
MODEL VWF30/24WP WEATHERED PINE LOG
1. Slide shield plate down back of burner pan. See Figure
129.
2. Place Rear Log #1 on back of grate. Left side should fit
on grate in front of rear stand. Right side goes on the
rear stand of grate. See Figure 130.
3. Place Bottom Right Log #2 along outside of grate. Rest
end on Rear Log #1. Control knob will stick through
bottom notch of log. See Figure 131.
4. Place Top Right Log #4 on Bottom Right Log #2 resting
on grate. See Figure 132.
5. Place Bottom Left Log #3 on grate. The “V” of the log
should straddle the end grate bar. See Figure 133.
Figure 130 - Placing Rear Log #1 on Back Grate
Rear Log
Rear
Stand
of
Grate
Bottom Right Log (#2)
Top Right
Log (#4)
Figure 131 - Placing Bottom Right Log (#2)
Figure 132 - Placing Top Right Log (#4)
Bottom Left Log (#3)
“V” Straddling
Grate Bar
Figure 133 - Straddling “V” of Bottom Left Log
(#3) on Grate Bar
Control
Knob Will
Go Here
