LOG PLACEMENT
MODELS VWF36/30 SPLIT RIVER OAK (continued)
6. Rest Bottom Left Log #5 on back log #1 and to the outside of the left grate prong. See Figure 88.
7. Place end of Top Left Log #6 on bottom left log. Rest the other end between the first and second grate prongs. See
Figure 89.
8. Rest Top Center Log #7 on bottom left log #2 and back log #1. See Figure 90.
9. Rest Right Front Log #8 on top right log #4 and front of burner pan. See Figure 91.

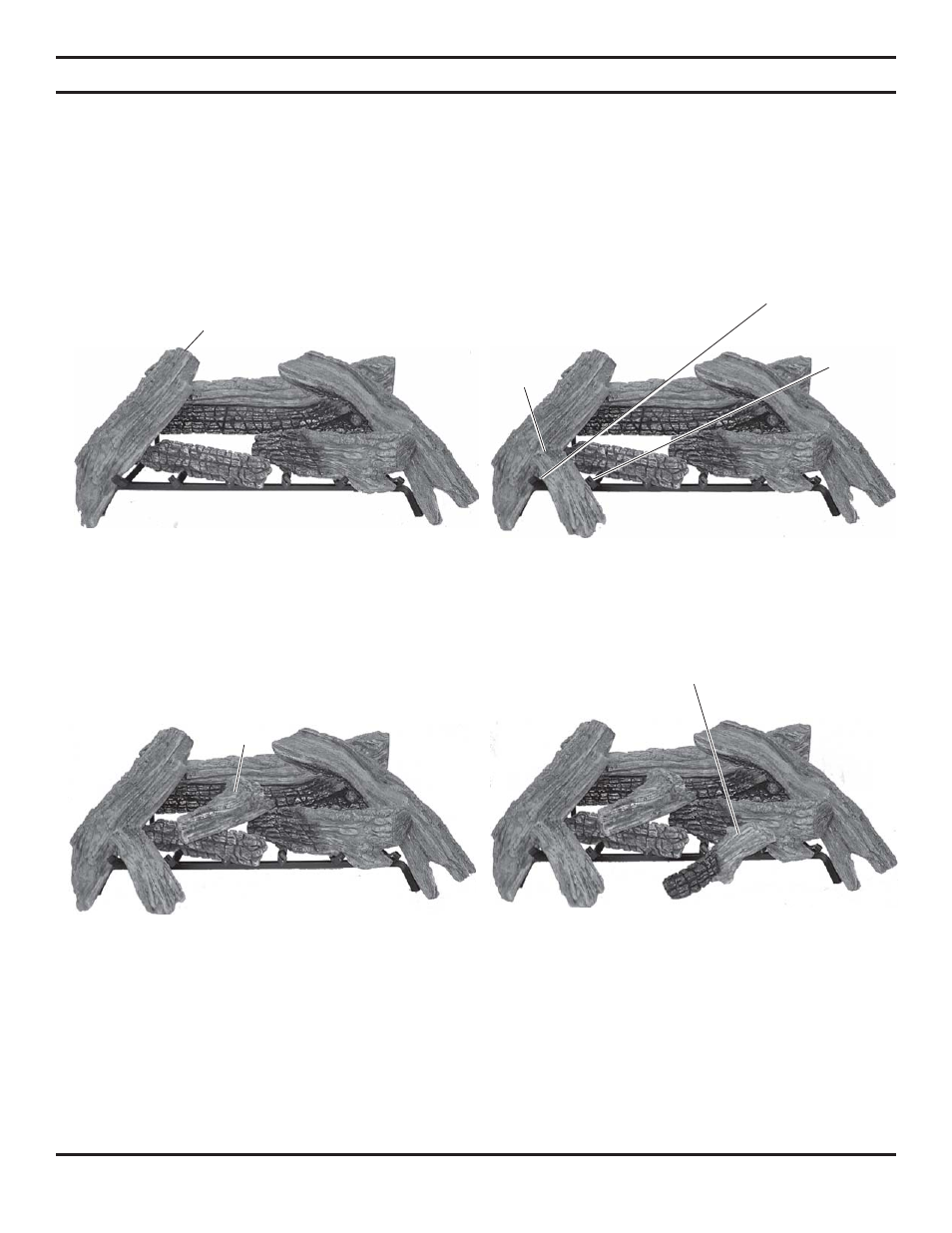

Figure 88 - Installing Bottom Front Left Log (#5)
Bottom Front Left Log (#5)
Second Grate
Prong
First Grate Prong
Figure 89 - Resting Top Left Log (#6) on Bottom
Left Log and Back Log
Top Left
Log (#6)
Top Center
Log (#7)
Figure 90 - Resting Center Top Log (#7) Bottom
left Log and Back Log
Figure 91 - Resting Front Right Log (#8) on Top
Right Log and Front of Burner Pan
Right Front Log
(#8)
