LOG PLACEMENT

MODELS VWF18 SPLIT PINE (continued)

6. Rest front end of Right Log #6 on right top of Log #1B. The back end of Log #6 rests to right hump on Log #3. See

Figure 97.

7. Place front of Right Middle Log #5 on top right of Log #4. Rest back end of Log #5 on top right of Log #3. See Figure

98.

8. Lay Top Center Log #7 across log #5 with front end resting on Log #1. See Figure 99.
9. Place front end of Top Left Log #8 on Log #7. Let back end of Log #8 rest on Log #6. See Figure 100.

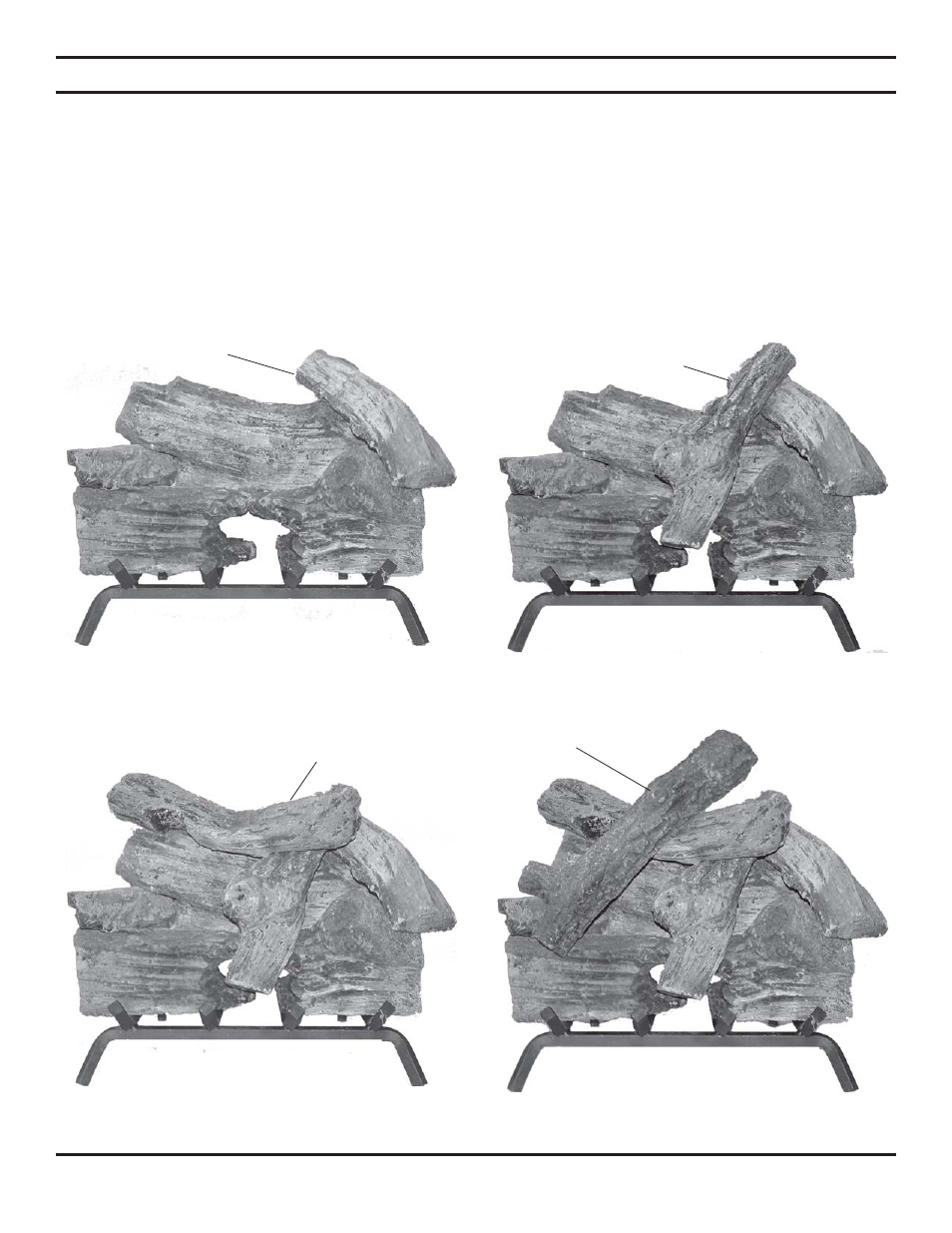

Right Log (#6)

Figure 97 - Installing Right Log (#6)

Figure 98 - Installing Right MIddle Log (#5)

Right Middle Log (#5)

Top Left Log (#8)

Figure 100 - Installing Top Left Log (#8)

Top Center Log (#7)

Figure 99 - Installing Top Center Log (#8)
