Monessen Hearth VWF30 - Manual (Page 34)

34 27D8520
LOG PLACEMENT

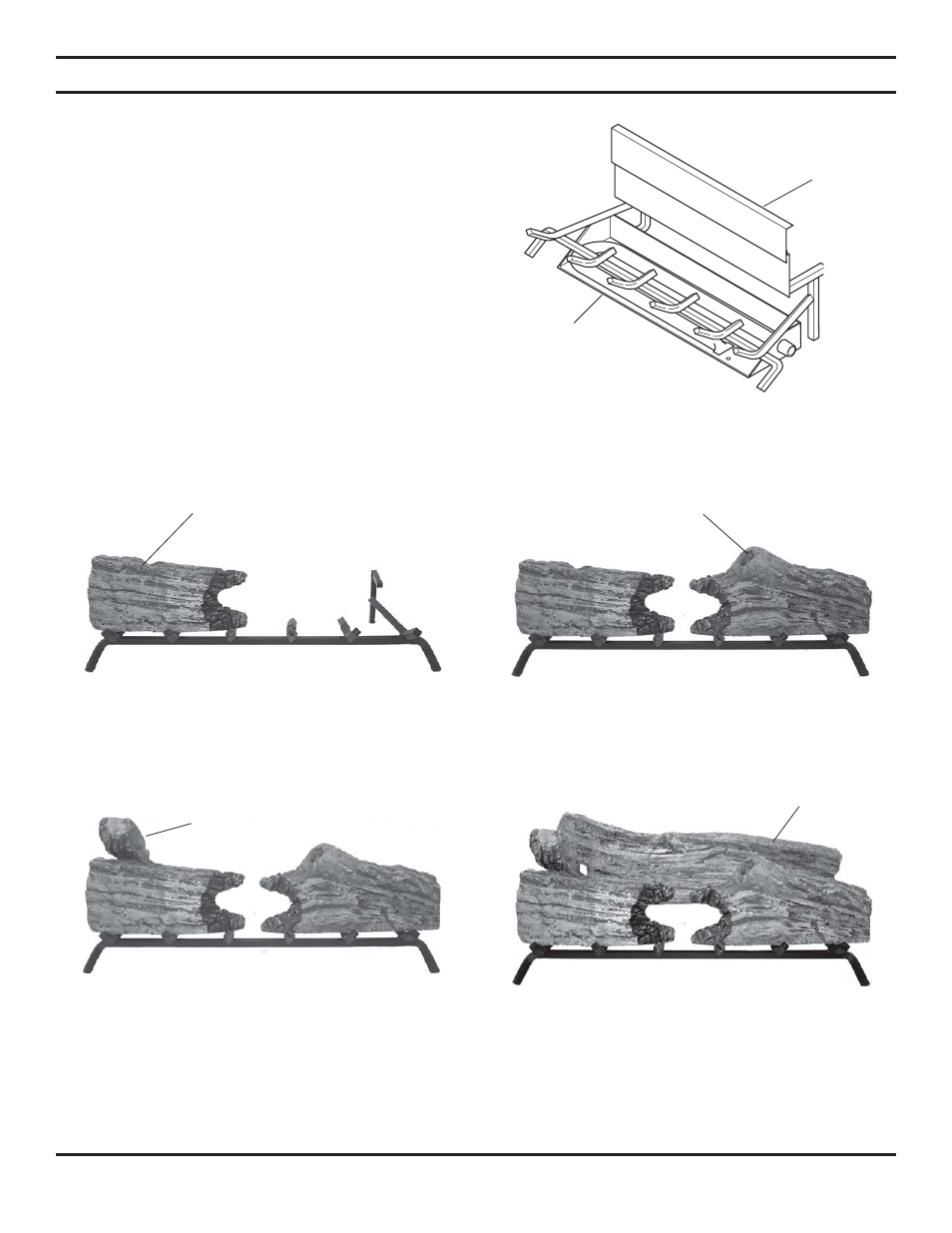

Figure 111 - Sliding Shield Plate Down Back of
Burner Pan
Burner
Pan
Shield
Plate
MODELS VWF30 SPLIT PINE
1. Slide shield plate down back of burner pan. See Figure
111.
2. Place Left Front Log #1A on front left of grate. See
Figure 112.
3. Place Right Front Log #1B on front right of the grate.
See Figure 113.
4. Place front end of Side Support Log #2 on top left of
Log #1A. Rest other end of Log #2 on rear grate bar.
See Figure 114.
5. Fit cutout in the bottom left of Rear Log #3 over the
back end of log #2. Rest right end of Log #3 on rear
grate bar. See Figure 115.
Continued
Figure 113 - Placing Right Front Log (#1B) on
Grate
Right Front Log (#1B)
Side Support Log (#2)
Figure 114 - Placing Side Support Log (#2) on Top
Left of Log #1A
Figure 115 - Installing Rear Log #3
Rear Log (#3)
Figure 112 - Placing Left Front Log #1A on Grate
Left Front Log (#1A)
