32

27D8520

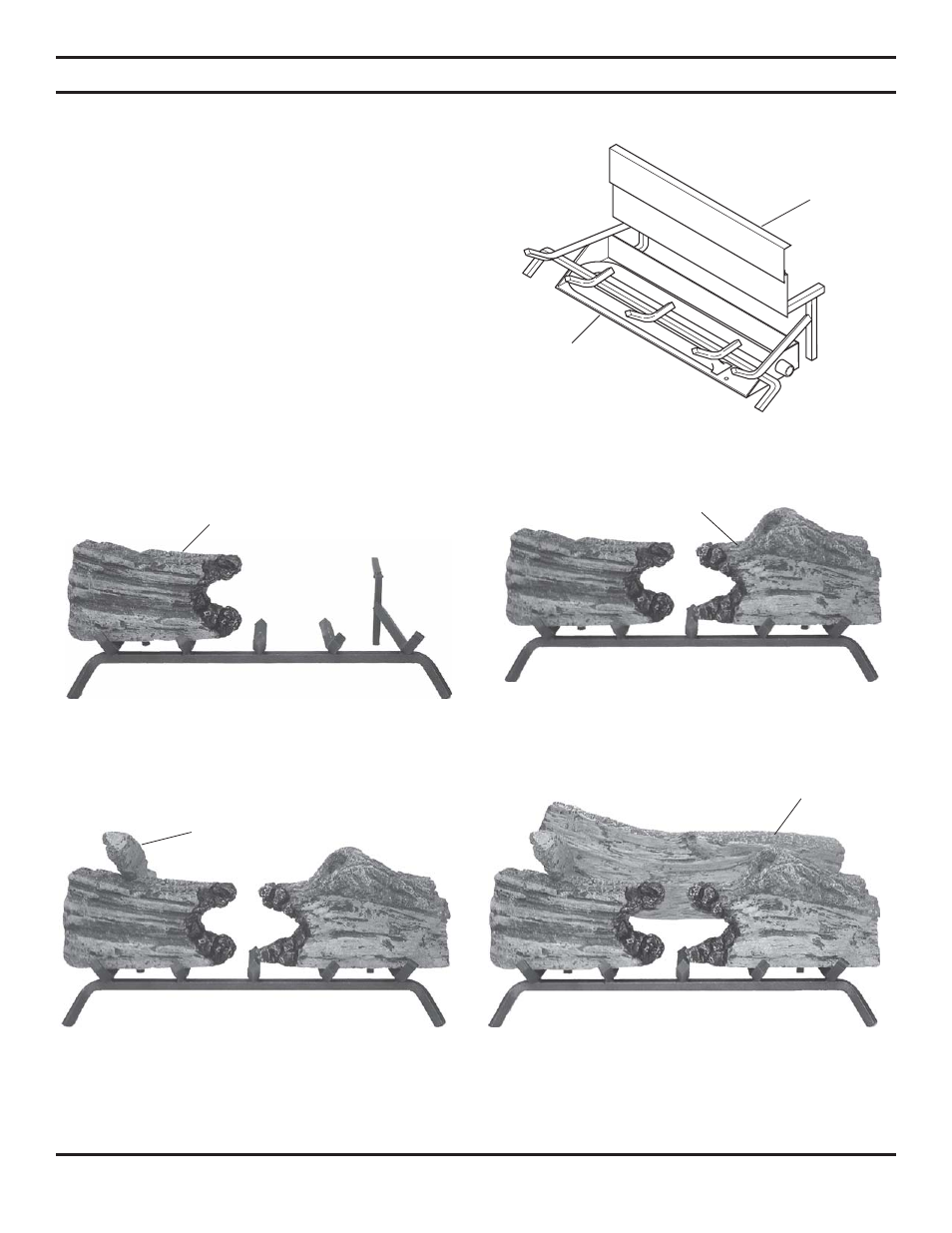

LOG PLACEMENT

MODELS VWF24 SPLIT PINE

1. Slide shield plate down back of burner pan. See Figure

101.

2. Place Left Front Log #1A on front left of grate. See

Figure 102.

3. Place Right Front Log #1B on front right of the grate.

See Figure 103.

4. Place front end of Side Support Log #2 on top left of

Log #1A. Rest other end of Log #2 on rear grate bar.
See Figure 104.

5. Fit cutout in the bottom left of Rear Log #3 over the

back end of Log #2. Rest right end of Log #3 on rear
grate bar. See Figure 105.

Continued

Figure 101 - Sliding Shield Plate Down Back of

Burner Pan

Burner

Pan

Shield

Plate

Figure 103 - Placing Right Front Log (#1B) on

grate

Right Front Log (#1B)

Side Support Log (#2)

Figure 104 - Placing Side Support Log (#2) on

Top Left of Log #1A

Figure 105 - Installing Rear Log #3

Rear Log (#3)

Figure 102 - Placing Left Front Log #1A on grate

Left Front Log (#1A)
