LOG PLACEMENT
1. Slide shield plate down back of burner pan. See
Figure 65.
2. Place Back Log #1 on grate bars on back of grate. See
Figure 65.
3. Place Middle Log #2 in front of Log #1. See Figure 65.
4. Position Right Front Log #3 on right front side of grate.
See Figure 65.
5. Position Left Front Log #4 on left front side of grate.
Make sure notch in bottom of log sits on grate prong.
See Figure 65.
6. Rest Top Right Log #5 across top right sides of Log #1
and Log #2. See Figure 65.
7. Rest Top Left Log #6 across top left side of Log #1 and
Log #2. See Figure 65.

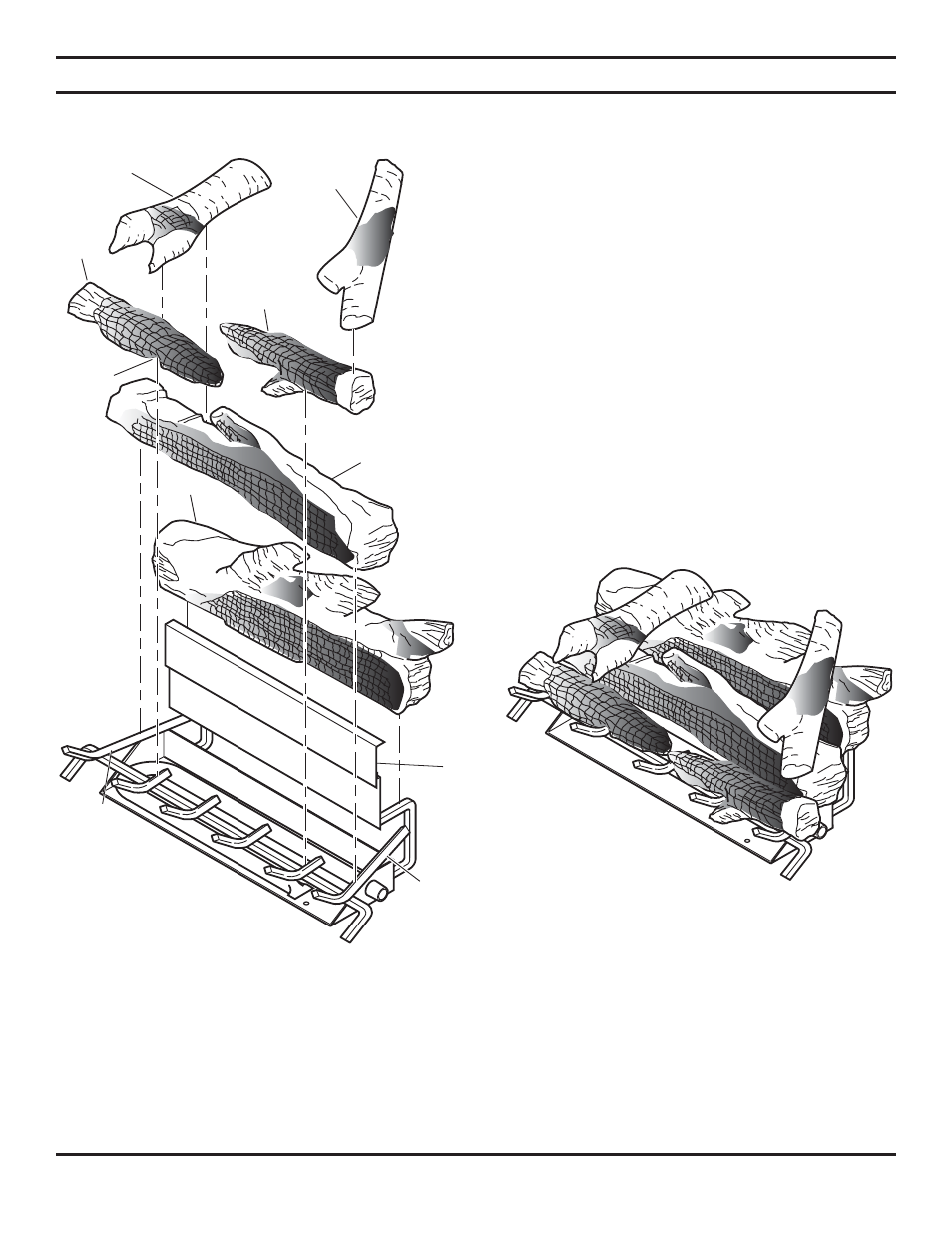

Figure 65 - VWF24B (Birch) Log Placement
Figure 66 - VWF24B (Birch) Log Placement
MODELS VWF24 B (6 Logs)
Grate
Bar
#2
#3
#4
#5
#6
#1
Grate
Prong
Notch
Shield
Plate
