4
USER INSTRUCTIONS
1. GENERAL
1.1 A competent person must carry out installation and
servicing.
1.2 In all correspondence, please quote the appliance type and
serial number, which can be found on the data badge
located on a plate under the access panel, see Diagram 2,
Installation.
1.3 Do not place curtains above the fire:
You must have 300mm (1’) clearance between the fire and
any curtains at either side.
1.4 If any cracks appear in the glass panel do not use the
appliance until the panel has been replaced.
1.5 In the unlikely event the appliance is receiving interference
from other electronic devices, the handset/Control box can
be reprogrammed. Please consult your dealer if you think
this may be the case.
1.6 If, for any reason, the flue has to be removed from the
appliance, the seals must be replaced in the inner spigot.
1.7 Do not obstruct the flue terminal in any way, i.e. by
planting flowers, trees shrubs etc in the near vicinity, or by
leaning objects up against the terminal guard.
1.8 Do not use a garden sprinkler or hose near the terminal.
1.9 This product is guaranteed for 2 years from the date of
installation, as set out in the terms and conditions of sale
between Gazco and your local Gazco dealer. Please consult
with your local Gazco dealer if you have any questions. In
all correspondence always quote the Model Number and
Serial Number.
2. LIGHTING THE STUDIO
There are two ways of lighting the Studio:
• by thermostatic remote control, see 2A
• using the fire’s touch pad, see 2B

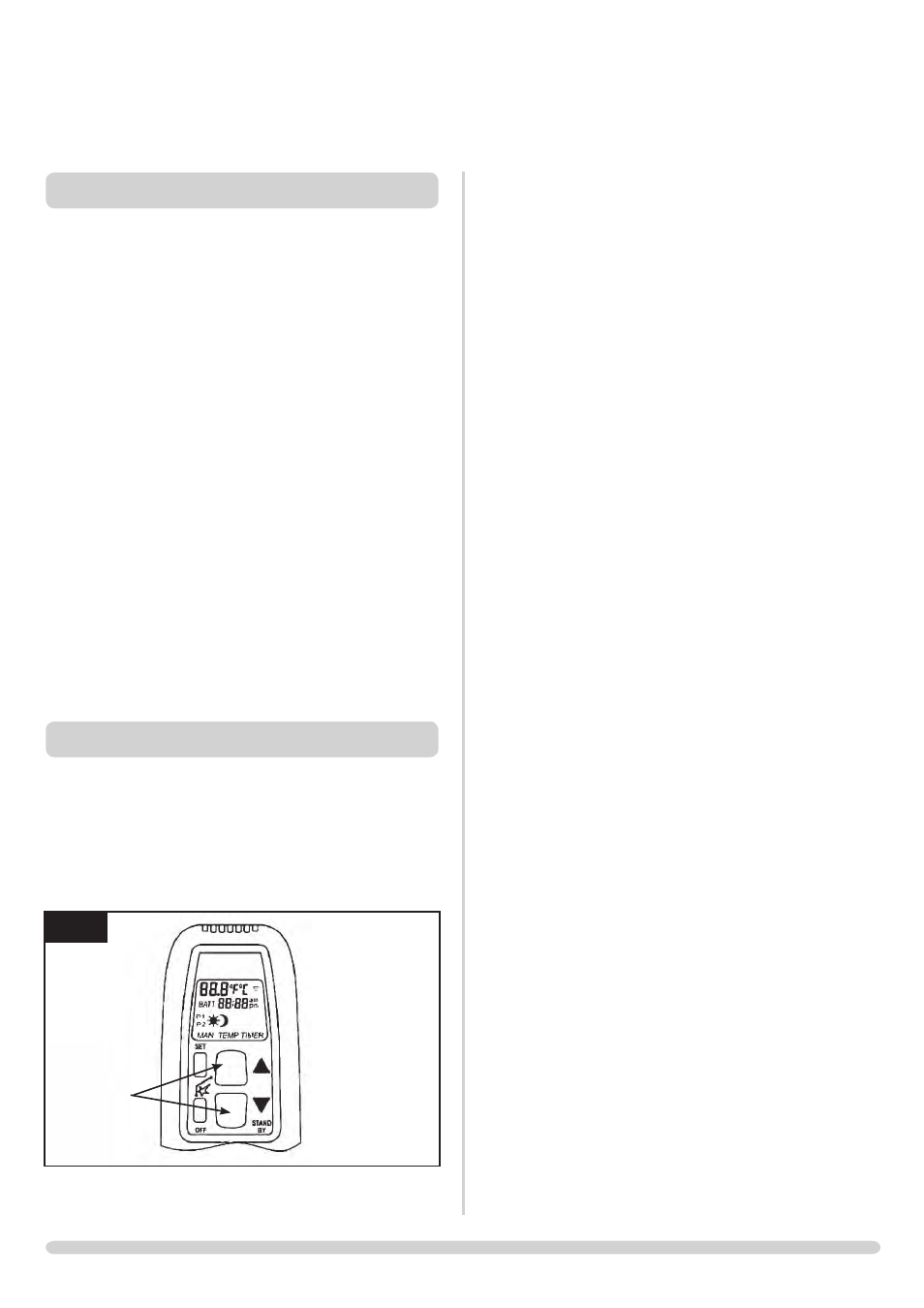

2A - THERMOSTATIC and TIMER REMOTE CONTROL
1
AR1883
Turning the Studio On
Your remote can control the gas fire from pilot ignition
through to shut down.
To turn the fire on:
• Press the OFF button and the UP button simultaneously.
You hear several short signals.
The pilot and main burner ignite and the remote is now
in Manual Mode. In 'MANUAL MODE' you can:
• turn on the main burner
• regulate the flame from high to low and back
• turn off the burner leaving just the pilot burning
In ‘TEMP MODE’ you can:
• set the room temperature so the thermostat in the
remote automatically maintains that temperature
In ‘TIMER MODE’ the fire:
• turns on and off according to the set time periods
• automatically regulates the room temperature during the
set periods
NOTE: WHEN OPERATING THE FIRE IN TEMP OR
TIMER MODE, THE PILOT REMAINS LIT AND THE FIRE
THEN AUTOMATICALLy SWITCHES ON AT
PROGRAMMED TIMES TO BRING THE ROOM TO THE
SET TEMPERATURE WHETHER OR NOT yOU ARE IN
THE ROOM.
NEVER LEAVE ANy COMBUSTIBLE MATERIALS WITHIN 1
METRE OF THE FRONT OF THE APPLIANCE.
2.1 SWITCHING BETWEEN MODES
• Press the SET button to change to Manual Operation
• Press again to change to Temperature Mode
• Keep pressing to run through all operating modes. These
are:
• MAN
• DAY TEMP
• NIGHT TEMP
• TIMER
and back to MAN
NOTE: MAN mode can also be reached by pressing
either the UP or DOWN button
2.2 MAN MODE
• Press both the UP arrow and immediately press the OFF
button to light the appliance. You hear a click as the fire
begins the ignition process, (up to 30 seconds)
• Press the OFF button to turn the appliance off
INCREASING TEMPERATURE
• Press the UP arrow once to increase flame height one
stage
• Press and hold the UP arrow to increase to maximum
DECREASING TEMPERATURE
• Press the DOWN arrow once to decrease flame height
one stage
